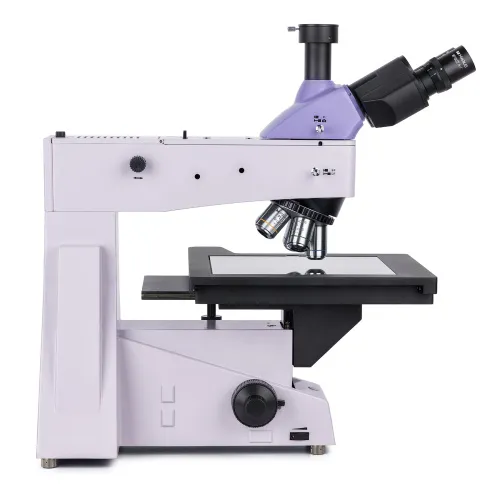

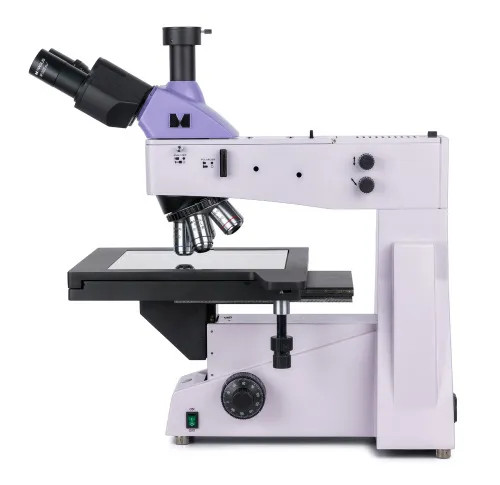

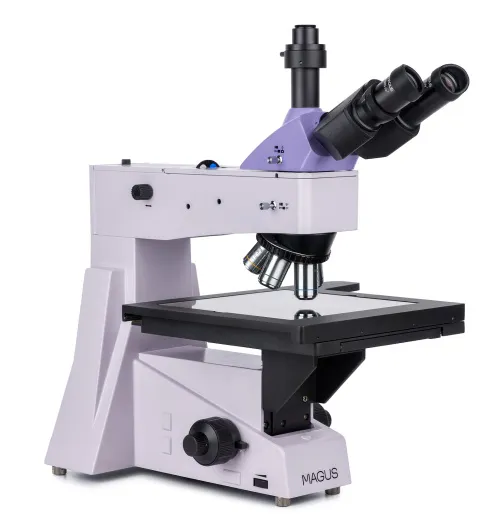

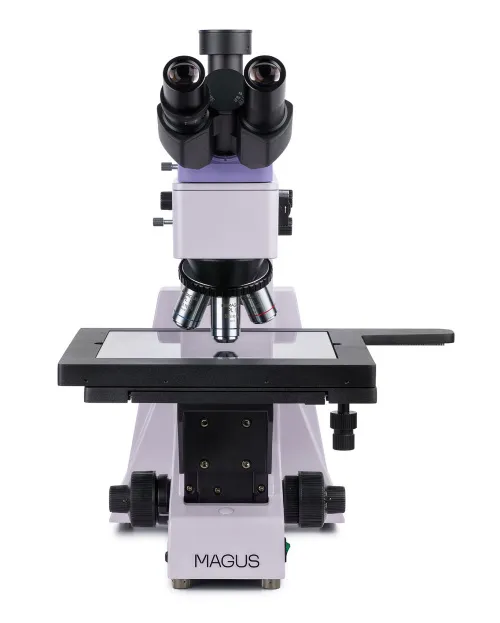

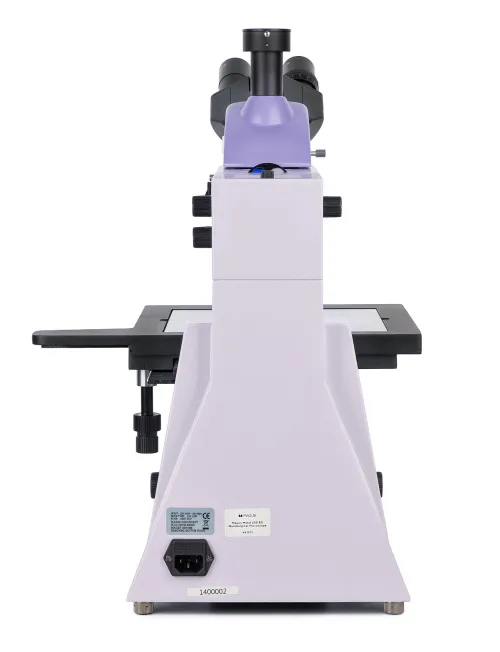

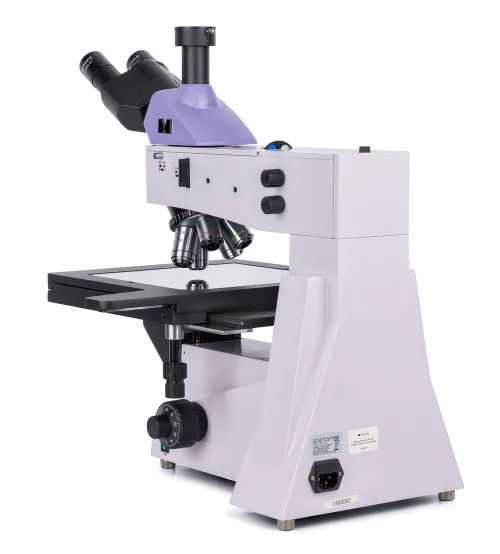

MAGUS Metal 650 BD Metallurgical Microscope
Magnification: 50–800х. Trinocular head, plan achromatic objectives for brightfield and darkfield observations, 50W halogen reflected light illuminator, fine focusing in 0.7µm, large stage
Product ID | 82901 |
Brand | MAGUS |
Warranty | 5 years |
EAN | 5905555018416 |
Package size (LxWxH) | 22.8x19.3x23.6 in |
Shipping Weight | 46.3 lb |
The MAGUS Metal 650 BD Metallurgical Microscope is suitable for observing the surfaces of photomasks, integrated circuits, printed circuit boards, and other long and wide objects. It is equipped with a large stage that can easily hold large samples, and fine focusing with a scale value 0.7µm for high-precision observations at high magnification. Brightfield, darkfield, and polarized light microscopy techniques. The microscope is suitable for quality control laboratories, research centers, and university departments.
Optics

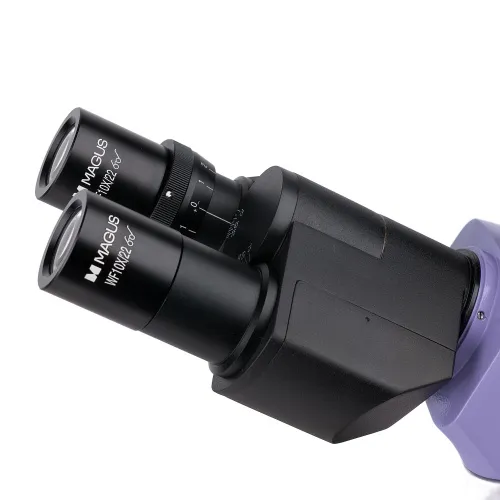

The trinocular head has a trinocular tube for mounting a digital camera. The light/camera selection knob directs the light beam onto the camera for bright well-detailed photos and video that can be displayed on the external screen. The camera is not included in the basic configuration. On the left eyepiece, there is a diopter ring for adjusting the image.

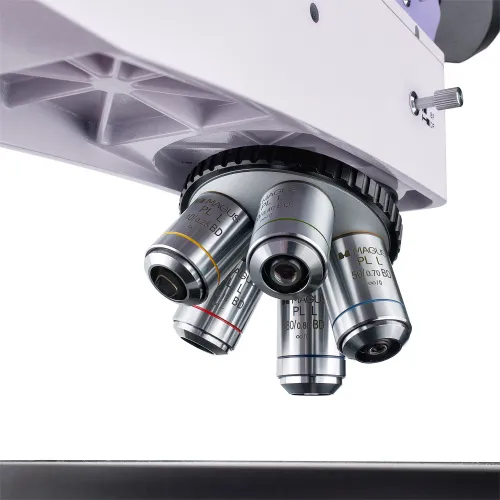

Plan achromatic objectives with the BD symbol are designed specifically for brightfield and darkfield microscopy techniques. The objectives have a long working distance. Five of them are included, one in each slot of the revolving nosepiece. Any installed objective can be quickly replaced with an optional one, if required. Infinity-corrected optics with magnification from 50x to 800x. The revolving nosepiece with objectives is oriented toward the interior – the user can see the objective inserted into the optical path.
Illumination

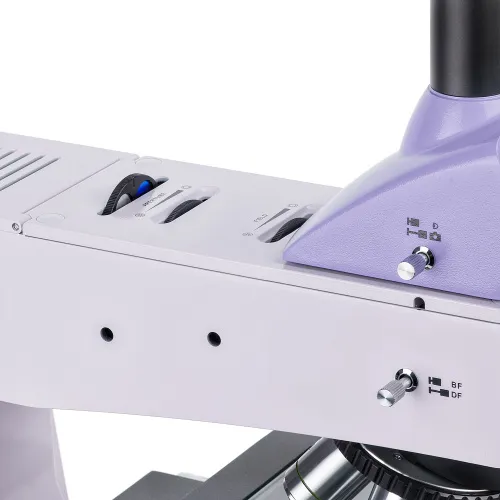

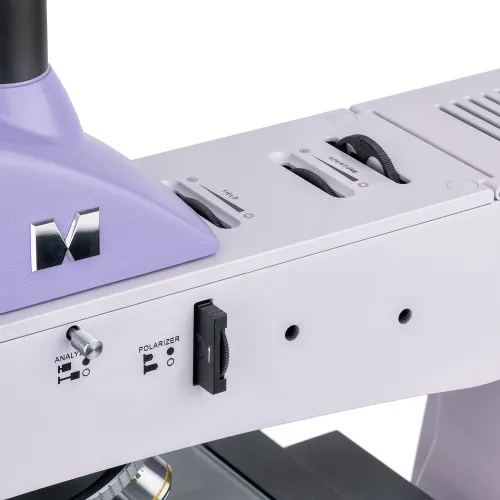

The reflected light illumination system is designed for all observations to be as well-detailed as possible regardless of the used objective and microscopy techniques. The light source is a 50W halogen bulb that creates bright, even, and warm lighting. The Köhler illumination method can be used to adjust the illumination, there are filters for color rendering, and a polarization device (built-in analyzer and removable polarizer). The light source, aperture, and field diaphragms can be centered. The illumination system also includes a darkfield device.
Stage and focusing mechanism

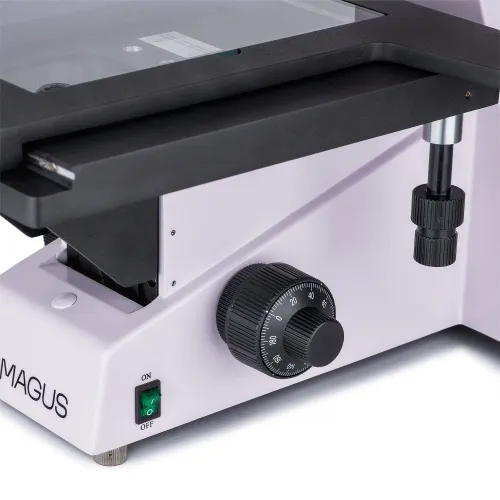

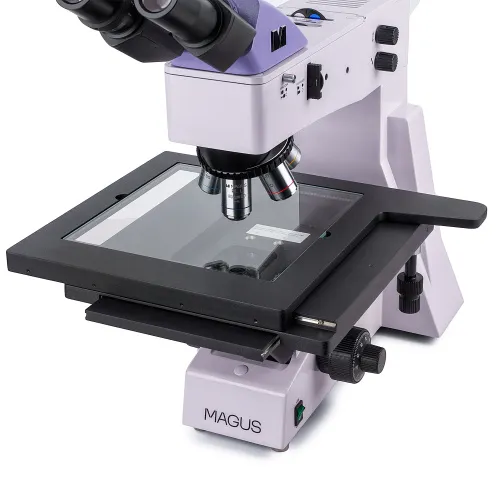

A special feature of the microscope is a large stage of 280x270mm, with a movement range of 204mm along the X and Y axes. Focusing is adjusted by rotating the coarse and fine focusing knobs. They run smoothly and confidently, and due to the fine focusing scale value, operation at high magnifications is precise. The coarse focusing has a lock knob and tension adjustment. The focusing knobs are located at the base of the microscope, and so you can take a relaxed and comfortable position. You can place your hands on the table instead of holding them in the air.
Accessories
To get the maximum out of the MAGUS Metal 650 BD microscope, get additional accessories: eyepieces, objectives with long working distance for brightfield and darkfield, calibration slides, digital cameras.
Key features:
- Precise focusing: fine focusing scale value 0.7µm; coarse focusing has a lock knob and tension adjustment
- Large stage for easy observation of long and wide objects, large range of movement of the stage along two axes
- Plan achromatic optics, trinocular head with a 100:0 and 0:100 beam splitter, trinocular tube for camera installation
- Light source, field and aperture diaphragms can be centered, Köhler illumination adjustment, polarization device, set of color filters, darkfield microscopy techniques
- Illuminator – 50W halogen bulb with 220V power supply and brightness-adjustment
- Optional accessories

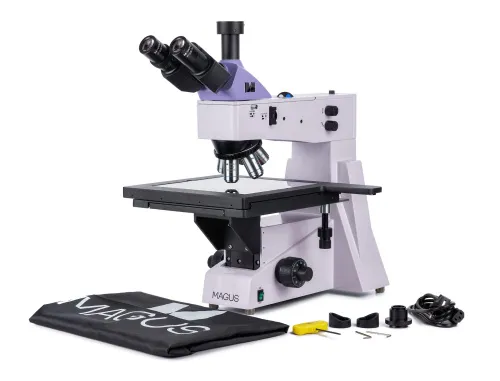

The kit includes:
- Base with a power input, reflected light illuminator, focusing mechanism, stage, and revolving nosepiece
- Trinocular head
- Infinity plan achromatic objective: PL L5x/0.12 BD WD 9.7mm
- Infinity plan achromatic objective: PL L10x/0.25 BD WD 9.3mm
- Infinity plan achromatic objective: PL L20x/0.40 BD WD 7.2mm
- Infinity plan achromatic objective: PL L50х/0,70 BD WD 2.5mm
- Infinity plan achromatic objective: PL L80x/0.80 BD WD: 0.8mm
- Eyepiece 10x/22mm with long eye relief (2 pcs.)
- C-mount adapter 1x
- Hex key wrench
- AC power cord
- Dust cover
- User manual and warranty card
Available on request:
- 10x/22mm eyepiece with a scale
- Eyepiece 12.5x/14mm (2 pcs.)
- 15x/15mm eyepiece (2 pcs.)
- 20x/12mm eyepiece (2 pcs.)
- 25x/9mm eyepiece (2 pcs.)
- Infinity plan achromatic objective: PL L40x/0.60 BD WD 3.0mm
- Infinity plan achromatic objective: PL L60x/0.70 BD WD: 1.9mm
- Infinity plan achromatic objective: PL L100х/0.85 (dry) BD WD: 0.4mm
- Digital camera
- Calibration slide
Product ID | 82901 |
Brand | MAGUS |
Warranty | 5 years |
EAN | 5905555018416 |
Package size (LxWxH) | 22.8x19.3x23.6 in |
Shipping Weight | 46.3 lb |
Type | light/optical, metallurgical |
Head | trinocular |
Nozzle | Siedentopf |
Head inclination angle | 30 ° |
Magnification, x | 50–800 basic (*optional: 50–1000/1250/1500/2000/2500) |
Eyepiece tube diameter, in | 1.2 |
Eyepieces | 10х/22mm, eye relief: 10mm (*optional: 10x/22mm with scale, 12.5x/14; 15x/15; 20x/12; 25x/9) |
Objectives | infinity plan achromatic: PL L5x/0.12 BD, PL L10x/0.25 BD, PL L20x/0.40 BD, PL L50x/0.70 BD, PL L80x/0.80 BD; parfocal distance 45mm (*option: PL L40x/0.60 BD, PL L60x/0.70 BD, PL L100x/0.85 BD (dry)) |
Revolving nosepiece | for 5 objectives |
Working distance, mm | 9.7 (5x); 9.3 (10x); 7.2 (20x); 3.0 (40x); 2.5 (50x); 1.9 (60x); 0.80 (80x); 0.40 (100x) |
Interpupillary distance, in | 1.9 — 3 |
Stage, mm | 280x270 |
Stage moving range, mm | 204/204 |
Stage features | two-axis mechanical |
Eyepiece diopter adjustment, diopters | ±5 (on the left tube) |
Diaphragm | built-in aperture and field |
Focus | coaxial, coarse focusing (30mm, 13.1mm/circle, with a lock knob and tension adjusting knob) and fine focusing (0.0007mm) |
Illumination | halogen |
Brightness adjustment | ✓ |
Power supply | 220±22V, 50Hz, AC network |
Light source type | 12V/50W |
Light filters | green, blue, yellow, matt |
Operating temperature range, °F | 41...+95 |
Additional | built-in analyzer and removable polarizer, darkfield device |
User level | experienced users, professionals |
Assembly and installation difficulty level | complicated |
Application | metallurgical |
Illumination location | upper |
Research method | bright field, dark field, polarization |
Pouch/case/bag in set | dust cover |
