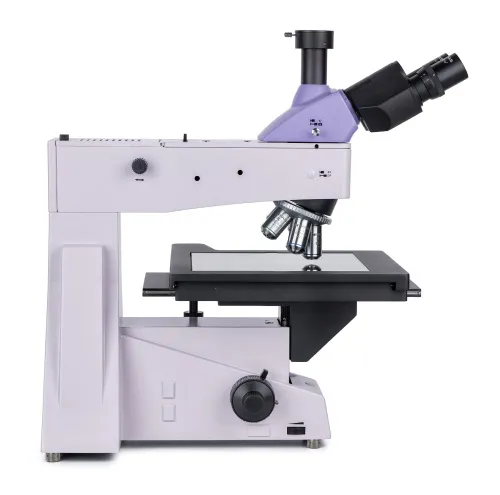

Magnification: 50–800х. Trinocular head, plan achromatic objectives, 30W halogen reflected light illuminator, fine focusing scale value 0.7µm, large stage

Trinocular
The microscope head is a core element of the microscope that you look through to see a magnified sample
50–800 basic (*optional: 50–1000/1250/1500/2000/2500)
How much the size of a sample increases when you observe it through a microscope
Metallurgical
Application and use of the microscope
Availability

Product ID 82900
Brand MAGUS
Warranty 5 years
EAN 5905555018386
Package size (LxWxH) 22.8x19.3x23.6 in
Shipping Weight 46.3 lb
Description

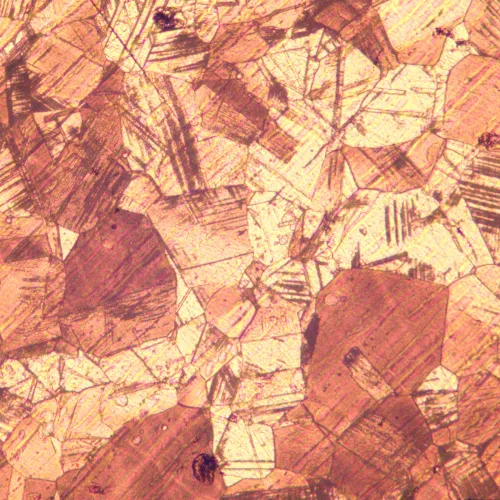

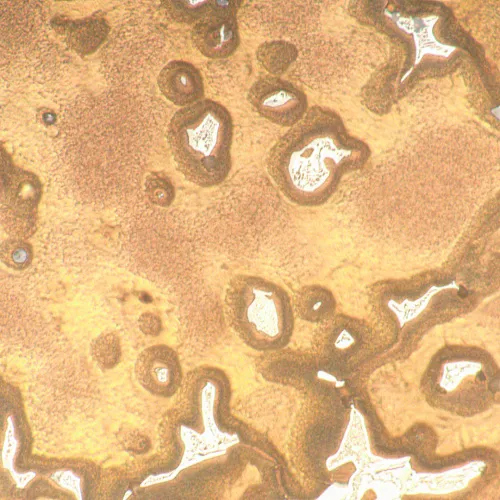

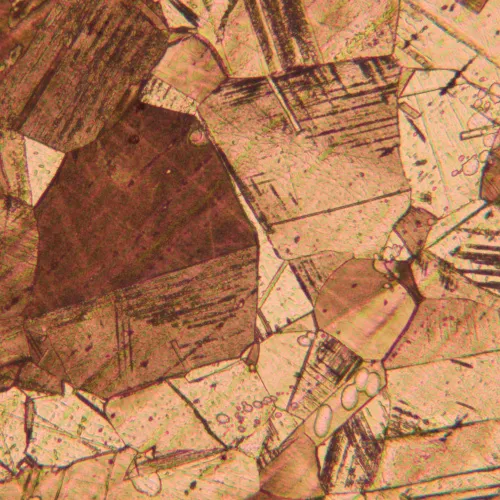

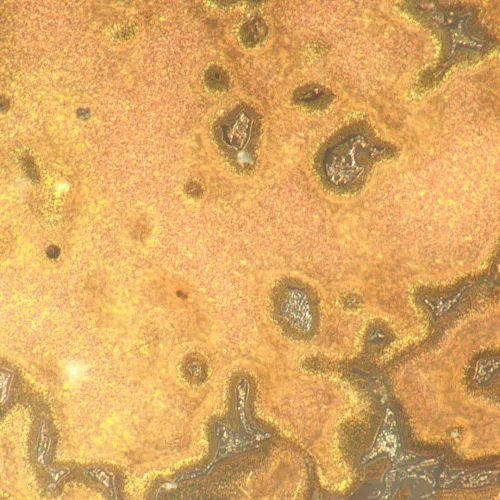

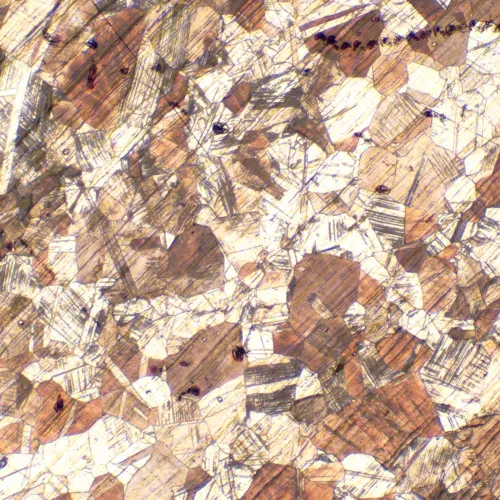

The MAGUS Metal 650 Metallurgical Microscope has a large stage where you can place photomasks, printed circuit boards, integrated circuits, and other long and wide specimens to be examined in reflected light. Brightfield and polarized light observations are possible. The microscope provides high precision focusing. The fine focusing scale value of 0.7µm makes it easy to work at high magnifications. It is used for conducting research in industrial plants and teaching engineering students.

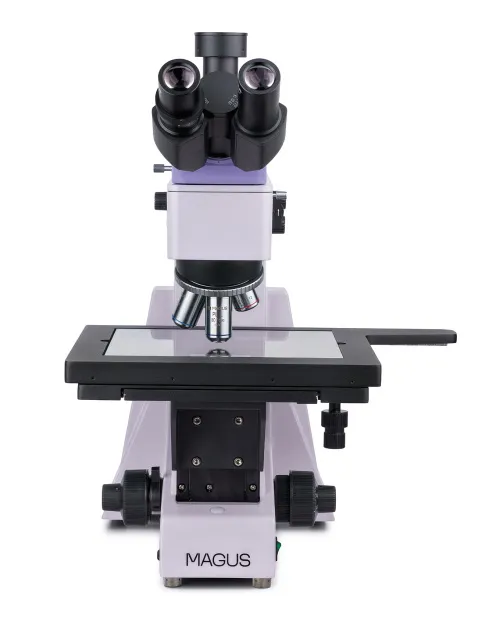

Optics

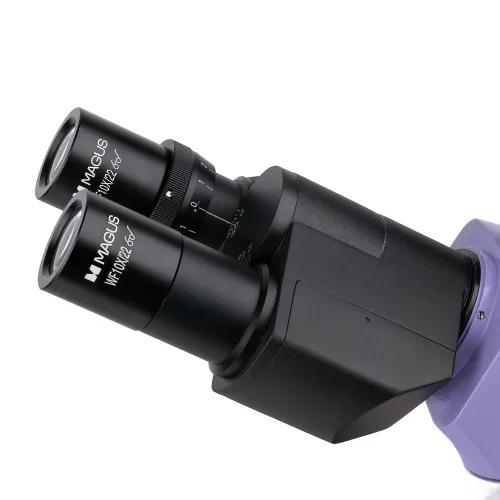

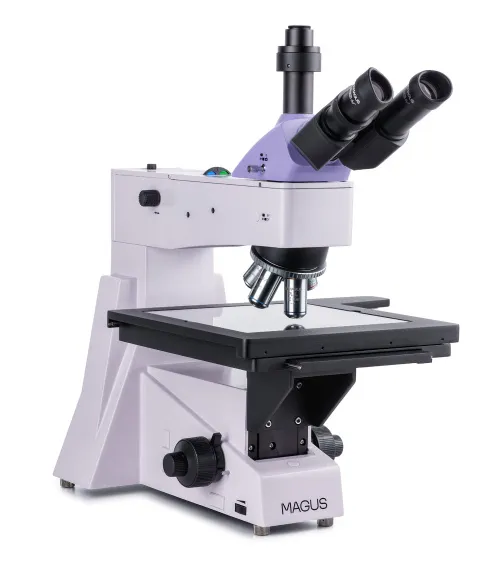

Infinity plan achromatic optics deliver sharp well-detailed images. The microscope head is trinocular, 30° inclined, and a trinocular tube for mounting a digital camera. The camera (not included) captures the photos and videos of the study and outputs the microscope image to an external screen. There is a two-position-beamsplitter: 100:0 and 0:100. The light beam is directed into the eyepieces or to the camera. There is a diopter adjustment ring on the left tube.

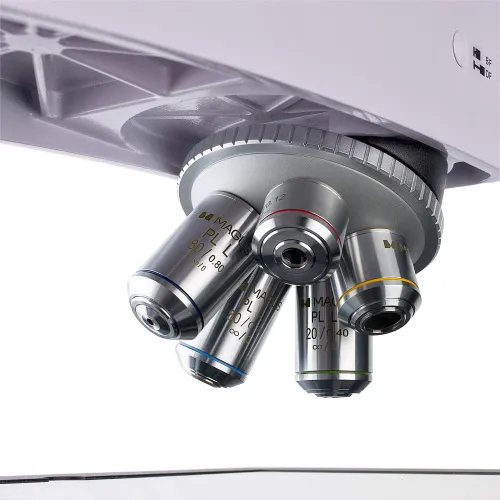

You can install 5 objectives in the revolving nosepiece – all of them are included in the package. To achieve higher magnification, you can install optional objectives instead of the basic ones. In the basic configuration, the microscope provides magnification in a range of 50 to 800x. The revolving nosepiece with objectives is oriented toward the interior – the user can see the objective inserted into the optical path.

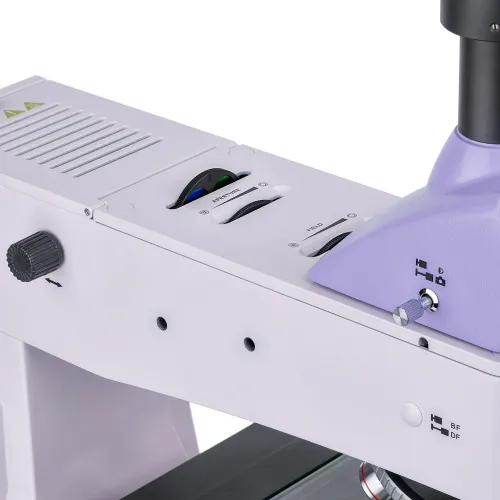

Illumination

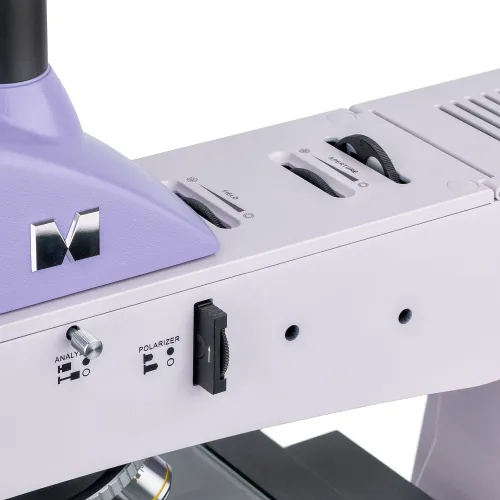

The reflected light illumination system combines three centering elements: light source, aperture, and field diaphragm. The 30W halogen illuminator emits warm light, and so working with the microscope for long periods of time does not make your eyes fatigue. The brightness of the illumination is adjustable, it is possible to set the Köhler illumination. The reflected light illumination system also comes with a polarization device: a built-in analyzer and a detachable rotating polarizer. There is a set of color filters.

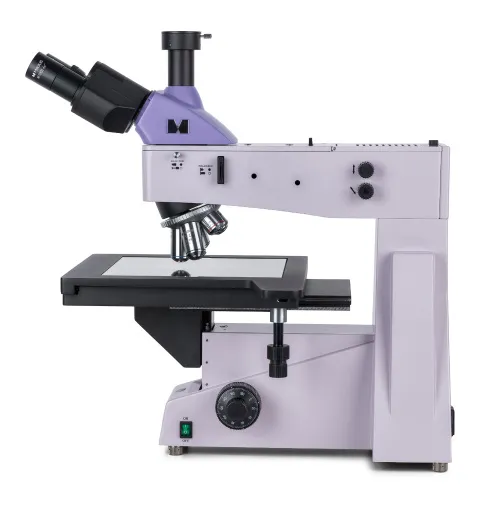

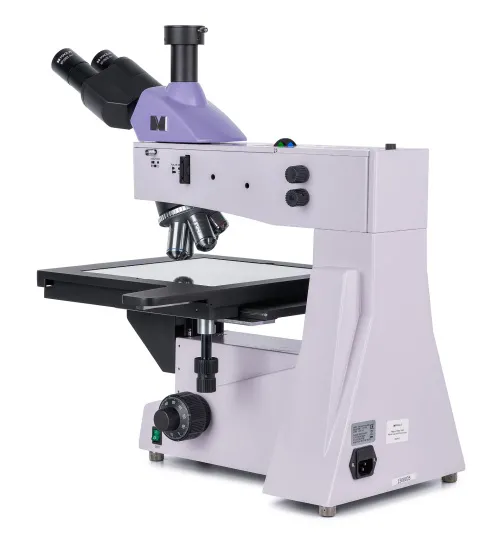

Stage and focusing mechanism

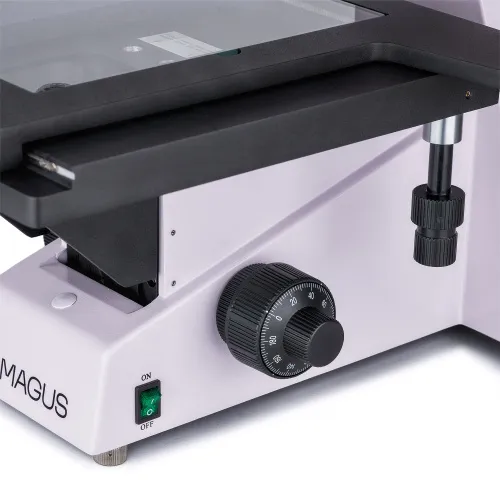

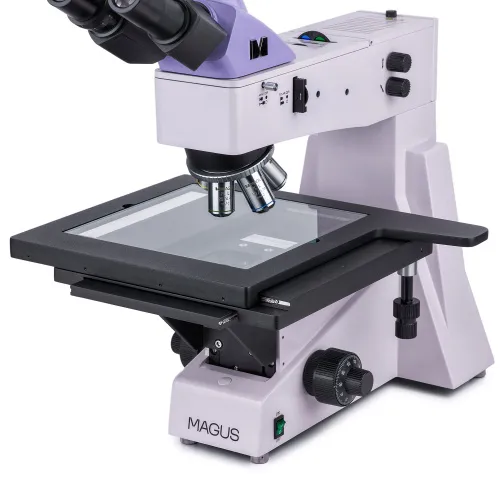

The most interesting part of the microscope design is the 280x270 mm stage, which can be moved along two axes within 204mm. Therefore, you can observe large-sized samples and examine their surface easily. The coarse and fine focusing knobs are coaxial located on both sides of the microscope, with a lock knob and coarse tension adjustment knob. The handles are located close to the microscope base, you can place your hands freely on the table and take a comfortable position while observing.

Accessories

The MAGUS Metal 650 line of microscope-compatible accessories includes eyepieces, long working distance objectives, digital cameras, and calibration slides. The accessories can be used to expand the capabilities of the microscope.

Key features:

  • Large stage with a wide movement range for working with long and wide samples
  • Fine focusing scale value 0.7µm for easy focusing at high magnifications; coarse focusing with a lock knob and tension adjustment
  • Trinocular head with a trinocular tube and a beam splitter
  • Reflected light illuminator: powerful 30W halogen bulb with brightness adjustment, and powered by AC power supply
  • Polarization device, elements of the reflected light illuminator that can be centered, Köhler illumination, color filters
  • Wide range of compatible optional accessories

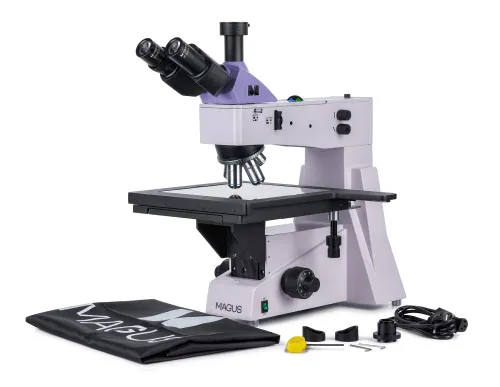

The kit includes:

  • Base with a power input, reflected light source, focusing mechanism, stage, and revolving nosepiece
  • Trinocular head
  • Infinity plan achromatic objective: PL L5x/0.12 WD 26.1mm
  • Infinity plan achromatic objective: PL L10х/0.25 WD 20.2mm
  • Infinity plan achromatic objective: PL L20х/0.40 WD 8.80mm
  • Infinity plan achromatic objective: PL L50х/0.70 WD 3.68mm
  • Infinity plan achromatic objective: PL L80x/0.80 WD: 1.25mm
  • Eyepiece 10x/22mm with long eye relief (2 pcs.)
  • C-mount adapter 1x
  • Hex key wrench
  • AC power cord
  • Dust cover
  • User manual and warranty card

Available on request:

  • 10x/22mm eyepiece with a scale
  • 12.5x/14mm eyepiece (2 pcs.)
  • 15x/15mm eyepiece (2 pcs.)
  • 20x/12mm eyepiece (2 pcs.)
  • 25x/9mm eyepiece (2 pcs.)
  • Infinity plan achromatic objective: PL L40х/0.60 WD: 3.98mm
  • Infinity plan achromatic objective: PL L60x/0.70 WD: 2.08mm
  • Infinity plan achromatic objective: PL L100x/0.85 (dry) WD 0.40mm
  • Digital camera
  • Calibration slide
specifications
Product ID 82900
Brand MAGUS
Warranty 5 years
EAN 5905555018386
Package size (LxWxH) 22.8x19.3x23.6 in
Shipping Weight 46.3 lb
Type light/optical, metallurgical
Head trinocular
Nozzle Siedentopf
Head inclination angle 30 °
Magnification, x 50–800 basic (*optional: 50–1000/1250/1500/2000/2500)
Eyepiece tube diameter, in 1.2
Eyepieces 10х/22mm, eye relief: 10mm (*optional: 10x/22mm with scale, 12.5x/14; 15x/15; 20x/12; 25x/9)
Objectives infinity plan achromatic: PL L5x/0.12, PL L10x/0.25, PL L20x/0.40, PL L50x/0.70, PL L80x/0.80; parfocal distance 45mm (*option: PL L40x/0.60, PL L60x/0.70, PL L100x/0.85 (dry))
Revolving nosepiece for 5 objectives
Working distance, mm 26.1 (5x); 20.2 (10x); 3.98 (40x); 2.08 (60x); 8.80 (20x); 3.68 (50x); 1.25 (80x); 0.40 (100x)
Interpupillary distance, in 1.9 — 3
Stage, mm 280x270
Stage moving range, mm 204/204
Stage features two-axis mechanical
Eyepiece diopter adjustment, diopters ±5 (on the left tube)
Diaphragm built-in aperture and field
Focus coaxial, coarse focusing (30mm, 13.1mm/circle, with a lock knob and tension adjusting knob) and fine focusing (0.0007mm)
Illumination halogen
Brightness adjustment
Power supply 220±22V, 50Hz, AC network
Light source type 12V/30W
Light filters green, blue, yellow, matt
Operating temperature range, °F 41...+95
Additional built-in analyzer and removable polarizer
User level experienced users, professionals
Assembly and installation difficulty level complicated
Application metallurgical
Illumination location upper
Research method bright field, polarization
Pouch/case/bag in set dust cover
