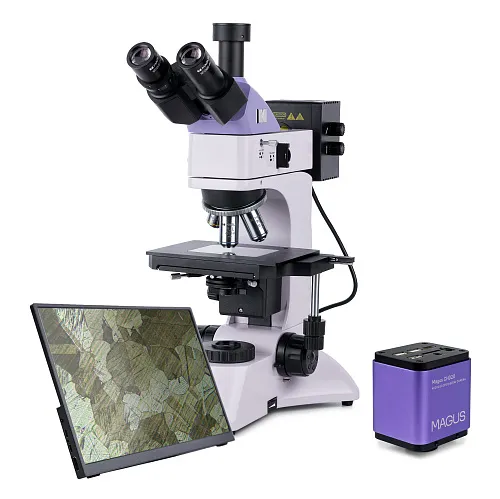

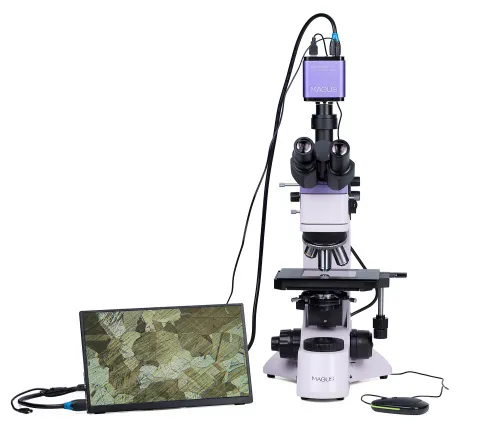

With a camera and monitor. Magnification: 50–600х. Trinocular head, plan achromatic objectives, 30W halogen transmitted and reflected light illumination

The microscope head is a core element of the microscope that you look through to see a magnified sample
50–600 basic (*optional: 50–1000/1250/1500/2000/2500)
How much the size of a sample increases when you observe it through a microscope
Application and use of the microscope

Product ID 83025
Warranty 5 years
EAN 5905555018287
Package size (LxWxH) 13.8x11.8x29.5 in
Shipping Weight 38 lb

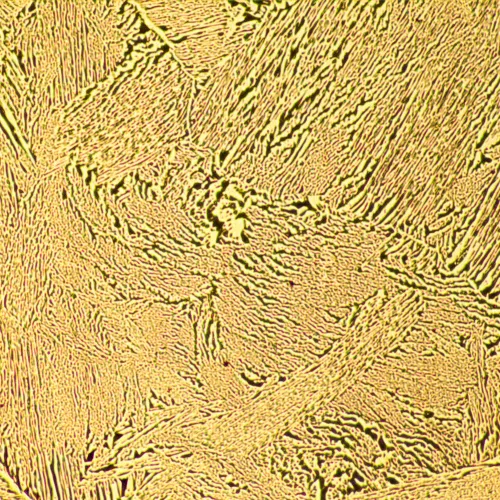

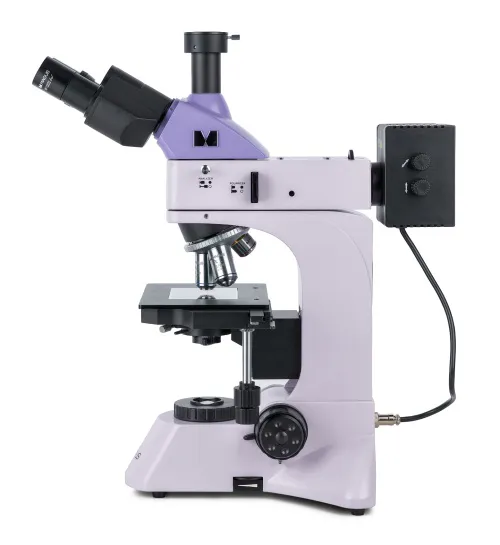

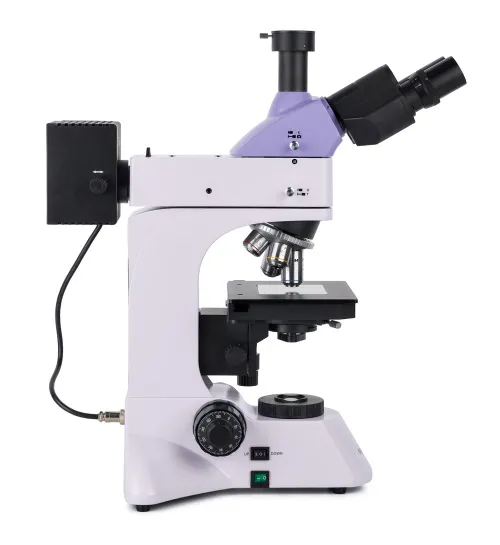

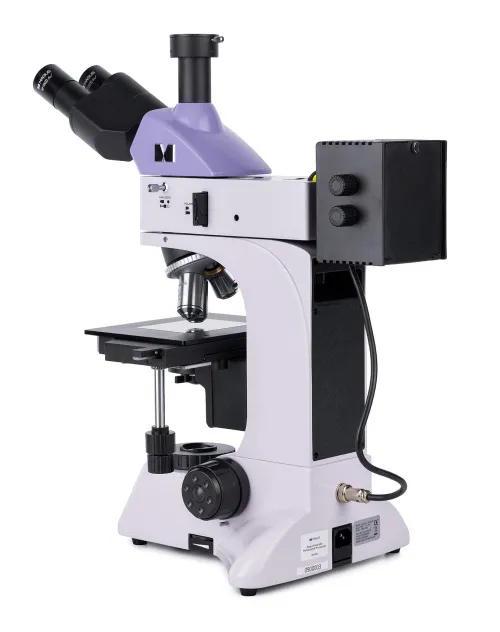

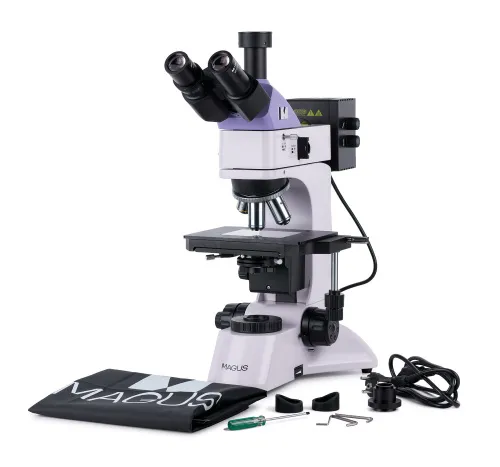

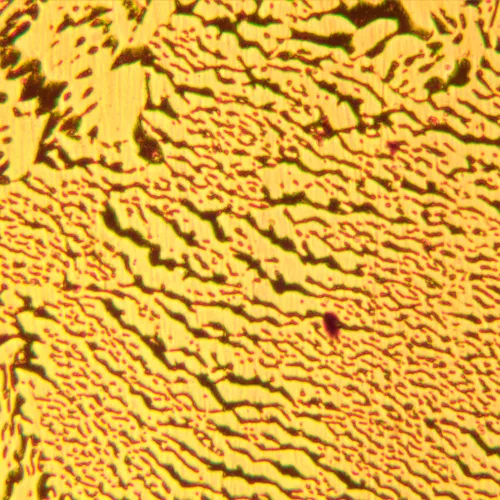

Metallurgical microscope MAGUS Metal D600 LCD is designed for studying opaque samples (metals, alloys, paint coatings, semiconductor and other materials) in reflected light using brightfield and polarization microscopy techniques. You can study the microstructures on flat and polished samples. The transmitted light illuminator also makes it possible to examine the particles trapped on filters and translucent materials (like thin films) under the microscope. The microscope is suitable for the research and analysis conducted by geologists, metallurgists, engineers, archaeologists, and specialists in other fields of science.

Digital camera

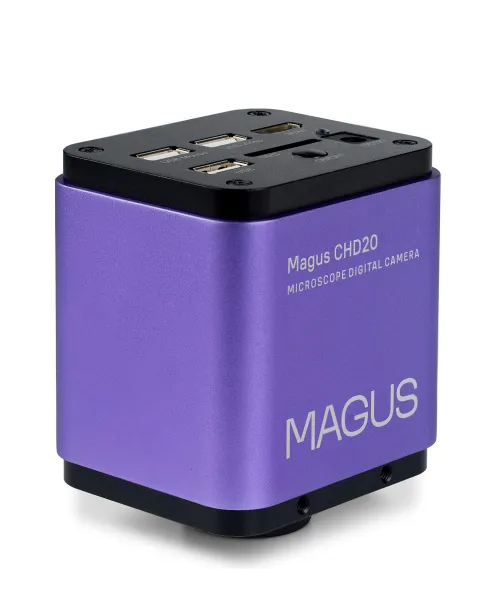

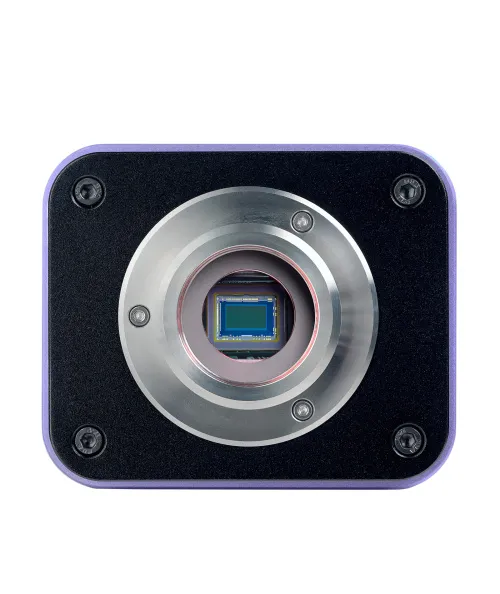

The MAGUS CHD20 Digital Camera is equipped with a 2MP sensor and produces realistic Full HD images at a resolution of 1920x1080px. The camera features high light sensitivity that is suitable for working in fluorescent light. Through the use of R, G, B primary color mosaic filters, low dark current and clear image are achieved. The camera uses an HDMI interface to connect directly to a TV, monitor, or projector. In this mode, the camera operates autonomously without a PC. The HDMI interface provides a high and stable transfer rate from the camera to the external screen. An additional USB2.0 interface is provided for connecting the camera to a PC. Video is recorded at 60fps or 50fps depending on the video output interface. The camera combines high FPS and high bandwidth HDMI and, therefore, videos are vivid with no freezes or gaps between frames. At maximum resolution, the image is well-detailed, moving objects are visible without bugs, and object movement is displayed without delays.

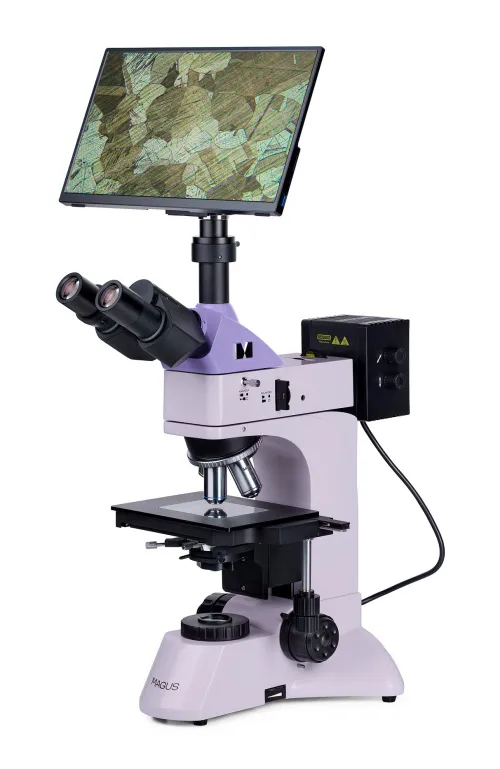

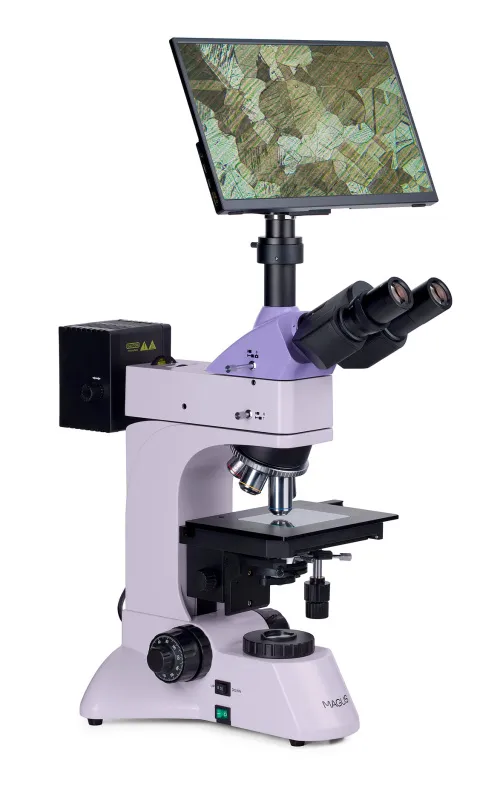

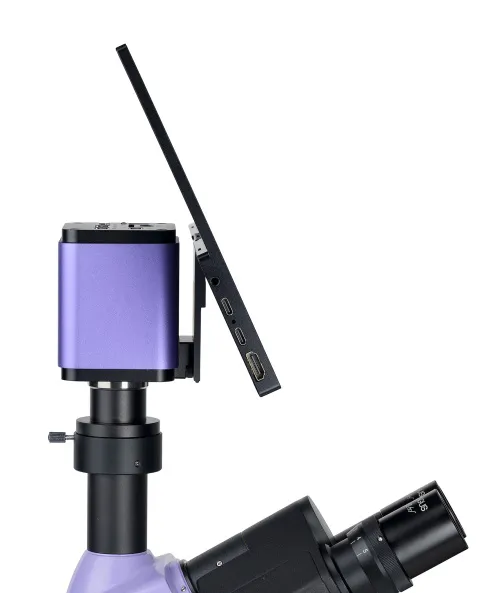

MAGUS MCD monitors work in combination with MAGUS CHD cameras to form a complete imaging system for MAGUS microscopes.
The connection to the camera occurs via its HDMI interface. The monitor displays real-time images. Its IPS LCD display has a wide viewing angle, high brightness, and good contrast. When looking at the screen even from a large angle, the image is not distorted. The screen size is 13.3''.

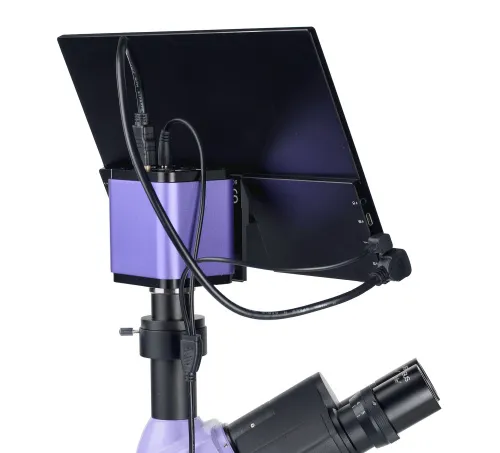

The monitor can be installed on a horizontal surface using a folding stand or mounted directly on a camera or tripod.

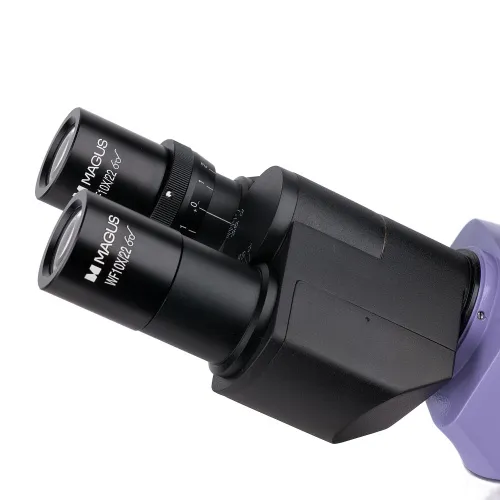

The trinocular head is equipped with a trinocular tube for camera mounting (not included). The light beam can be split in two positions: 100:0 or 0:100, which means you can direct the light beam to either the digital camera or the eyepiece tube. The trinocular head is 30° inclined, which is convenient for long observations. There is a diopter adjustment ring on the left tube.

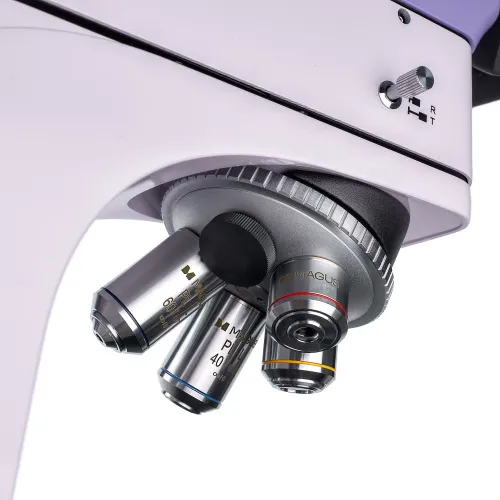

In the basic configuration, the microscope magnification ranges from 50x to 600x. In order to increase the upper magnification limit, you can mount additional eyepieces. The revolving nosepiece with objectives is oriented toward the interior. Five objectives can be mounted at the same time – four of them are included in the kit and one slot is free for installing an additional one. The microscope uses plan achromatic objectives with a long working distance suitable for brightfield microscopy.

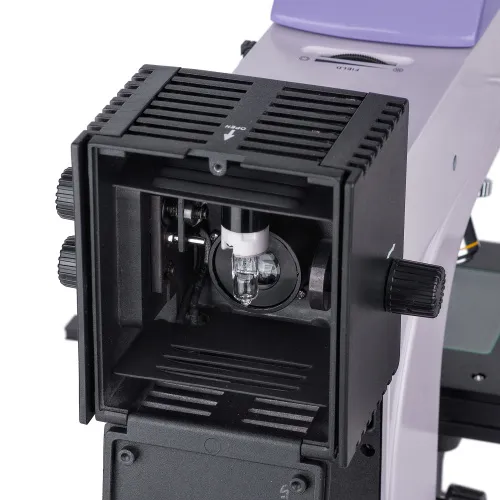

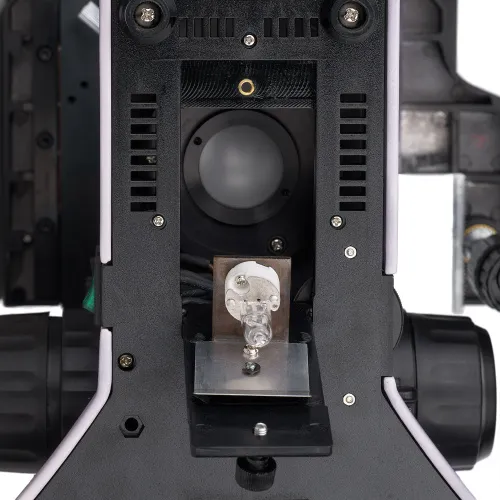

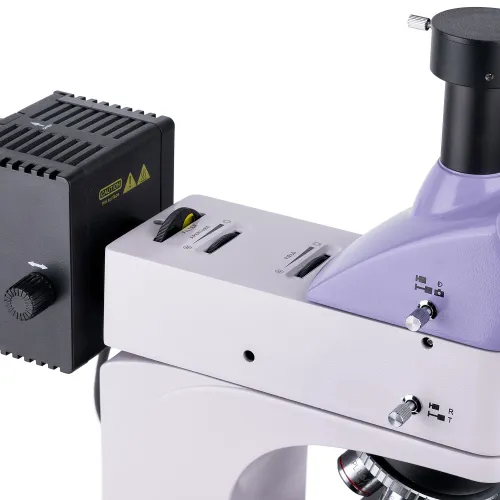

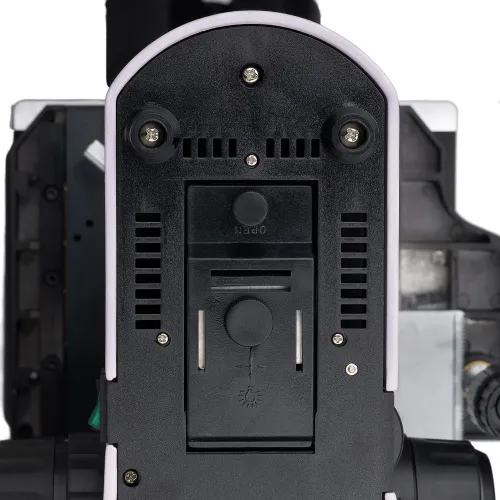

The microscope is equipped with transmitted and reflected light illumination systems. Both use 30W brightness-adjustable halogen bulbs powered by an AC power supply. Halogen bulbs emit light with a color temperature that allows for comfortable work.

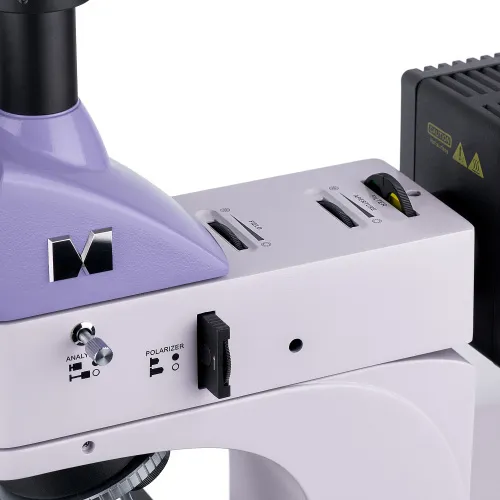

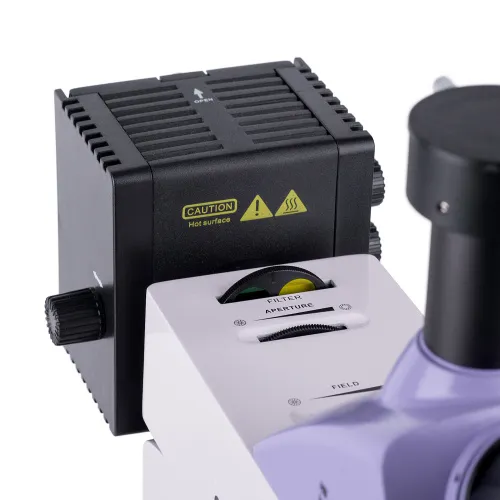

The microscope is equipped with polarization devices for reflected light observations: built-in analyzer and removable polarizer. The aperture and field diaphragms make it possible to set up the Köhler illumination, and there are also color filters included in the kit. The apertures and the reflected light source can be centered.

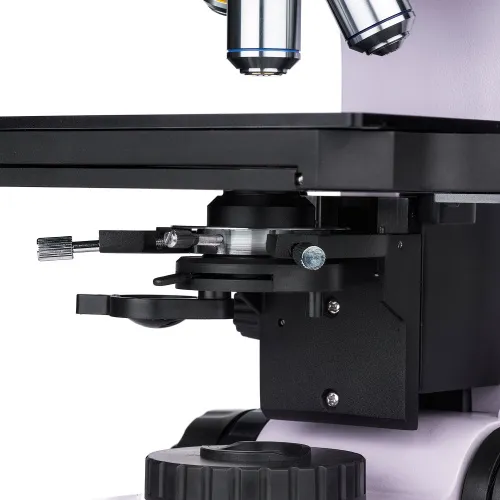

The transmitted light illumination system uses a traditional Abbe condenser, the position of which can be adjusted in two ways: centered and adjusted in height. It is complemented by a flip-up lens for use with low magnification objectives. There are aperture and field diaphragms, i.e., you can use the Köhler illumination method.

Stage and focusing mechanism

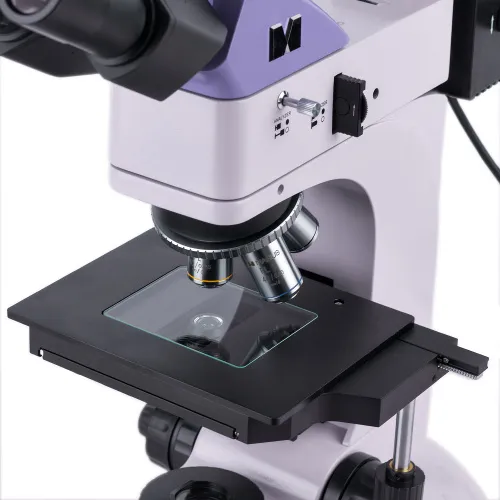

The maximum height of the specimen that can be put on the stage is 20mm. The specimen is moved by moving the stage along the two axes. It is complemented by a glass plate that is used for working with opaque specimens.

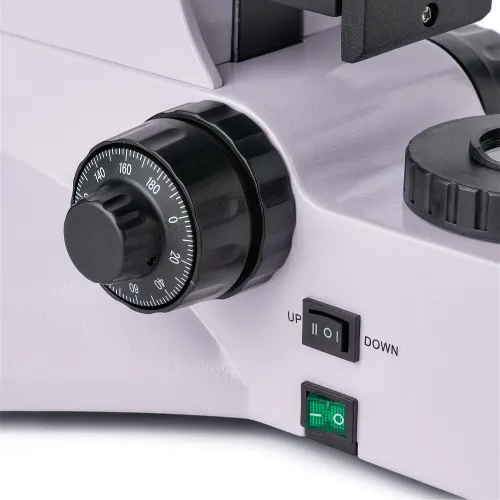

Coarse and fine focusing mechanisms are used for focus adjustment. Focusing is smooth and precise. The coarse focusing has a lock knob and tension adjustment. The focusing knobs are coaxially positioned on both sides so that you do not have to hold your hands in the air while working; instead, you can place them on the table.


The MAGUS Metal D600 LCD microscope can be further equipped with additional eyepieces, long working distance objectives, digital cameras, and calibration slides.

Key features of the microscope:

  • Microscope for studying opaque flat and polished samples in reflected light and translucent samples in transmitted light
  • Trinocular head with a trinocular tube and a beam splitter
  • Transmitted and reflected light source: 30W halogen bulb
  • Köhler illumination method in transmitted and reflected light, polarization microscopy technique in reflected light
  • Elements (diaphragms and light sources) of the reflected light illumination system that can be centered, set of filters
  • Abbe condenser with flip-up lens that is used with low magnification objectives
  • Wide range of additional objectives and eyepieces

Key features of the camera:

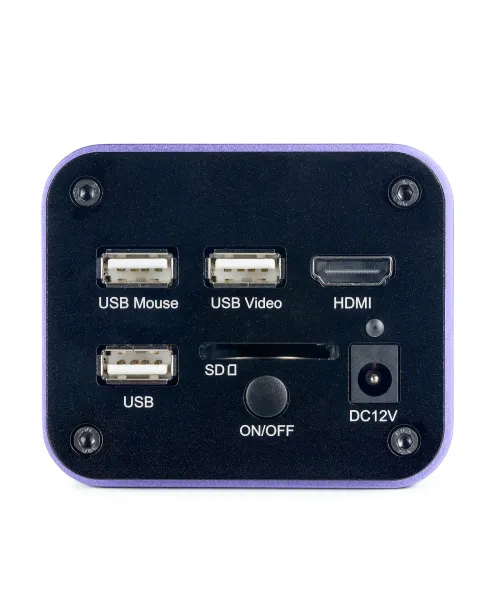

  • The camera operates autonomously without a connection to a PC via HDMI interface. Can be connected to a PC via USB2.0 interface
  • The camera resolution is 1920x1080px – an ideal choice for displaying images on a Full HD monitor
  • 60fps or 50fps depending on the video output interface for observing moving objects, recording video, and moving the preparation without jerkiness or lags
  • SONY Starvis color CMOS backlit sensor provides low noise level and high light sensitivity even in low-light conditions. You will get clearer, brighter, and more color-saturated images.
  • Software with photo, video recording, editing, external display functions, linear and angular measurements

The kit includes:

  • MAGUS CHD20 Digital Camera (digital camera, HDMI cable (1.5m), USB 2.0 cable (2m), USB mouse, 32GB SD memory card, AC power adapter 12V/1A (Euro), installation CD with drivers and software, user manual and warranty card)
  • MAGUS MCD20 LCD Monitor
  • Base with a power input, transmitted light source and condenser, focusing mechanism, stage and revolving nosepiece
  • Reflected light illuminator with a lamphouse
  • Trinocular head
  • Infinity plan achromatic objective: PL L5x/0.12 WD 26.1mm
  • Infinity plan achromatic objective: PL L10х/0.25 WD 20.2mm
  • Infinity plan achromatic objective: PL L40х/0.60 WD: 3.98mm
  • Infinity plan achromatic objective: PL L60x/0.70 WD: 2.08mm
  • Eyepiece 10x/22mm with long eye relief (2 pcs.)
  • Glass stage plate
  • C-mount adapter 1x
  • Hex key wrench
  • AC power cord
  • Reflected light illuminator power cord
  • Dust cover
  • User manual and warranty card

Available on request:

  • 10x/22mm eyepiece with a scale
  • 12.5x/14mm eyepiece (2 pcs.)
  • 15x/15mm eyepiece (2 pcs.)
  • 20x/12mm eyepiece (2 pcs.)
  • 25x/9mm eyepiece (2 pcs.)
  • Infinity plan achromatic objective: PL L20х/0.40 WD 8.80mm
  • Infinity plan achromatic objective: PL L50х/0.70 WD 3.68mm
  • Infinity plan achromatic objective: PL L80x/0.80 WD: 1.25mm
  • Infinity plan achromatic objective: PL L100x/0.85 (dry) WD 0.40mm
  • Calibration slide
Product ID 83025
Warranty 5 years
EAN 5905555018287
Package size (LxWxH) 13.8x11.8x29.5 in
Shipping Weight 38 lb
Type light/optical, digital, metallurgical
Head trinocular
Nozzle Siedentopf
Head inclination angle 30 °
Magnification, x 50–600 basic (*optional: 50–1000/1250/1500/2000/2500)
Eyepiece tube diameter, in 1.2
Eyepieces 10х/22mm, eye relief: 10mm (*optional: 10x/22mm with scale, 12.5x/14; 15x/15; 20x/12; 25x/9)
Objectives infinity plan achromatic: PL L5x/0.12, PL L10x/0.25, PL L40x/0.60, PL L60x/0.70; parfocal distance 45mm (*optional: PL L20x/0.40, PL L50x/0.70, PL L80x/0.80, PL L100x/0.85 (dry))
Revolving nosepiece for 5 objectives
Working distance, mm 26.1 (5x); 20.2 (10x); 3.98 (40x); 2.08 (60x); 8.80 (20x); 3.68 (50x); 1.25 (80x); 0.40 (100x)
Interpupillary distance, in 1.9 — 3
Stage, mm 210x140
Stage moving range, mm 75/50
Stage features two-axis mechanical stage, with a glass plate
Eyepiece diopter adjustment, diopters ±5 (on the left tube)
Condenser transmitted light: center-adjustable and height-adjustable Abbe condenser, NA 1.25, adjustable aperture diaphragm and flip-down lens, with locking screws
Focus coaxial, coarse focusing (25mm, with a lock knob and tension adjusting knob) and fine focusing (0.002mm)
Illumination halogen
Brightness adjustment
Power supply 220±22V, 50Hz, AC network
Light source type reflected and transmitted light: 12V/30W
Light filters green, blue, yellow, matt
Operating temperature range, °F 41...+95
Additional built-in analyzer and removable polarizer
User level experienced users, professionals
Assembly and installation difficulty level complicated
Application metallurgical
Illumination location dual
Research method bright field, polarization
Pouch/case/bag in set dust cover
Weight, lbs 24.3
Camera specifications
Sensor Sony Exmor/Starvis CMOS
Color/monochrome color
Megapixels 2
Maximum resolution, pix 1920x1080
Sensor size 1/2" (7.2x4.05mm)
Pixel size, μm 3.75x3.75
Interface connectors USB 2.0, HDMI 1.4
Memory card SD up to 32GB
Ability to connect additional equipment USB mouse, flash stick (USB)
Light sensitivity 1175mV with 1/30s
Signal/noise ratio 0.15mV at 1/30s
Exposure time 0.04ms–1000ms
Video recording
Frame rate, fps at resolution 60@1920x1080 (HDMI), 50@1920x1080 (USB)
Place of installation trinocular tube, eyepiece tube instead of an eyepiece
Image format *.jpg, *.tif
Video format *.h264/*.h265, *.mp4
Spectral range, nm 380–650 (built-in IR filter)
Shutter type ERS (electronic rolling shutter)
Software HDMI: built-in; USB: MAGUS View
System requirements Windows 8/10/11 (32bit and 64bit), Mac OS X, Linux, up to 2.8GHz Intel Core 2 or higher, minimum 4GB RAM, USB2.0 port, RJ45, CD-ROM, 19" or larger display
Mount type C-mount
Body CNC aluminum alloy
Camera power supply DC adapter 12V, 1A
Camera operating temperature range, °F -10...+50
Operating humidity range, % 30 — 80
Monitor specifications
Type of matrix IPS
Display diagonal, inch 13.3
Display resolution, px 1920x1080 (Full HD)
Aspect ratio 16:9
Brightness, cd/m² 400
Number of displayed colors 16.7 m
Contrast 1000:1
Horizontal/vertical viewing angle, ° 178/178
Size of the visible screen area (WxH), mm 295x165
Pixel pitch (WxH), mm 0.154x0.154
Frequency of optical source, Hz 60
Type of matrix backlight LED
LED backlight lifetime, h 50000
Interface HDMI
Operating temperature range, °F 5...+131
Operating temperature range, °F 5...+131
Operating humidity range, % 10 — 90
Power supply AC 110–220V, DC 5–12V/1A (Type-C)
Power consumption, W 12 (max.)
