With a camera and monitor. Magnification: 50–500х. Compact microscope stand, trinocular head, plan achromatic objectives, 30W halogen reflected light illuminator

Trinocular
The microscope head is a core element of the microscope that you look through to see a magnified sample
50 — 500
How much the size of a sample increases when you observe it through a microscope
Metallurgical
Application and use of the microscope
Availability

Product ID 83029
Brand MAGUS
Warranty 5 years
EAN 5905555018348
Package size (LxWxH) 15.4x14.6x28.7 in
Shipping Weight 49.1 lb
Description

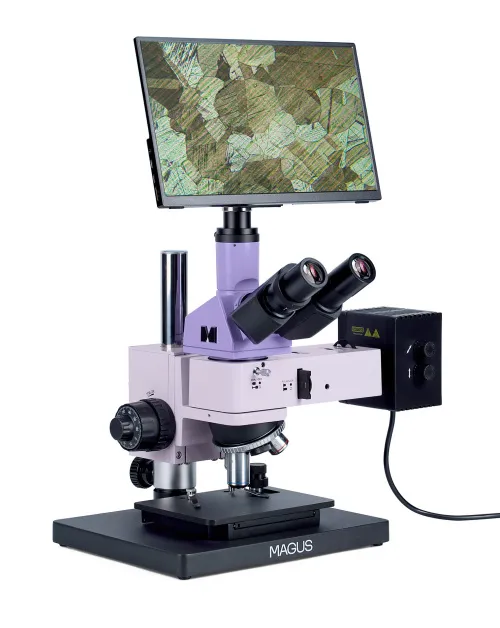

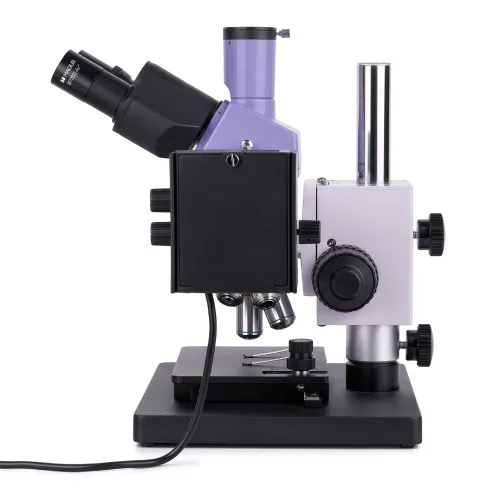

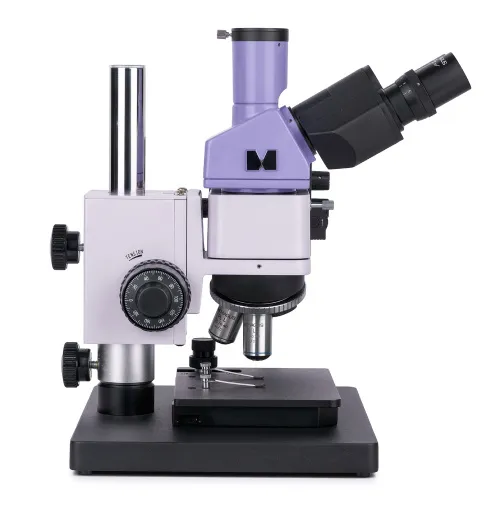

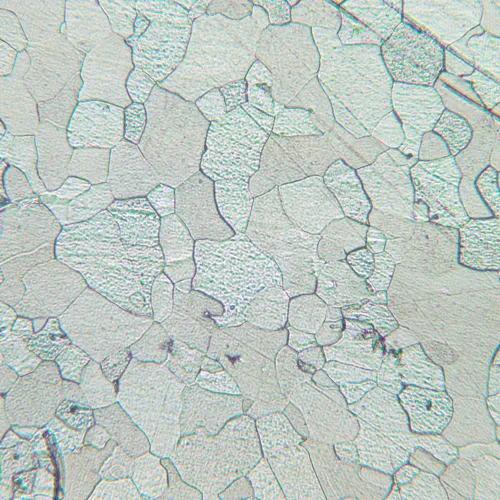

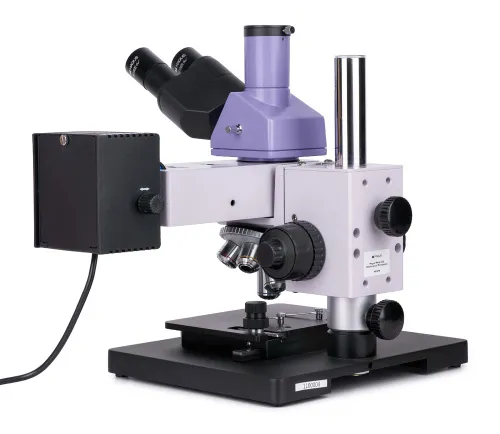

The MAGUS Metal D630 LCD metallurgical reflected light microscope is used to examine the microstructure of opaque objects of any height and size. The objects of study are metals, alloys, semiconductors, and paint coatings. Available microscopy techniques: brightfield and polarized light. One of the advantages of the microscope is its compact size, making it ideal for laboratories with limited working and storage space. MAGUS Metal D630 LCD microscope is an excellent choice for industries in various sectors, research centers, and university departments.

Digital camera

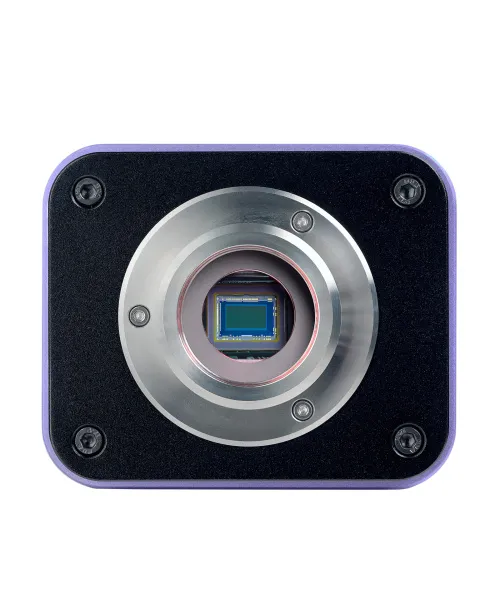

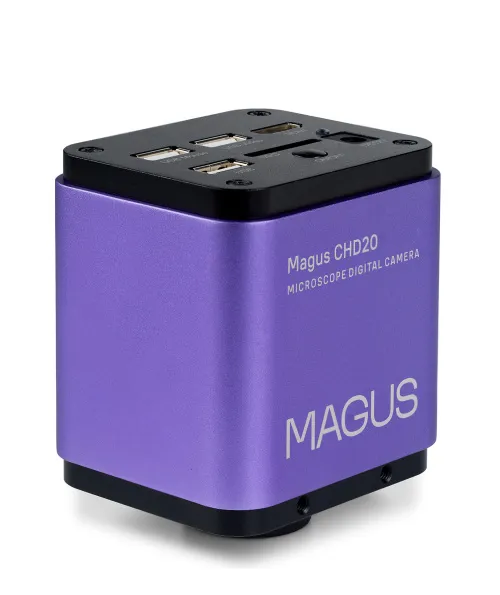

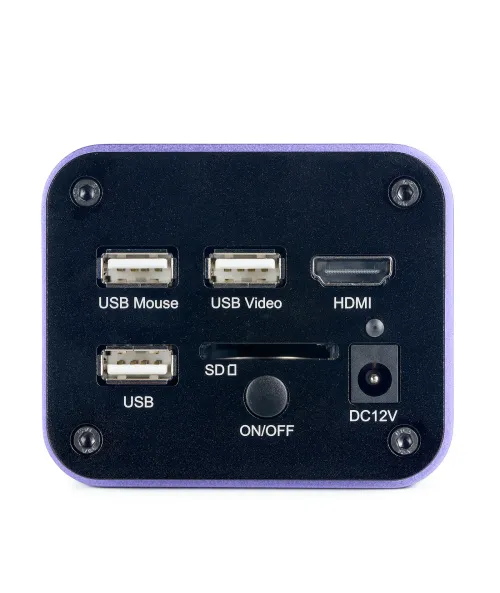

The MAGUS CHD20 Digital Camera is equipped with a 2MP sensor and produces realistic Full HD images at a resolution of 1920x1080px. The camera features high light sensitivity that is suitable for working in fluorescent light. Through the use of R, G, B primary color mosaic filters, low dark current and clear image are achieved. The camera uses an HDMI interface to connect directly to a TV, monitor, or projector. In this mode, the camera operates autonomously without a PC. The HDMI interface provides a high and stable transfer rate from the camera to the external screen. An additional USB2.0 interface is provided for connecting the camera to a PC. Video is recorded at 60fps or 50fps depending on the video output interface. The camera combines high FPS and high bandwidth HDMI and, therefore, videos are vivid with no freezes or gaps between frames. At maximum resolution, the image is well-detailed, moving objects are visible without bugs, and object movement is displayed without delays.

Monitor

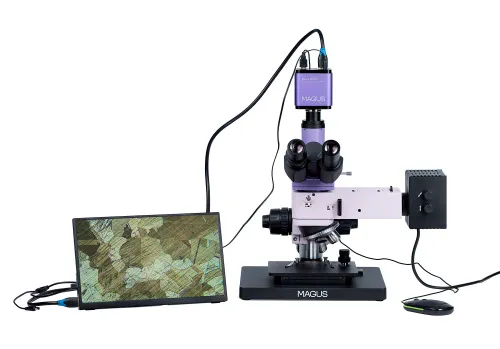

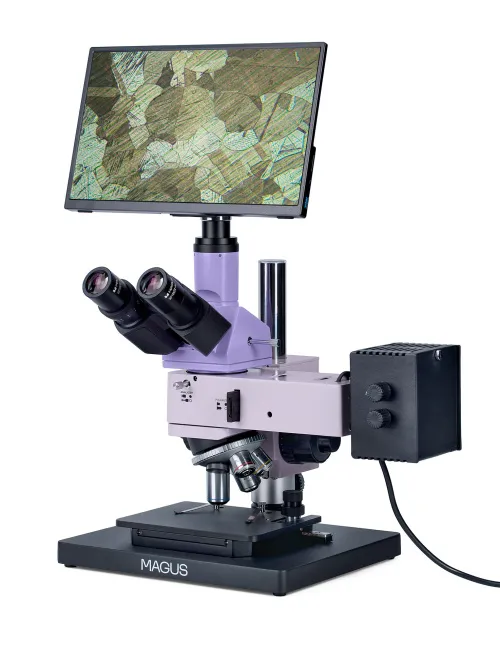

MAGUS MCD monitors work in combination with MAGUS CHD cameras to form a complete imaging system for MAGUS microscopes.
The connection to the camera occurs via its HDMI interface. The monitor displays real-time images. Its IPS LCD display has a wide viewing angle, high brightness, and good contrast. When looking at the screen even from a large angle, the image is not distorted. The screen size is 13.3''.

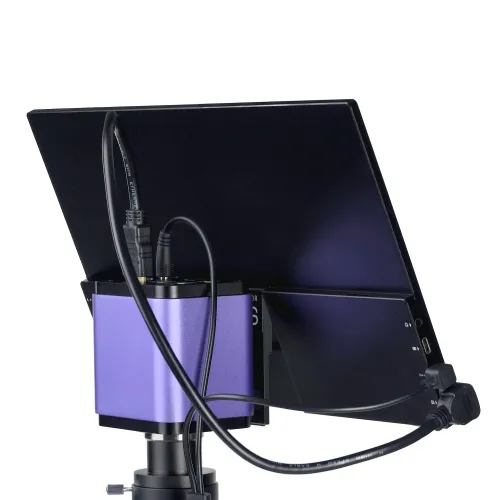

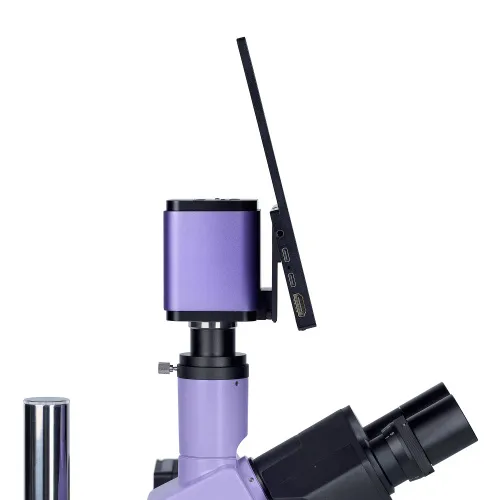

The monitor can be installed on a horizontal surface using a folding stand or mounted directly on a camera or tripod.

Optics

The optics of the microscope are infinity-corrected. The trinocular tube that is used for mounting the camera is located vertically. The light beam can be directed either to the eyepieces or into the trinocular tube. The camera is not included in the basic configuration. It is comfortable to work with this microscope for long hours because the binocular head is 30° inclined. Diopter correction is provided on the left eyepiece to adjust the optics to the user’s eyesight.

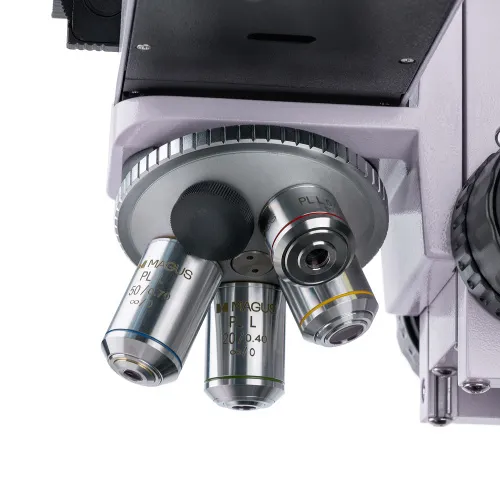

There are 5 slots in the revolving nosepiece. The kit includes 4 plan achromatic objectives. When they are installed, there is one slot left for installing an optional one. The objectives with long working distance are designed for brightfield microscopy.

Illumination

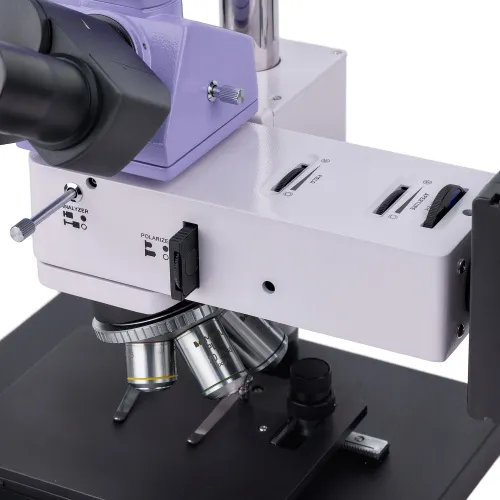

The microscope only uses reflected light illumination. The illumination system includes a polarization device, an aperture diaphragm, and a field diaphragm. Light source: 30W halogen bulb. Its light is comfortable for the eyes, and so it does not contribute to eye fatigue. The diaphragm and light source can be centered, and a Köhler illumination setup is available. There are color filters.

Stage and focusing mechanism

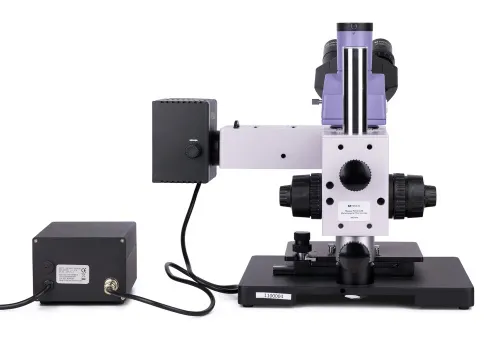

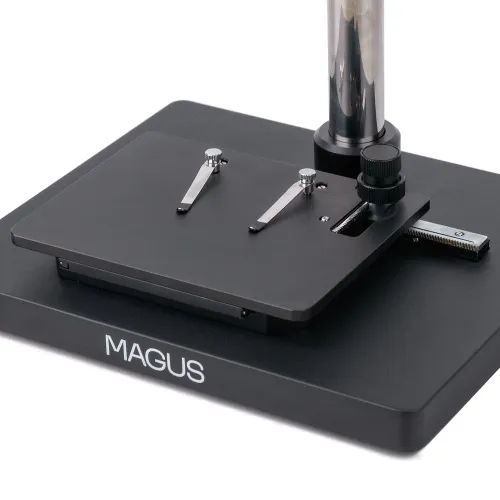

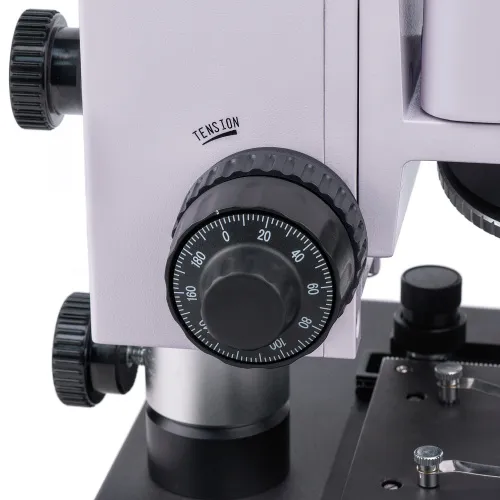

The stand and focusing mechanism of the unique design provide two advantages: compact size and the possibility to observe samples of any height. The microscope can be easily placed on laboratory furniture with a maximum height of 40cm. A two-axis stage is used to examine small specimens. The focusing is adjusted by rotating the coaxial coarse and fine focusing knobs located on both sides of the stand. The mechanisms operate smoothly and accurately. Coarse tension adjustment can also be adjusted.

Accessories

The microscope can be upgraded with optional accessories: long working distance objectives, eyepieces, digital camera, calibration slides.

Key features of the microscope:

  • No restrictions on the sample height and size
  • Trinocular head with a trinocular tube for mounting a digital camera and with a 100:0 and 0:100 beam splitter
  • 30W halogen bulb with warm light for working in reflected light using brightfield and polarization microscopy techniques
  • Color filters, option to set up Köhler illumination, light source, and field and aperture diaphragms that can be centered
  • Compact stand for mounting the microscope on small furniture
  • Multiple optional accessories

Key features of the camera:

  • The camera operates autonomously without a connection to a PC via HDMI interface. Can be connected to a PC via USB2.0 interface
  • The camera resolution is 1920x1080px – an ideal choice for displaying images on a Full HD monitor
  • 60fps or 50fps depending on the video output interface for observing moving objects, recording video, and moving the preparation without jerkiness or lags
  • SONY Starvis color CMOS backlit sensor provides low noise level and high light sensitivity even in low-light conditions. You will get clearer, brighter, and more color-saturated images.
  • Software with photo, video recording, editing, external display functions, linear and angular measurements

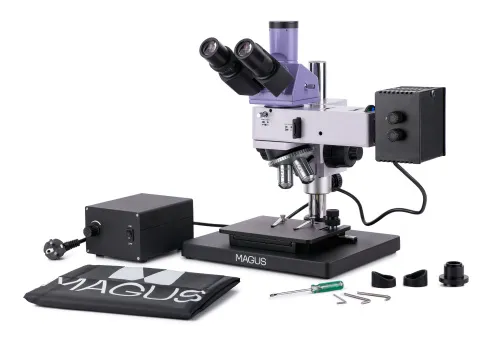

The kit includes:

  • MAGUS CHD20 Digital Camera (digital camera, HDMI cable (1.5m), USB 2.0 cable (2m), USB mouse, 32GB SD memory card, AC power adapter 12V/1A (Euro), installation CD with drivers and software, user manual and warranty card)
  • MAGUS MCD20 LCD Monitor
  • Stand with focusing mechanism, stage and revolving nosepiece
  • Reflected light illuminator with a lamphouse
  • Trinocular head
  • Infinity plan achromatic objective: PL L5x/0.12 WD 26.1mm
  • Infinity plan achromatic objective: PL L10х/0.25 WD 20.2mm
  • Infinity plan achromatic objective: PL L20х/0.40 WD 8.80mm
  • Infinity plan achromatic objective: PL L50х/0.70 WD 3.68mm
  • Eyepiece 10x/22mm with long eye relief (2 pcs.)
  • C-mount adapter 1x
  • Hex key wrench
  • Base with a power input
  • Power cord
  • Reflected light illuminator power cord
  • Dust cover
  • User manual and warranty card

Available on request:

  • 10x/22mm eyepiece with a scale
  • 12.5x/14mm eyepiece (2 pcs.)
  • 15x/15mm eyepiece (2 pcs.)
  • 20x/12mm eyepiece (2 pcs.)
  • 25x/9mm eyepiece (2 pcs.)
  • Infinity plan achromatic objective: PL L40х/0.60 WD 3.98mm
  • Infinity plan achromatic objective: PL L60x/0.70 WD 2.08mm
  • Infinity plan achromatic objective: PL L80x/0.80 WD 1.25mm
  • Infinity plan achromatic objective: PL L100x/0.85 (dry) WD 0.40mm
  • Calibration slide
specifications
Product ID 83029
Brand MAGUS
Warranty 5 years
EAN 5905555018348
Package size (LxWxH) 15.4x14.6x28.7 in
Shipping Weight 49.1 lb
Type light/optical, digital, metallurgical
Head trinocular
Nozzle Siedentopf
Head inclination angle 30 °
Magnification, x 50 — 500
Magnification, x (optional) 50–1000/1250/1500/2000/2500
Eyepiece tube diameter, in 1.2
Eyepieces 10х/22mm, eye relief: 10mm (*optional: 10x/22mm with scale, 12.5x/14; 15x/15; 20x/12; 25x/9)
Objectives infinity plan achromatic: PL L5x/0.12, PL L10x/0.25, PL L20x/0.40, PL L50x/0.70; parfocal distance 45mm (*optional: PL L40x/0.60, PL L60x/0.70, PL L80x/0.80, PL L100x/0.85 (dry))
Revolving nosepiece for 5 objectives
Working distance, mm 26.1 (5x); 20.2 (10x); 3.98 (40x); 2.08 (60x); 8.80 (20x); 3.68 (50x); 1.25 (80x); 0.40 (100x)
Interpupillary distance, in 1.9 — 3
Stage, mm 185x140
Stage moving range, mm 35/30
Stage features two-axis mechanical stage; microscope base size: 300x240 mm
Eyepiece diopter adjustment, diopters ±5 (on the left tube)
Diaphragm built-in aperture and field
Focus coaxial, coarse (with coarse focusing tension adjustment) and fine (0.002 mm)
Illumination halogen
Brightness adjustment
Power supply 220±22V, 50Hz, AC network
Light source type 12V/30W
Light filters green, blue, yellow, matt
Operating temperature range, °F 41...+95
Additional built-in analyzer and removable polarizer
User level experienced users, professionals
Assembly and installation difficulty level complicated
Application metallurgical
Illumination location upper
Research method bright field, polarization
Pouch/case/bag in set dust cover
Camera specifications
Sensor Sony Exmor/Starvis CMOS
Color/monochrome color
Megapixels 2
Maximum resolution, pix 1920x1080
Sensor size 1/2" (7.2x4.05mm)
Pixel size, μm 3.75x3.75
Interface connectors USB 2.0, HDMI 1.4
Memory card SD up to 32GB
Ability to connect additional equipment USB mouse, flash stick (USB)
Light sensitivity 1175mV with 1/30s
Signal/noise ratio 0.15mV at 1/30s
Exposure time 0.04ms–1000ms
Video recording
Frame rate, fps at resolution 60@1920x1080 (HDMI), 50@1920x1080 (USB)
Place of installation trinocular tube, eyepiece tube instead of an eyepiece
Image format *.jpg, *.tif
Video format *.h264/*.h265, *.mp4
Spectral range, nm 380–650 (built-in IR filter)
Shutter type ERS (electronic rolling shutter)
Software HDMI: built-in; USB: MAGUS View
System requirements Windows 8/10/11 (32bit and 64bit), Mac OS X, Linux, up to 2.8GHz Intel Core 2 or higher, minimum 4GB RAM, USB2.0 port, RJ45, CD-ROM, 19" or larger display
Mount type C-mount
Body CNC aluminum alloy
Camera power supply DC adapter 12V, 1A
Camera operating temperature range, °F -10...+50
Operating humidity range, % 30 — 80
Monitor specifications
Type of matrix IPS
Display diagonal, inch 13.3
Display resolution, px 1920x1080 (Full HD)
Aspect ratio 16:9
Brightness, cd/m² 400
Number of displayed colors 16.7 m
Contrast 1000:1
Horizontal/vertical viewing angle, ° 178/178
Size of the visible screen area (WxH), mm 295x165
Pixel pitch (WxH), mm 0.154x0.154
Frequency of optical source, Hz 60
Type of matrix backlight LED
LED backlight lifetime, h 50000
Interface HDMI
Operating temperature range, °F 5...+131
Operating temperature range, °F 5...+131
Operating humidity range, % 10 — 90
Power supply AC 110–220V, DC 5–12V/1A (Type-C)
Power consumption, W 12 (max.)
