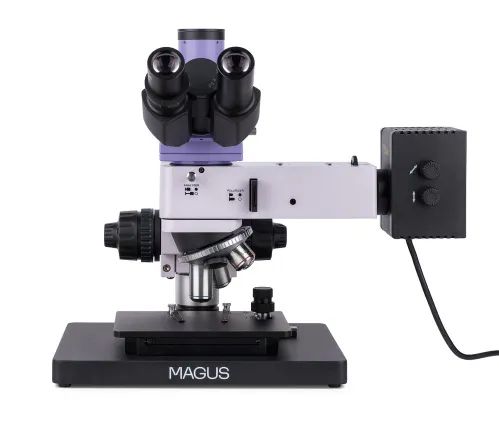

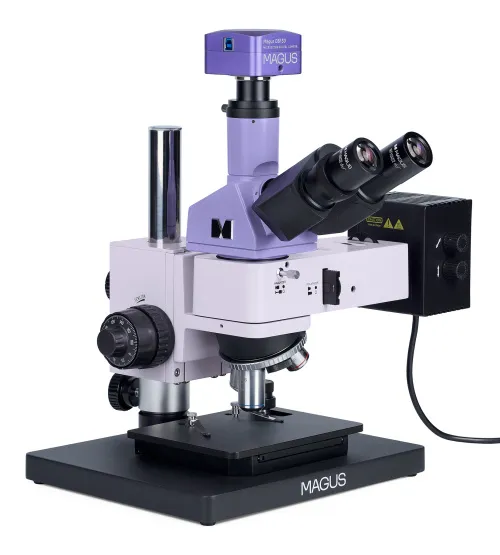

MAGUS Metal D630 Metallurgical Digital Microscope

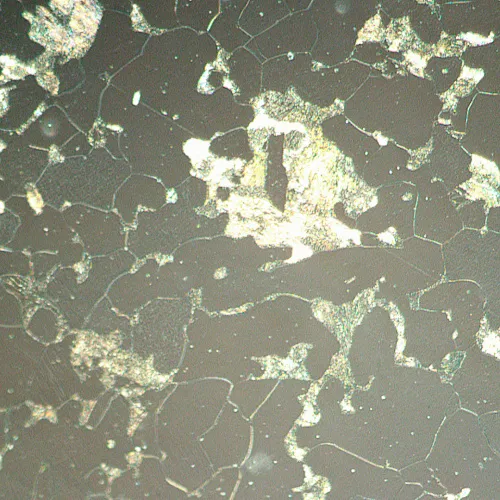

The MAGUS Metal 630 metallurgical reflected light microscope is used to examine the microstructure of opaque objects of any height and size. The objects of study are metals, alloys, semiconductors, and paint coatings. Available microscopy techniques: brightfield and polarized light. One of the advantages of the microscope is its compact size, making it ideal for laboratories with limited working and storage space. MAGUS Metal 630 microscope is an excellent choice for industries in various sectors, research centers, and university departments.

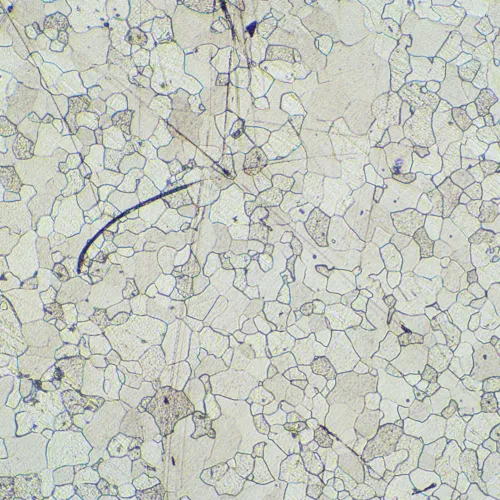

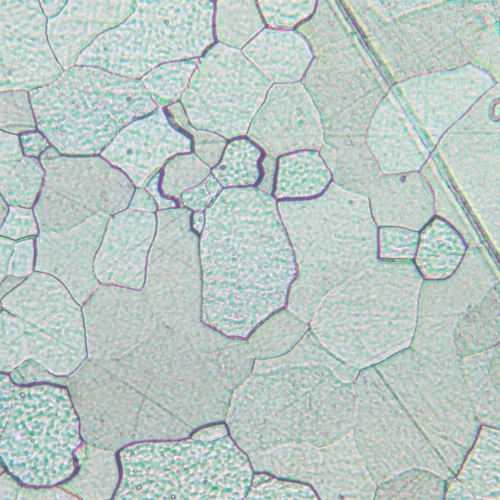

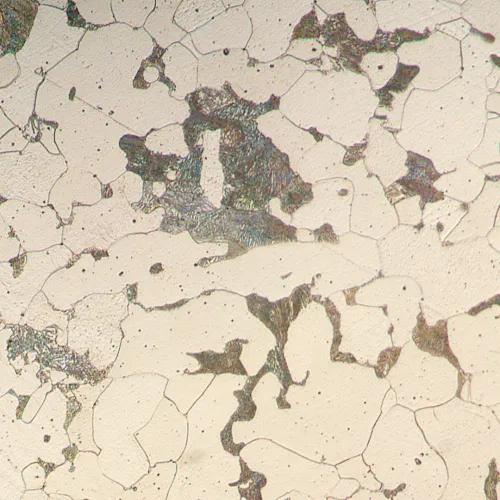

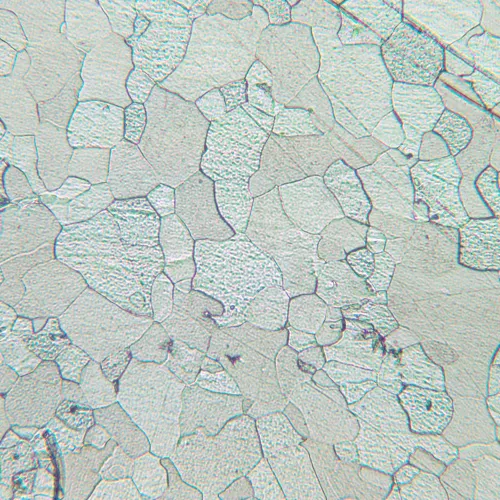

Digital camera

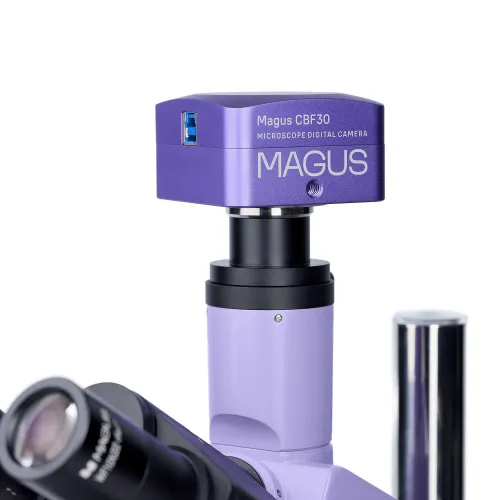

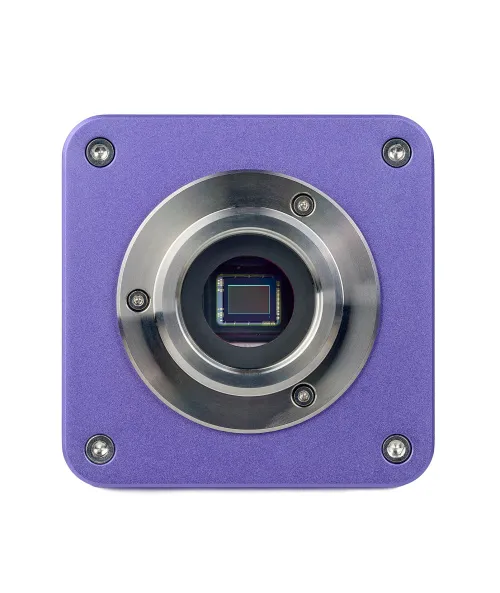

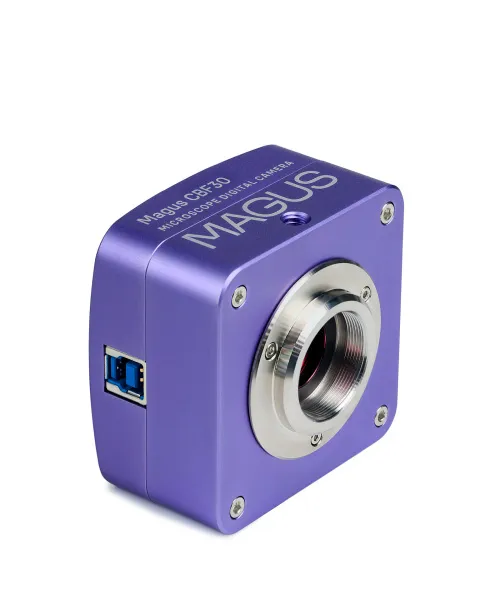

The MAGUS CBF30 Digital Camera enables you to take photographs and shoot video through a microscope, edit the resulting files, organize presentations, and make linear and angular measurements of objects (after correct calibration).
The device is designed to work on microscopes using the brightfield method and 4x, 10x, 20x, and 40x objectives.

The 6.3MP sensor enables you to shoot bright and detailed photos and videos at a maximum resolution of 3072x2048px. If necessary, the resolution can be lowered to 1536x1024px. However, this will not affect the frame rate, which will remain at 59fps, thereby ensuring smooth frame transitions without jerkiness or delays.

The SONY Exmor backlit color CMOS sensor enables you to use the camera even in low-light conditions. The image will remain readable and bright. Using an adapter with a magnification from 0.5x to 0.75x will provide the clearest possible image without distortion.

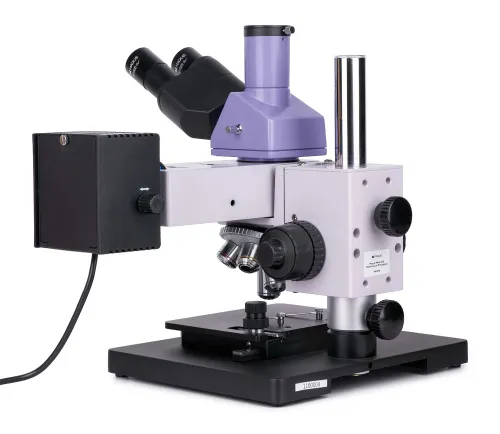

Optics

The optics of the microscope are infinity-corrected. The trinocular tube that is used for mounting the camera is located vertically. The light beam can be directed either to the eyepieces or into the trinocular tube. The camera is not included in the basic configuration. It is comfortable to work with this microscope for long hours because the binocular head is 30° inclined. Diopter correction is provided on the left eyepiece to adjust the optics to the user’s eyesight.

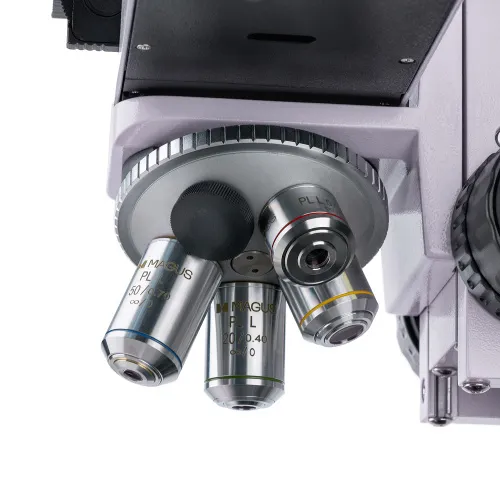

There are 5 slots in the revolving nosepiece. The kit includes 4 plan achromatic objectives. When they are installed, there is one slot left for installing an optional one. The objectives with long working distance are designed for brightfield microscopy.

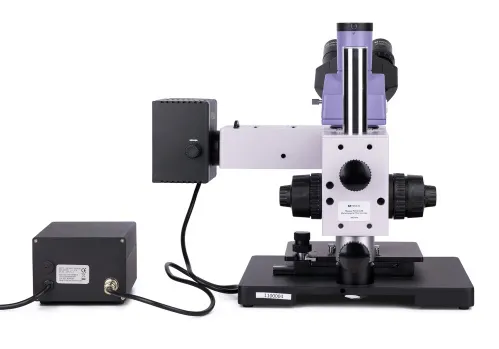

Illumination

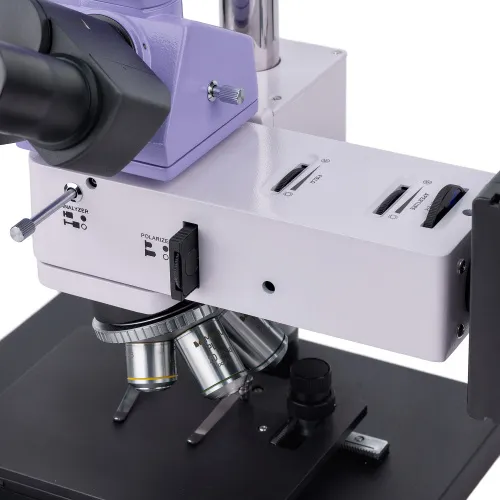

The microscope only uses reflected light illumination. The illumination system includes a polarization device, an aperture diaphragm, and a field diaphragm. Light source: 30W halogen bulb. Its light is comfortable for the eyes, and so it does not contribute to eye fatigue. The diaphragm and light source can be centered, and a Köhler illumination setup is available. There are color filters.

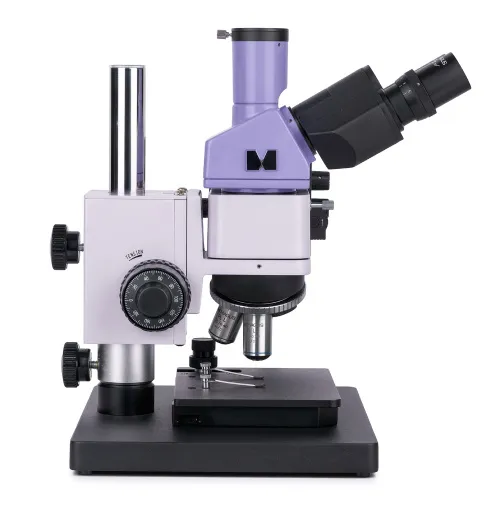

Stage and focusing mechanism

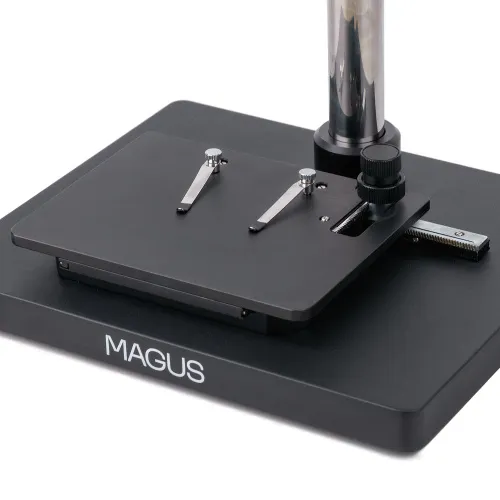

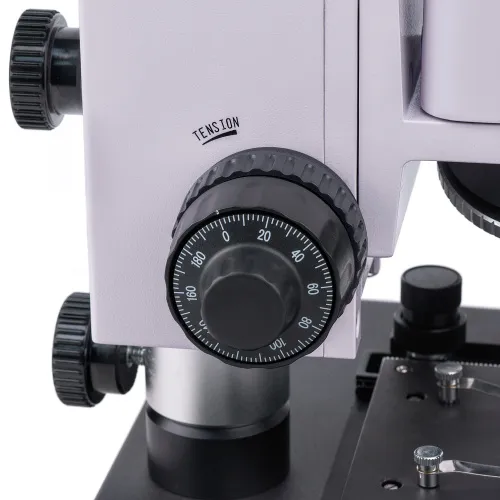

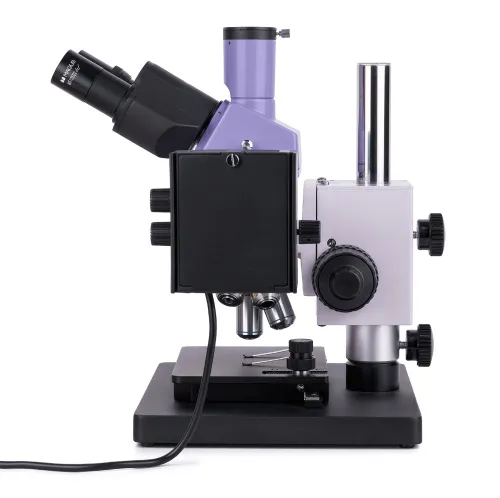

The stand and focusing mechanism of the unique design provide two advantages: compact size and the possibility to observe samples of any height. The microscope can be easily placed on laboratory furniture with a maximum height of 40cm. A two-axis stage is used to examine small specimens. The focusing is adjusted by rotating the coaxial coarse and fine focusing knobs located on both sides of the stand. The mechanisms operate smoothly and accurately. Coarse tension adjustment can also be adjusted.

Accessories

The microscope can be upgraded with optional accessories: long working distance objectives, eyepieces, digital camera, calibration slides.

Key features of the microscope:

• No restrictions on the sample height and size
• Trinocular head with a trinocular tube for mounting a digital camera and with a 100:0 and 0:100 beam splitter
• 30W halogen bulb with warm light for working in reflected light using brightfield and polarization microscopy techniques
• Color filters, option to set up Köhler illumination, light source, and field and aperture diaphragms that can be centered
• Compact stand for mounting the microscope on small furniture
• Multiple optional accessories

Key features of the camera:

• Recommended for use with low magnification objectives
• Color light-sensitive sensor for clear images even in low light conditions
• Frame rate of 59fps, which is enough for the observation of moving objects or fast-moving processes
• The kit includes software that fully ensures the functionality of all the camera features and, consequently, a “quick start”
• Reliable USB3.0 interface for high data transfer speeds
• Resolution adjustment so that you can choose the option that suits you the best at any given moment

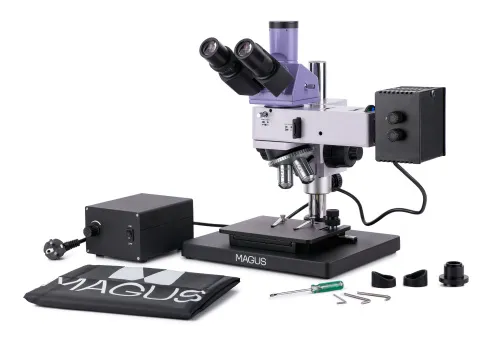

The kit includes:

• MAGUS CBF30 Digital Camera (digital camera, USB cable, installation CD with drivers and software, user manual and warranty card)
• Stand with focusing mechanism, stage and revolving nosepiece
• Reflected light illuminator with a lamphouse
• Trinocular head
• Infinity plan achromatic objective: PL L5x/0.12 WD 26.1mm
• Infinity plan achromatic objective: PL L10х/0.25 WD 20.2mm
• Infinity plan achromatic objective: PL L20х/0.40 WD 8.80mm
• Infinity plan achromatic objective: PL L50х/0.70 WD 3.68mm
• Eyepiece 10x/22mm with long eye relief (2 pcs.)
• C-mount adapter 1x
• Hex key wrench
• Base with a power input
• Power cord
• Reflected light illuminator power cord
• Dust cover
• User manual and warranty card

Available on request:

• 10x/22mm eyepiece with a scale
• 12.5x/14mm eyepiece (2 pcs.)
• 15x/15mm eyepiece (2 pcs.)
• 20x/12mm eyepiece (2 pcs.)
• 25x/9mm eyepiece (2 pcs.)
• Infinity plan achromatic objective: PL L40х/0.60 WD 3.98mm
• Infinity plan achromatic objective: PL L60x/0.70 WD 2.08mm
• Infinity plan achromatic objective: PL L80x/0.80 WD 1.25mm
• Infinity plan achromatic objective: PL L100x/0.85 (dry) WD 0.40mm
• Calibration slide
