Magnification: 40–600x. Trinocular head, plan achromatic objectives. Transmitted light illumination, light source – 30W halogen bulb, Köhler illumination. Bertrand lens and compensators

The microscope head is a core element of the microscope that you look through to see a magnified sample
40–600 basic configuration (*optional: 40– 1000/1250/1500/2000/2500)
How much the size of a sample increases when you observe it through a microscope
Application and use of the microscope

Product ID 82911
Warranty 5 years
EAN 5905555018508
Package size (LxWxH) 16.9x10.6x24.8 in
Shipping Weight 32 lb

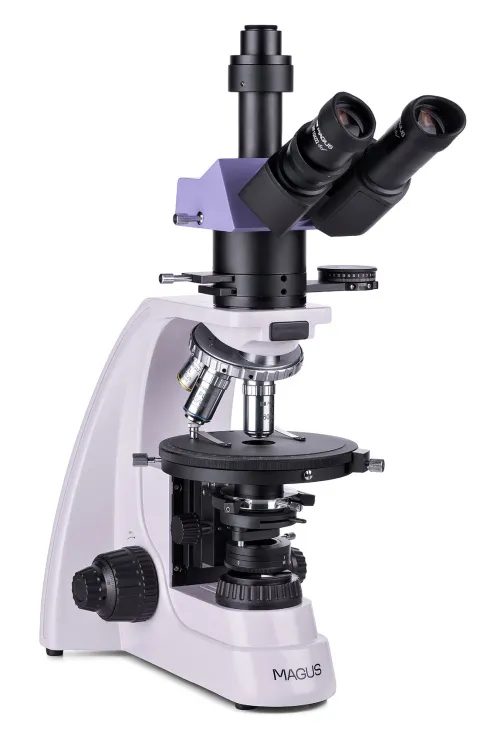

The MAGUS Pol 800 Polarizing Microscope is used to study anisotropic objects in polarized and ordinary transmitted light. Objects of study can be biological, geological, or polymer. The optics of the microscope are strain-free, i.e., they do not create parasitic refractions. They form a clear, high-contrast and authentic image. The microscope’s functionality is useful in various fields of science: medicine, forensics, mineralogy, petrography, crystallography, etc.

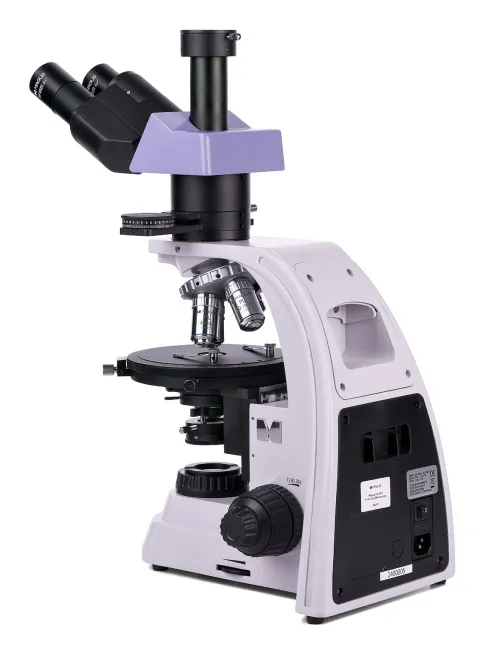

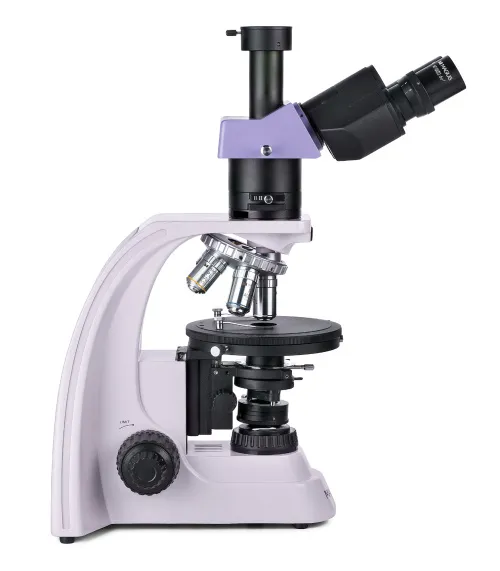

The trinocular head is equipped with a trinocular tube for mounting a digital camera (camera not included). By using the switch on the body, the light is completely directed either to the eyepiece tubes or to the digital camera. The 30° angle of the eyepiece tubes is comfortable for long-term observations and does not cause strain on the neck muscles. The left tube has a diopter adjustment ring in which it rotates and adapts the optics of the microscope to the user’s unique vision.

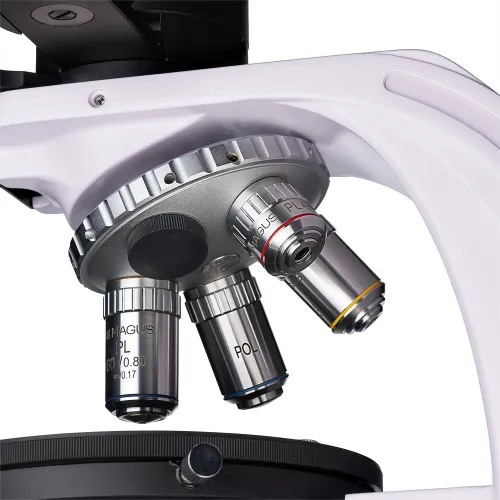

The revolving nosepiece is designed for the simultaneous installation of five objectives, with four already included in the package. An additional objective from the MAGUS range of accessories can be purchased separately. All of the objectives are designed to work with 0.17mm thick cover slips. Thanks to the “away from the observer” revolver design, the objective inserted into the optical path is clearly visible during work, which makes the researcher’s work more convenient. The revolver nosepiece slots are centered.

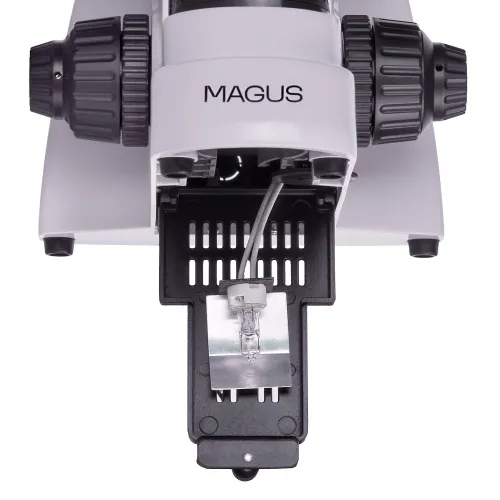

The illumination source is located under the object stage, i.e., observations are carried out in transmitted light. The 30W halogen bulb produces bright, eye-friendly illumination that is suitable for use on all objectives. Adjusting the illumination using the Köhler method achieves higher contrast and enhanced image quality.

The microscope is equipped with a polarizer and analyzer. To work in polarized light, the analyzer is introduced into the optical path, and the polarization angle is changed by rotating the polarizer and analyzer relative to each other. The microscope also has an intermediate attachment that holds a Bertrand lens and has a slot for compensators. Compensators enhance the contrast of samples with low birefringence, and the Bertrand lens is designed for conoscopic studies.

Stage and focusing mechanism

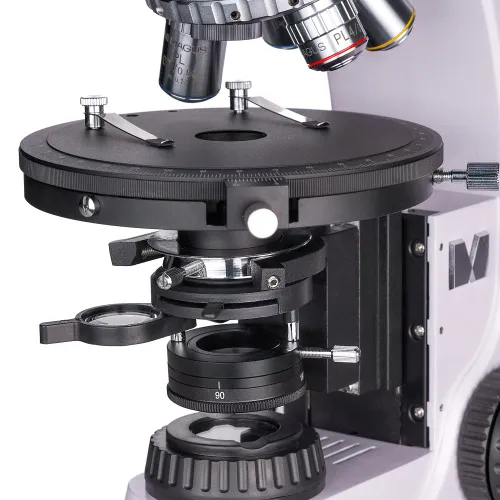

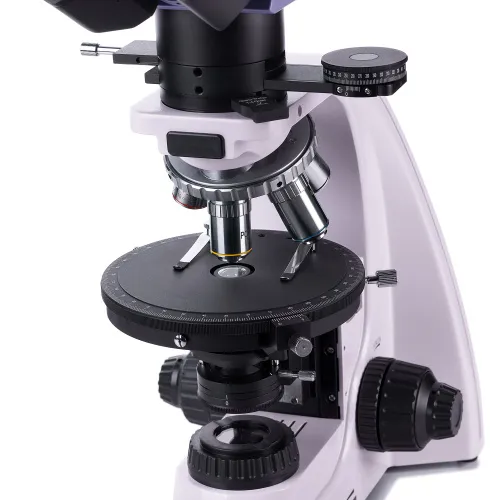

The microscope stage rotates and that enables you to quickly change the refraction of light by the sample when working in polarized light. The stage is centered relative to the optical axis of the microscope, has rotation angle gradation and a scale that enables you to determine the angle with an accuracy of 0.1°.

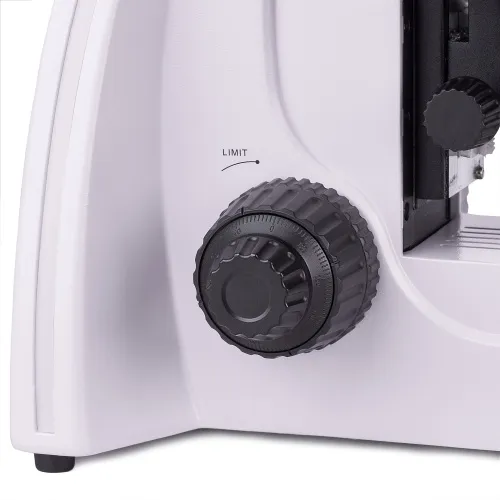

The focusing mechanism provides coarse and fine sharpness adjustment. For coarse focusing, a coarse focusing lock is available, and you can also adjust the coarse tension for the most comfortable control.


Optional eyepieces, objectives, digital cameras, and calibration slides are available for the microscope. They broaden the capabilities of the microscope for carrying out researchers’ tasks.

Key features:

  • Observations in transmitted light in a brightfield and by the polarization methods
  • Illumination source is a 30W halogen bulb with a “warm” spectrum of light that is comfortable for the eyes
  • Polarization is achieved by a rotating analyzer and polarizer; the intermediate attachment has a Bertrand lens and a slot for compensators
  • It is possible to adjust illumination according to the Köhler method, which improves image readability
  • The trinocular tube allows for the installation of a digital camera in the trinocular tube
  • The infinity plan achromatic objectives are strain-free; the revolving nosepiece slots are centered
  • Rotating stage, coarse, and fine focusing
  • Compatible with additional accessories: eyepieces, objectives, etc.

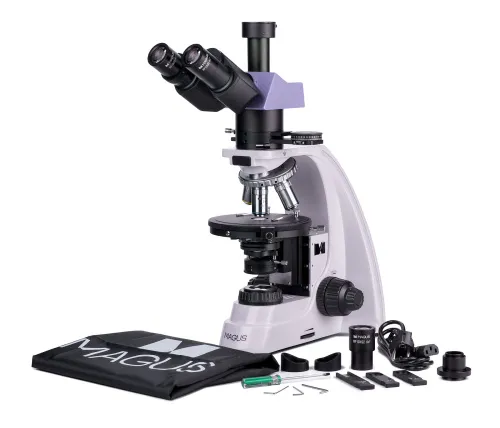

The kit includes:

  • Base with a power input, transmitted light source and condenser, focusing mechanism, stage, and revolving nosepiece
  • Trinocular head
  • Intermediate tube with Bertrand lens, an analyzer, and a compensator slot

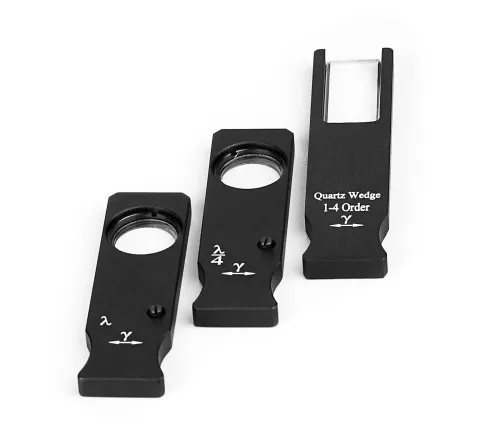

  • Compensators: λ compensator, λ/4 compensator, quartz wedge
  • Infinity plan achromatic objective: PL 4x/0.10 WD 21mm
  • Infinity plan achromatic objective: PL 10x/0.25 WD 5.0mm
  • Infinity plan achromatic objective: PL 40x/0.65 (spring-loaded) WD 0.66mm
  • Infinity plan achromatic objective: PL 60x/0.80 (spring-loaded) WD 0.46mm
  • Eyepiece 10x/22mm with long eye relief (2 pcs.)
  • 10x/22mm eyepiece with a scale. Scale value: 0.1mm
  • C-mount adapter 1x
  • Hex key wrench
  • Power cord
  • Dust cover
  • User manual and warranty card

Available on request:

  • Eyepiece 10x/22mm with crosshairs
  • 12.5x/14mm eyepiece (2 pcs.)
  • 15x/15mm eyepiece (2 pcs.)
  • 20x/12mm eyepiece (2 pcs.)
  • 25x/9mm eyepiece (2 pcs.)
  • Infinity plan achromatic objective: PL 5x/0.12 WD 26.1mm
  • Infinity plan achromatic objective: PL 20x/0.4 WD 8.8mm
  • Infinity plan achromatic objective, fluo: PL 100x/1.25 (spring-loaded, oil) WD 0.36mm
  • Infinity plan achromatic objective, fluo: PL 100x/0.8 (spring-loaded, dry) WD 2.02mm
  • Mechanical stage attachment
  • Digital camera
  • Calibration slide
Product ID 82911
Warranty 5 years
EAN 5905555018508
Package size (LxWxH) 16.9x10.6x24.8 in
Shipping Weight 32 lb
Type biological, light/optical
Head trinocular
Nozzle Siedentopf
Head inclination angle 30 °
Magnification, x 40–600 basic configuration (*optional: 40– 1000/1250/1500/2000/2500)
Eyepiece tube diameter, in 1.2
Eyepieces 10х/22mm, eye relief: 10mm; 10х/22mm with a scale (*optional: 10x/22mm with crosshairs, 12.5x/14; 15x/15; 20x/12; 25x/9)
Objectives infinity plan achromatic, strain-free: PL 4x/0.10; PL 10x/0.25; PL 40x/0.65; PL 60x/0.80 (*optional: PL 5x/0.12; PL 20x/0.4; PL 100x/1.25 (oil); PL 100x/0.8 (dry)); parfocal height 45mm, designed for work with a 0.17mm thick cover slips
Revolving nosepiece for 5 objectives, centering
Working distance, mm 21 (4x); 5.0 (10x); 0.66 (40x); 0.46 (60x); 26.1 (5x); 8.8 (20x); 0.36 (100x (oil)); 2.02 (100x (dry))
Interpupillary distance, in 1.9 — 3
Stage, mm Ø150
Stage features 360 ° rotatable, centering, 1° graduation of the rotation angle; a vernier scale for measuring angles with an accuracy of 0.1°
Eyepiece diopter adjustment, diopters ±5 (on the left tube)
Condenser Abbe condenser NA 1.25 with an adjustable aperture diaphragm and a swivel lens
Diaphragm adjustable aperture diaphragm, adjustable iris field diaphragm
Focus coaxial, coarse focusing (21mm, 39.8mm/circle, with a lock knob and tension adjusting knob) and fine focusing (0.002mm)
Illumination halogen
Brightness adjustment
Power supply 220±22V, 50Hz, AC network
Light source type halogen lamp: 12V/30W
Operating temperature range, °F 41...+95
User level experienced users, professionals
Assembly and installation difficulty level complicated
Polarizer with 0°, 90°, 180°, 270° marks on the scale; 360° rotatable
Intermediate tube built-in analyzer with rotation 0–360°; a vernier scale for measuring angles with an accuracy of 0.1°; Bertrand lens; slot for installing compensators
Compensator λ compensator; λ/4 compensator; quartz wedge
Application laboratory/medical
Illumination location lower
Research method bright field, polarization
Pouch/case/bag in set dust cover
