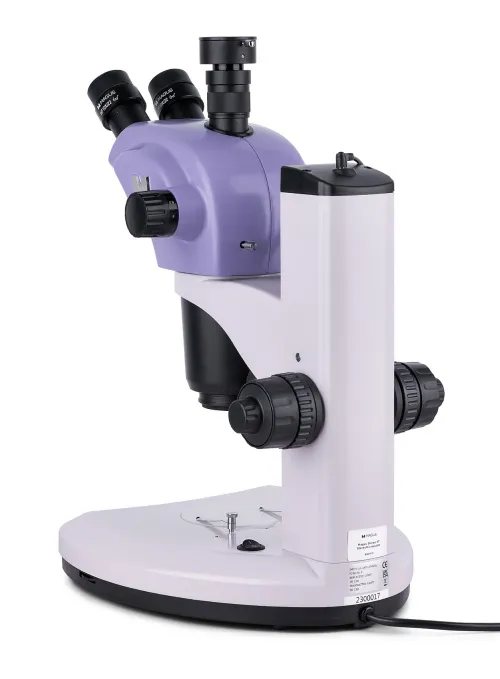

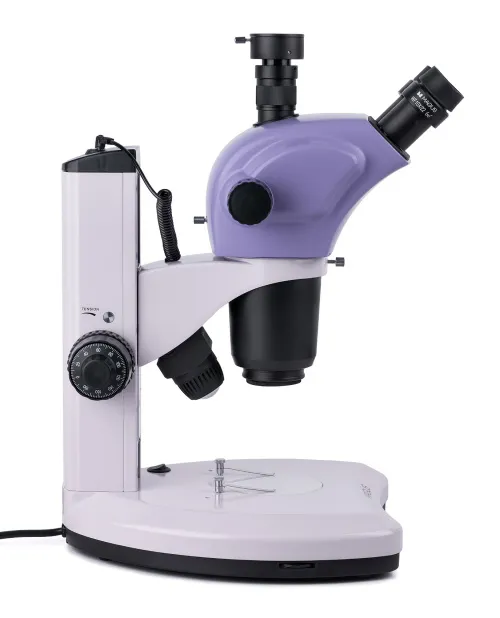

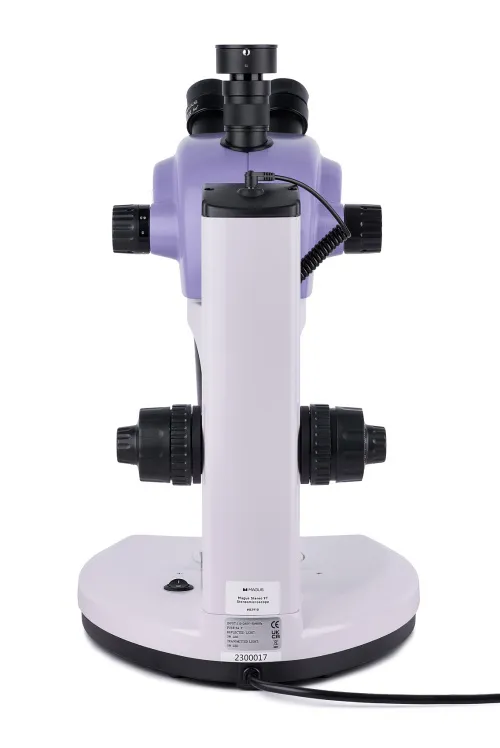

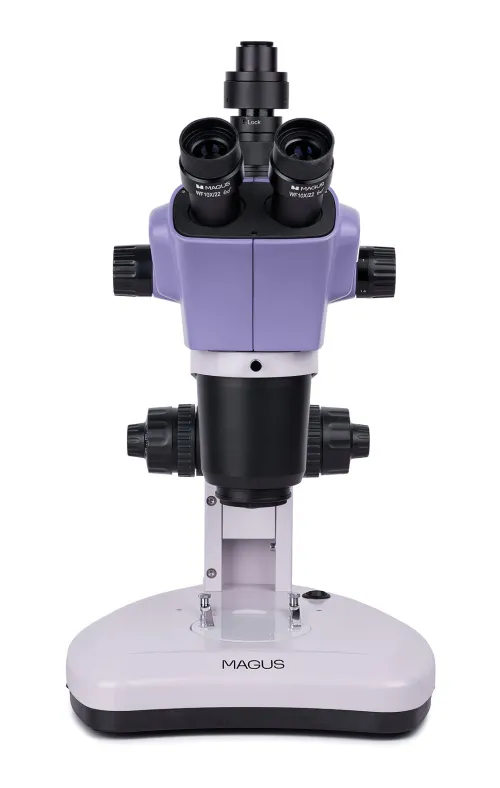

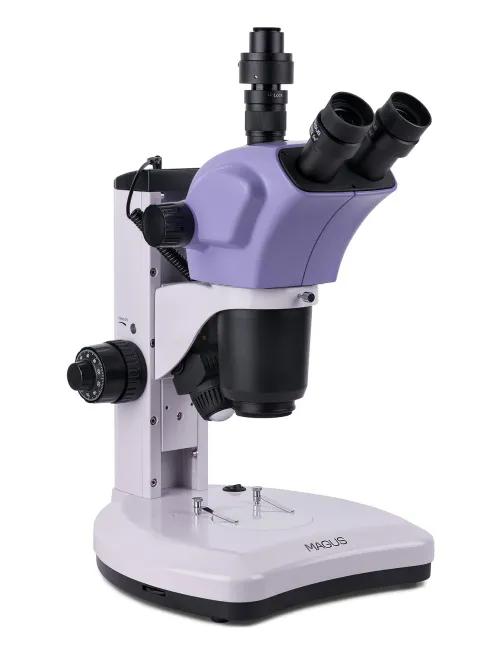

MAGUS Stereo 9T Stereomicroscope

The MAGUS Stereo 9T Stereomicroscope forms a non-inverted three-dimensional image and has a large working distance. You can examine samples but also conduct experiments with them. The Greenough optical scheme produces images that are sharp and three-dimensional which is essential for high-precision observations. The microscope is equipped with a zoom lens and two illuminators (transmitted and reflected light) and can be optionally upgraded with additional accessories. Excellent choice for restoration, soldering, modeling, machinery service repair, and quality control.

Optics

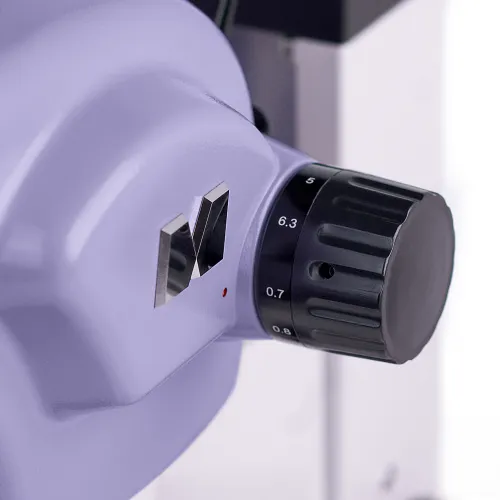

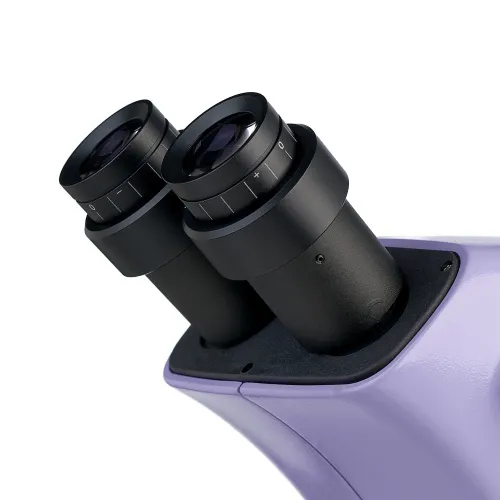

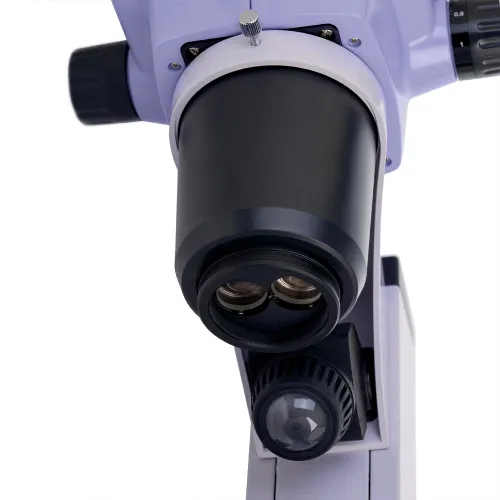

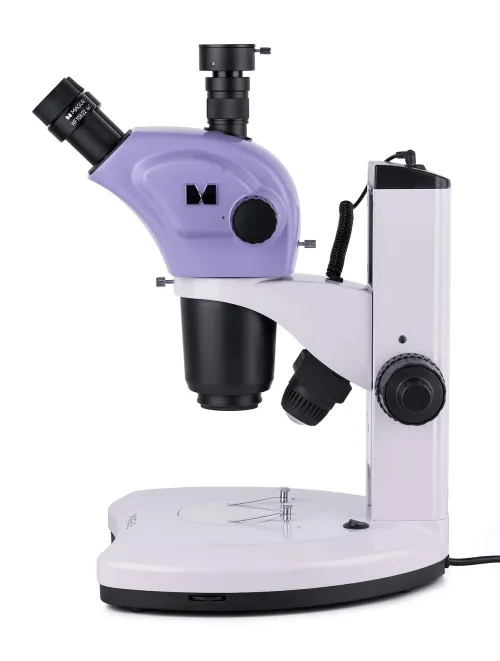

The microscope has a trinocular head with a trinocular tube for mounting a camera. A C-mount adapter is included, but a digital camera must be purchased separately. The trinocular head rotates 360°. The zoom objective combined with a 10x eyepiece provides magnification from 7x to 63x. Thanks to the zoom lens, the magnification changes without reducing the focus. If you use auxiliary objectives (not included), you can change the magnification range, working distance, and field of view of the microscope. With optional accessories, the magnification of the microscope can be increased up to 315x.

Illumination

The working area is lit by two LED illuminators: 5W transmitted light illuminator and 3W reflected light (oblique) illuminator. Both illuminators are AC powered, bright, do not change color temperature when adjusting brightness, and have a 50,000-hour life.

Stage and focusing mechanism

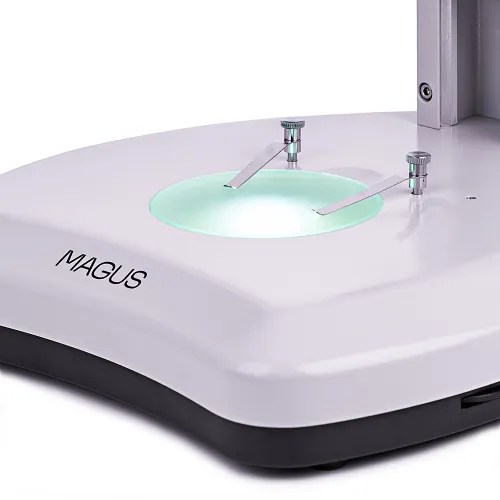

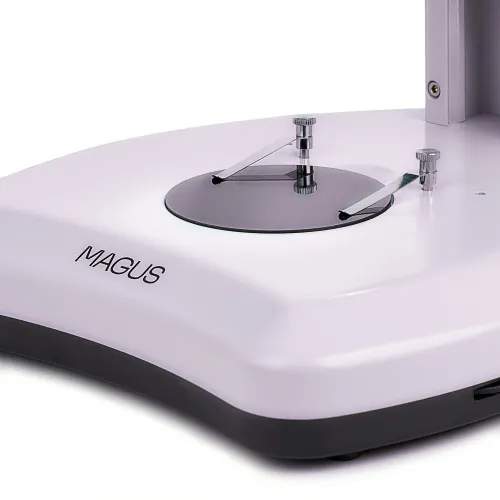

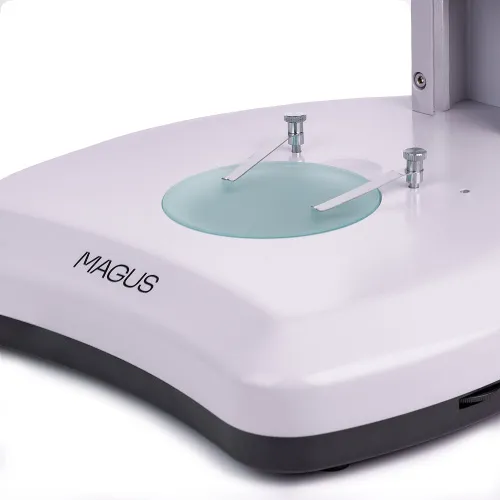

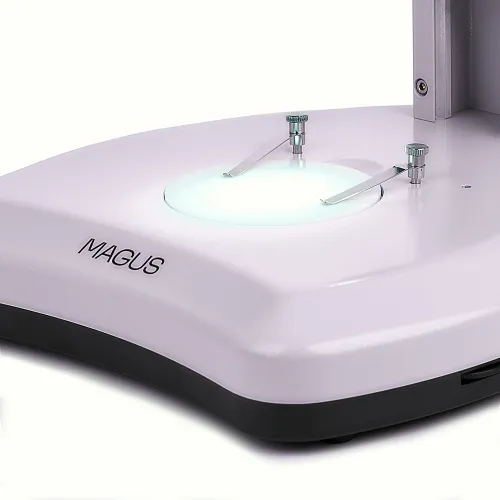

One of the included plates is installed on the stage: double-sided black and white, white, or transparent. The first plate is used for observing opaque objects and makes the image high contrast. Dark-colored samples are examined on the white side, while light-colored samples - on the black side. White and transparent plates are used when you are observing translucent and transparent samples and want to achieve maximum brightness and uniform illumination of the working area.

The microscope has a coarse and fine focusing mechanism. Fine focusing is used at magnifications above 40x. Coarse focusing has tension adjustment.

Accessories

To extend the microscope’s capabilities, use additional accessories such as eyepieces, auxiliary lenses, calibration slides, and digital cameras. It is also possible to install a device for polarized light observations.

Key features:

• Zoom objective with a zoom ratio of 9:1
• 360° rotation of the trinocular head, trinocular tube for photo and video shooting
• Greenough optical scheme, three-dimensional image with a large depth of field
• Transmitted and reflected (oblique) illumination, two durable LED illuminators
• Optional accessories to improve microscope performance

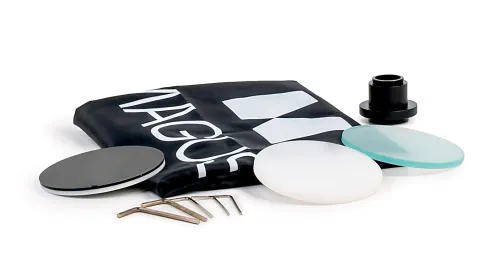

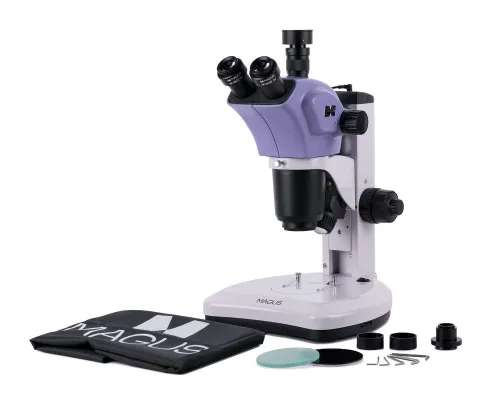

The kit includes:

• Base with integrated transmitted light source and power supply unit
• Stand with focusing mechanism
• Trinocular head
• Eyepiece 10x/22 mm (2 pcs.)
• Black-and-white stage plate
• White plate
• Transparent plate
• Reflected light oblique illuminator
• C-mount adapter
• AC power cord
• Dust cover
• User manual and warranty card

Available on request:

• 15x/15mm eyepiece (2 pcs.)
• 16x/15mm eyepiece (2 pcs.)
• 20x/12mm eyepiece (2 pcs.)
• 25x/9mm eyepiece (2 pcs.)
• Auxiliary objective 0.5x
• Auxiliary objective 2x
• Reflected ring light illuminator
• Polarization device
• Digital camera
• Calibration slide
