Magnification: 8–65x. CMO system. Binocular head, LED transmitted light illuminator 6W, LED reflected light oblique illuminator 3W

Binocular
The microscope head is a core element of the microscope that you look through to see a magnified sample
8 — 65
How much the size of a sample increases when you observe it through a microscope
Laboratory/medical, for applied research
Application and use of the microscope
Availability

Product ID 83488
Brand MAGUS
Warranty 5 years
EAN 5905555019543
Package size (LxWxH) 18.1x17.3x24.4 in
Shipping Weight 20.3 lb
Description

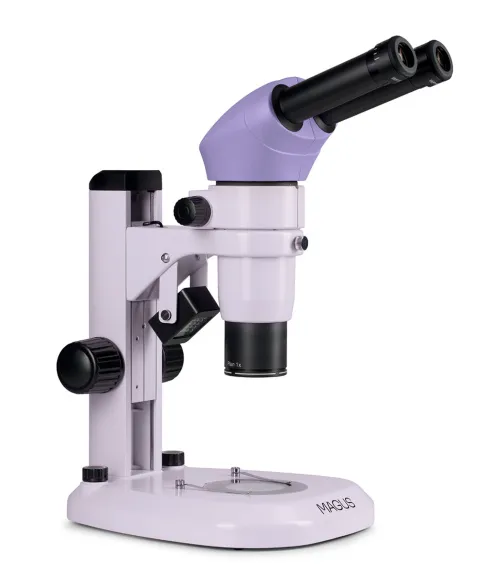

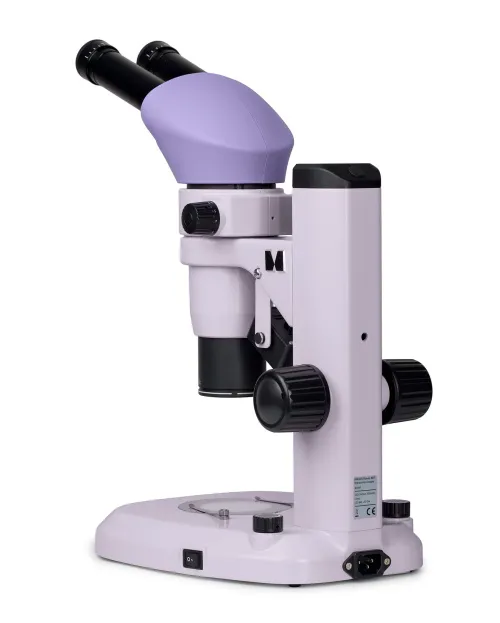

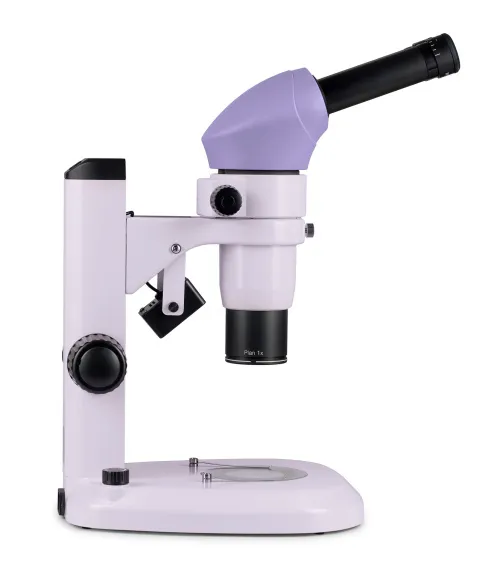

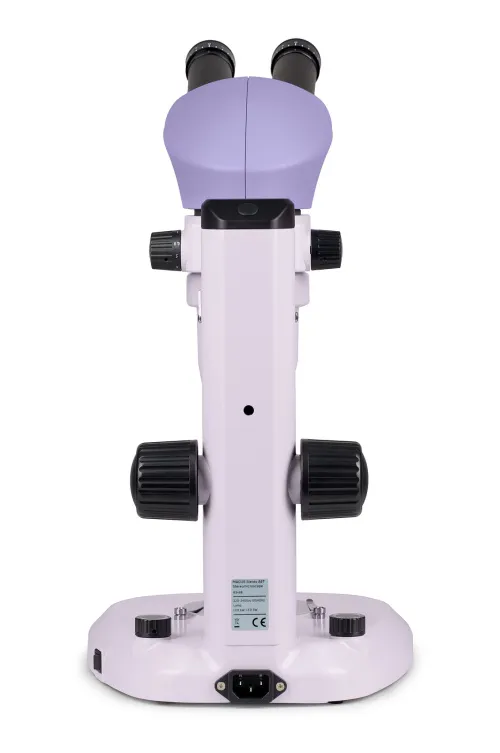

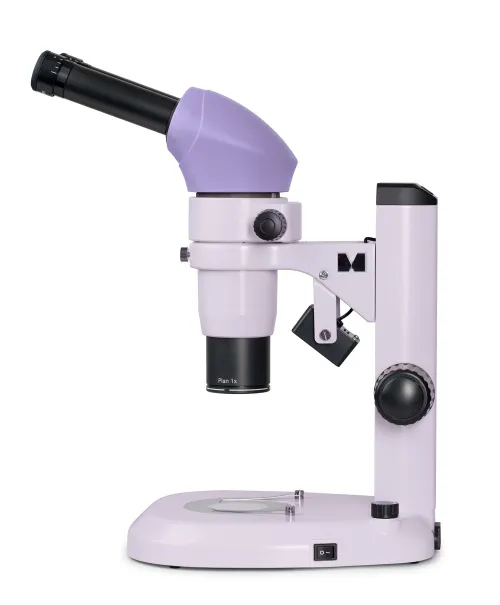

MAGUS Stereo A8 is a research grade stereomicroscope. This model works with three-dimensional objects and creates their image in 3D: The researcher has the opportunity to examine the topographical features of the object and estimate its dimensions in three dimensions. The microscope works with transparent and opaque specimens; for this purpose, it is equipped with illuminators for transmitted and reflected light.
The microscope is designed according to the CMO (Common Main Objective) system. It features a large field of view, image display without geometric distortion as well as high resolution and a high level of color rendering. Additional accessories can add extra functionality to the microscope.
The MAGUS Stereo A8 model is suitable for forensic examination, medical, biological, archaeological research, for work in the field of microelectronics, materials science, and for industrial quality control.

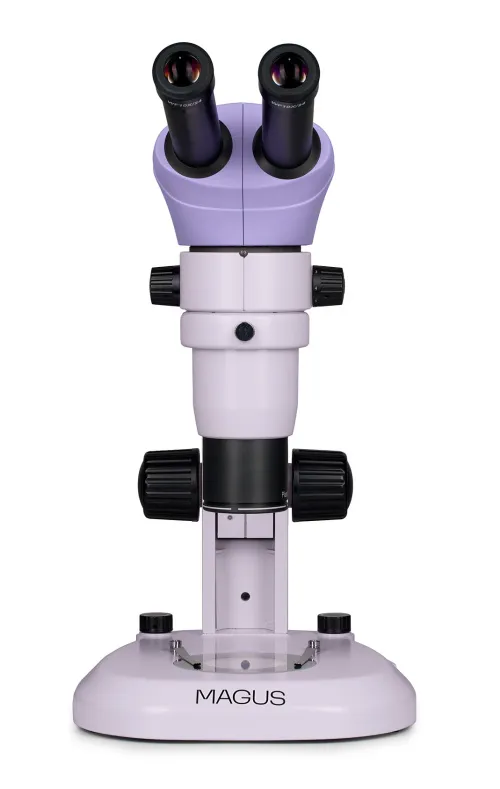

The microscope has a binocular head, with the tubes installed at a 20 degree angle. They do not have a diopter adjustment system: If you need to adjust the sharpness to suit your particular vision, use eyepieces with a diopter adjustment ring. You can install a digital camera in the microscope head: mounted in the intermediate attachment, it will require a C-mount adapter.

In a CMO system stereomicroscope, two optical channels that pass through the eyepiece tubes join in the main objective. It is located at right angles to the plane of the observation object, which means the image of the object is not deformed. The stereoscopic angle is 11 degrees: The object is visible in three dimensions. The MAGUS Stereo A8 model is equipped with a plan achromatic objective with 1x magnification. The plan achromatic objective corrects spherical and chromatic distortions; the working distance of the microscope is 78mm.

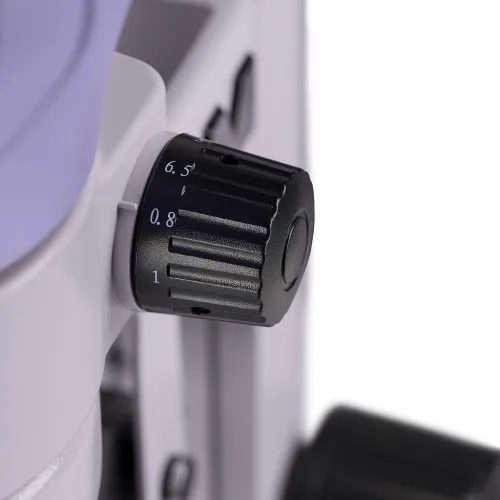

The zoom objective in the tubes simultaneously changes magnification and focal length, constantly maintaining a clear and focused image of the object. The image is initially formed in a direct, non-inverted form. The zoom ratio of the MAGUS Stereo A8 microscope is 8:1.

You can adjust the focused image using the focusing knobs. They are located coaxially. The travel tension can be adjusted.

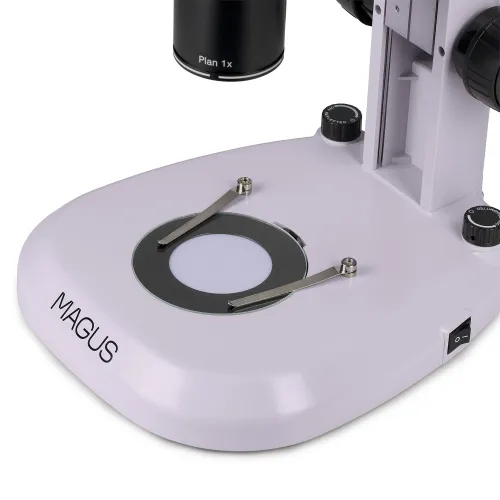

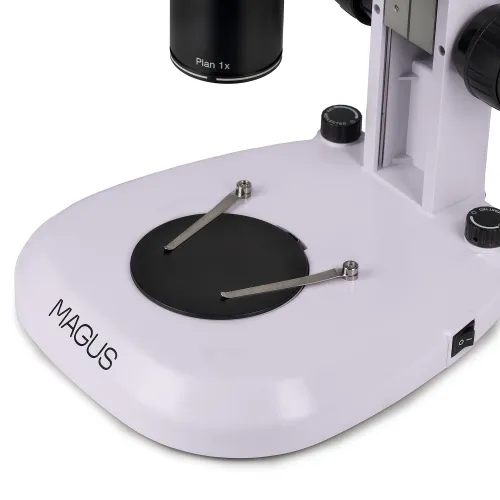

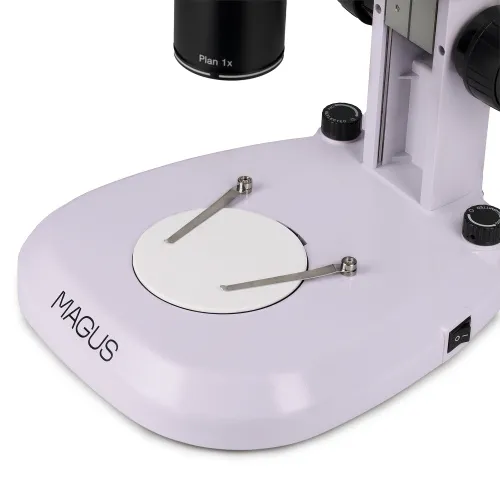

The specimen stage is equipped with two plates. The transparent plate is used for transparent and translucent samples and for studies in transmitted light. It helps to achieve even illumination of the subject. The black-and-white plate serves as a background for opaque objects depending on contrast: Light samples are examined on a black substrate, and dark ones on a white one.

The illumination source in the microscope is LEDs. There are two illuminators: transmitted light (6W) and reflected oblique light (3W). The operating life of the LEDs is 50,000 hours.

Accessories in the microscope can be swapped to achieve the desired technical characteristics. Eyepieces affect the magnification. The main objective is intended for magnification, working distance, and field of view width. To take measurements when examining an object, you can use calibration slides with a division value of 0.1mm.

Key features:

  • Research-grade stereomicroscope; technical characteristics can be adjusted with replaceable accessories and add-ons
  • Works with transparent and opaque specimens using transmitted and reflected oblique light illuminators
  • Light source: LEDs
  • Features the CMO system: It has a large field of view and displays images without geometric distortion
  • The binocular head can be supplemented with a digital camera
  • The main plan achromatic objective has 1x magnification
  • Zoom gives 8x magnification
  • Two stage plates for different types of studies

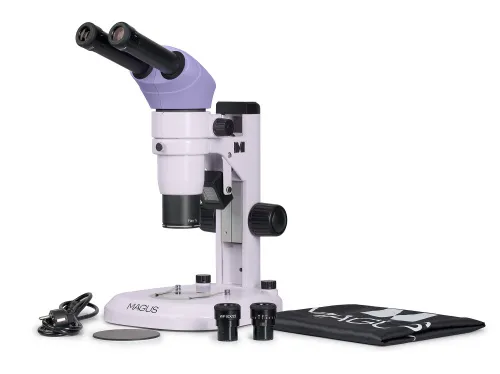

The kit includes:

  • Base with an integrated transmitted light source and power supply unit
  • Stand with a focusing mechanism
  • Binocular head
  • Zoom objective 0.8–6.5х
  • Plan achromatic main objective 1x
  • Eyepiece 10x/22mm with diopter adjustment (2 pcs.)
  • Eyepiece 10x/24mm with diopter adjustment (2 pcs.)
  • Black-and-white plate
  • Transparent plate
  • Reflected light oblique illuminator
  • AC power cord
  • Dust cover
  • User manual and warranty card

Available on request:

  • 15x/16mm eyepiece (2 pcs.)
  • 20x/12mm eyepiece (2 pcs.)
  • Achromatic main objective 0.3x
  • Plan achromatic main objective 0.5x
  • Plan achromatic main objective 2x
  • Calibration slide
specifications
Product ID 83488
Brand MAGUS
Warranty 5 years
EAN 5905555019543
Package size (LxWxH) 18.1x17.3x24.4 in
Shipping Weight 20.3 lb
Type stereo/instrumental
Head binocular
Head inclination angle 20°
Magnification, x 8 — 65
Magnification, x (optional) 2.4–256
Zoom ratio 8:1
Eyepiece tube diameter, in 1.2
Eyepieces 10x/22mm, 10x/24mm (*optional: 15x/16mm, 20х/12mm)
Objectives main objective: plan achromatic 1x (*optional: achromatic 0.3x, plan achromatic 0.5x, plan achromatic 2x); zoom objective: 0.8–6.4х
Working distance, in 3.1
Interpupillary distance, in 2.2 — 3
Field of view, mm 30–3.43 (with 10x/24mm eyepiece)
Stage features black/white plate, glass plate
Eyepiece diopter adjustment, diopters ±5D on each eyepiece
Eyepiece diopter adjustment
Focus coaxial, coarse (105mm, with coarse focusing tension adjustment)
Illumination LED
Brightness adjustment
Power supply 220V/50Hz, AC network, via power adapter 5V, 2A
Light source type reflected light: oblique illuminator – 3W LED; transmitted light: 6W LED
Operating temperature range, °F 41...+95
User level experienced users, professionals
Assembly and installation difficulty level complicated
Optical scheme CMO stereomicroscope
Application laboratory/medical, for applied research
Illumination location dual
Research method bright field
Pouch/case/bag in set dust cover
