With a camera. Magnification: 7–63x. The Greenough optical design. Trinocular head, LED transmitted light illuminator 5W, LED reflected light oblique illuminator 3W

The microscope head is a core element of the microscope that you look through to see a magnified sample
7–63 basic configuration (*optional: 3.5–315); zoom ratio 9:1
How much the size of a sample increases when you observe it through a microscope
For applied research
Application and use of the microscope

Product ID 83044
Warranty 5 years
EAN 5905555018577
Package size (LxWxH) 17.3x16.5x26.4 in
Shipping Weight 26.7 lb

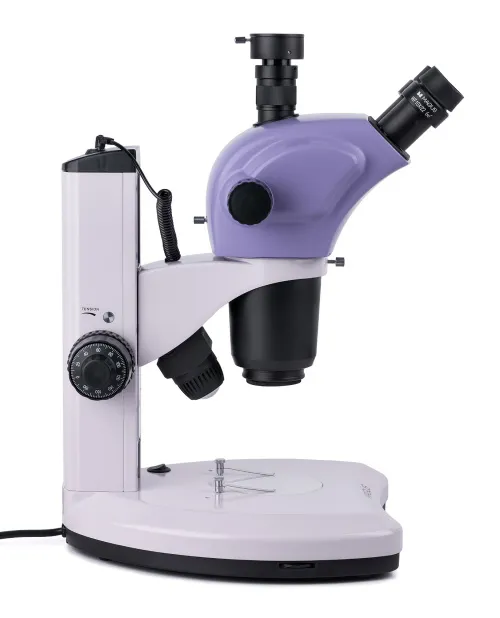

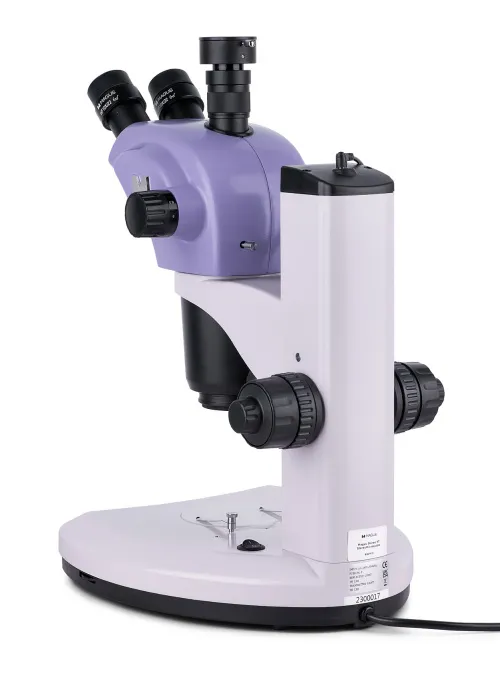

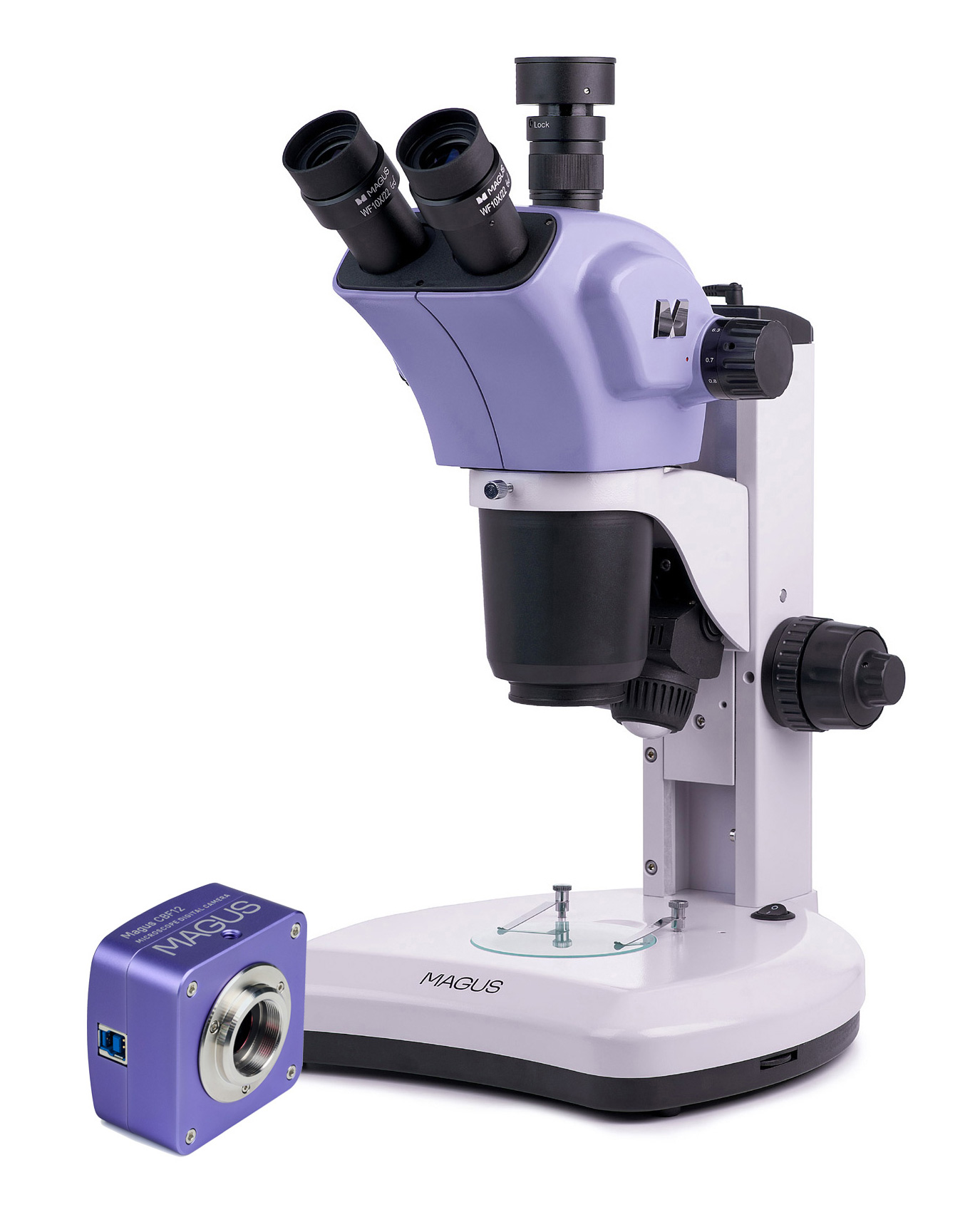

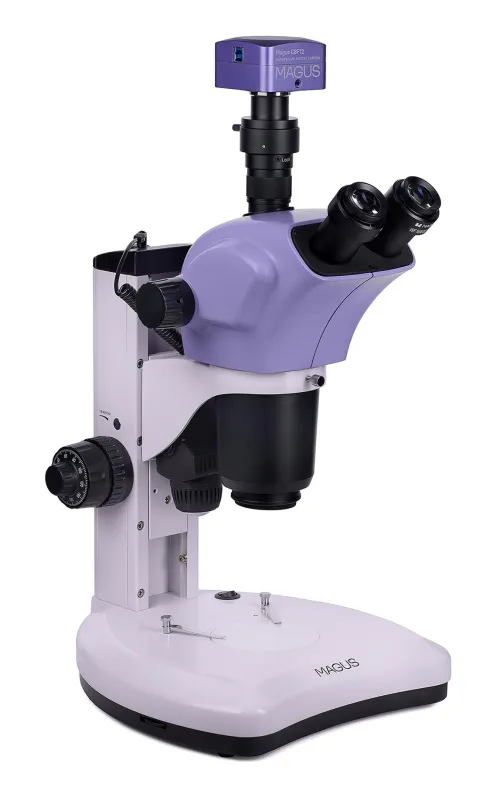

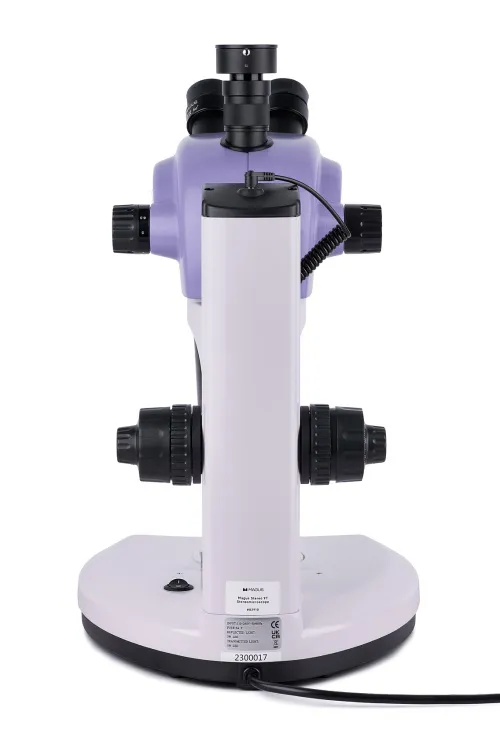

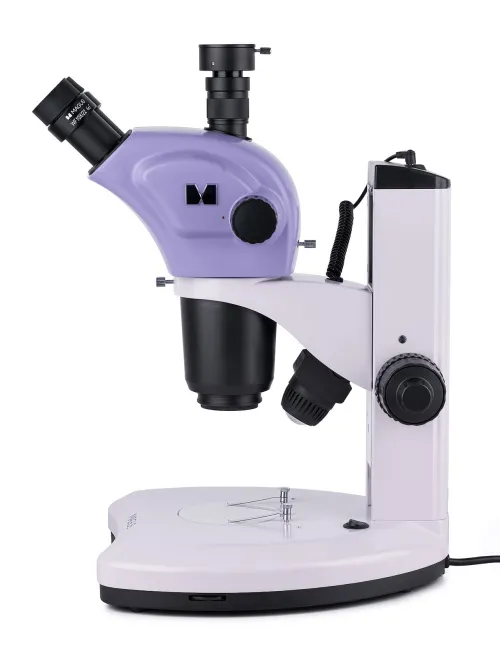

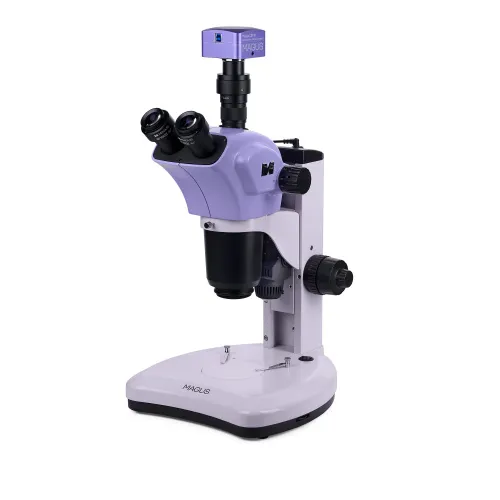

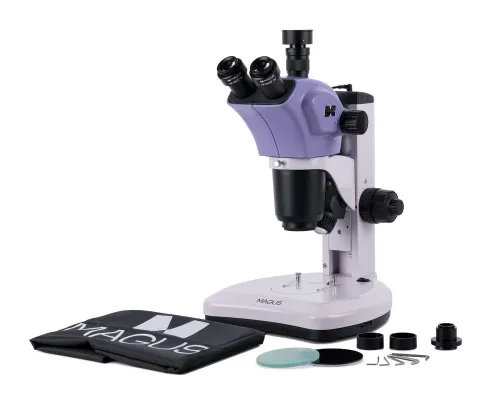

The MAGUS Stereo D9T Stereomicroscope forms a non-inverted three-dimensional image and has a large working distance. You can examine samples but also conduct experiments with them. The Greenough optical scheme produces images that are sharp and three-dimensional which is essential for high-precision observations. The microscope is equipped with a zoom lens and two illuminators (transmitted and reflected light) and can be optionally upgraded with additional accessories. Excellent choice for restoration, soldering, modeling, machinery service repair, and quality control.

Digital camera

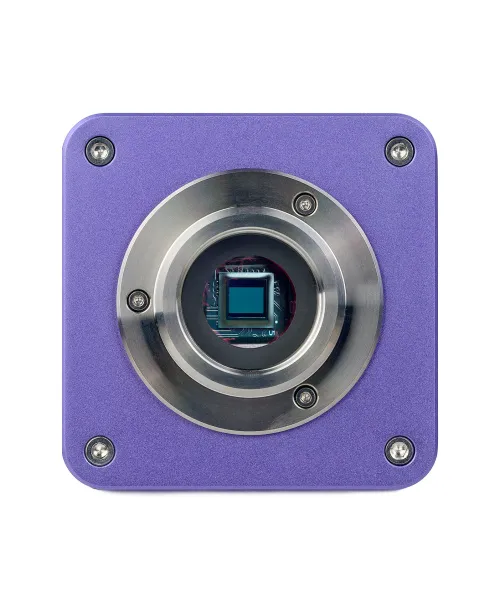

The MAGUS CBF10 Digital Camera is designed to work together with a microscope: photographing, video recording, and displaying images on an external screen. Its characteristics are best suited for brightfield work on 4x and 10x flat-field microscope objectives and stereomicroscopes.

The MAGUS CBF10 camera is equipped with an Aptina CMOS sensor with a light sensitivity of 0.62mV/lux/s. You can get the maximum field of view without distortion using an adapter with magnification from 0.4x to 0.6x.

The 18MP sensor enables you to achieve a realistic and highly detailed picture with a resolution of 4912x3684px. In this mode, video is captured at 13.1fps. You can increase the frame rate and, as a result, improve the smoothness of the video by reducing the resolution. Available options: 2456x1842px (34.3fps) and 1228x922px (54.4fps). In any of the selected modes, adjusting the focus of the microscope is convenient. The modes with increased frame rates are suitable for studying moving objects and fast-flowing processes as well as for presentations and demonstrations.

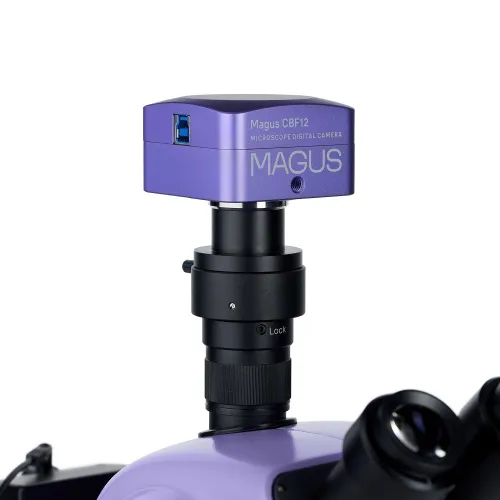

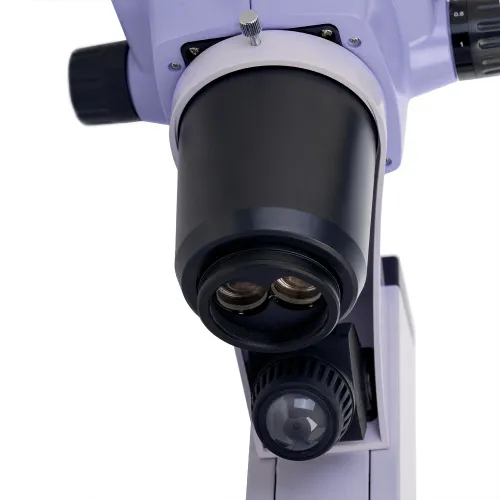

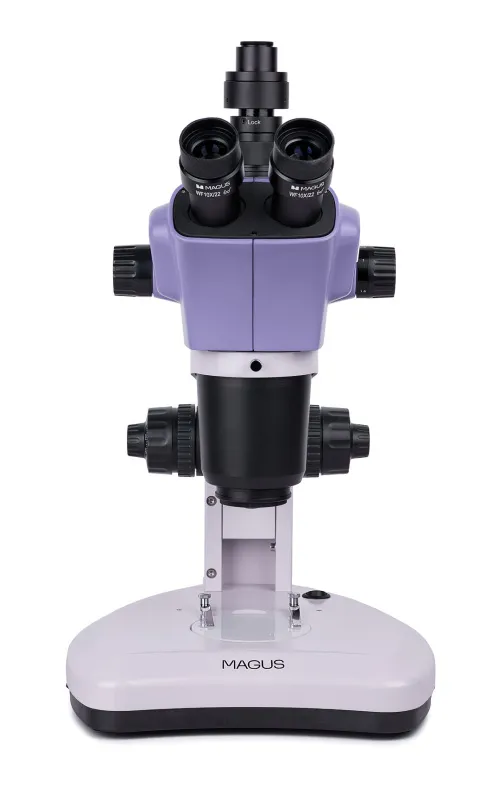

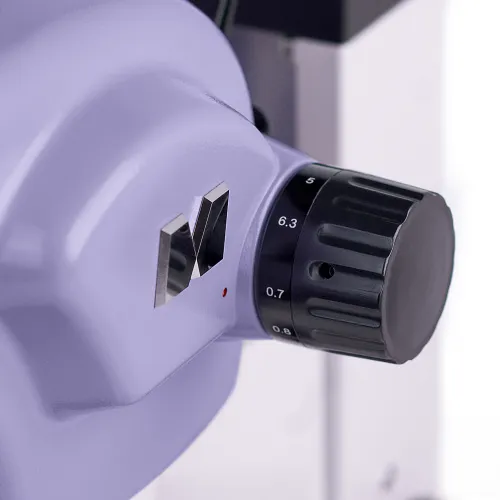

The microscope has a trinocular head with a trinocular tube for mounting a camera. A C-mount adapter is included, but a digital camera must be purchased separately. The trinocular head rotates 360°. The zoom objective combined with a 10x eyepiece provides magnification from 7x to 63x. Thanks to the zoom lens, the magnification changes without reducing the focus. If you use auxiliary objectives (not included), you can change the magnification range, working distance, and field of view of the microscope. With optional accessories, the magnification of the microscope can be increased up to 315x.

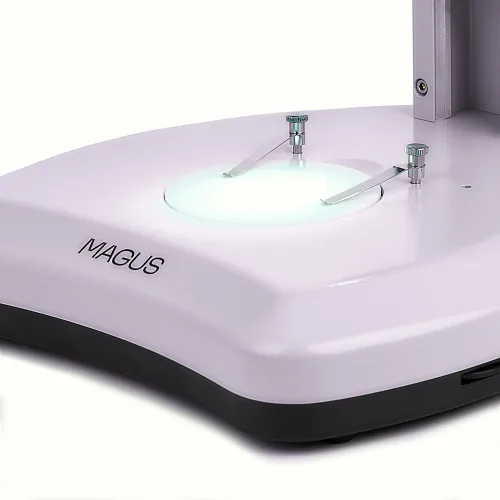

The working area is lit by two LED illuminators: 5W transmitted light illuminator and 3W reflected light (oblique) illuminator. Both illuminators are AC powered, bright, do not change color temperature when adjusting brightness, and have a 50,000-hour life.

Stage and focusing mechanism

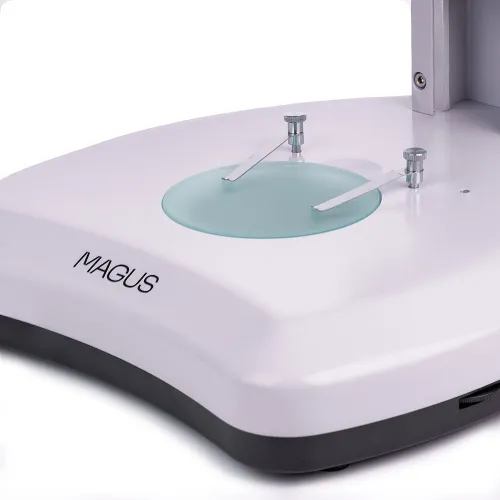

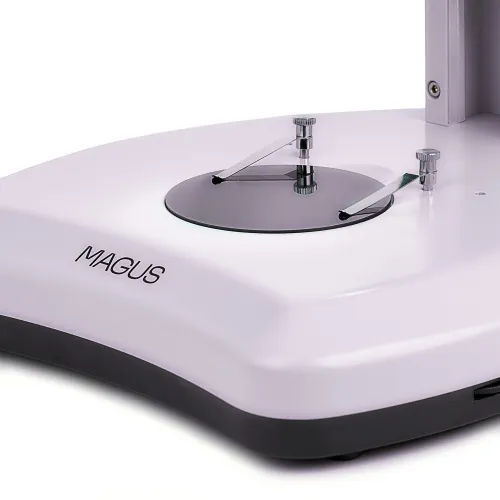

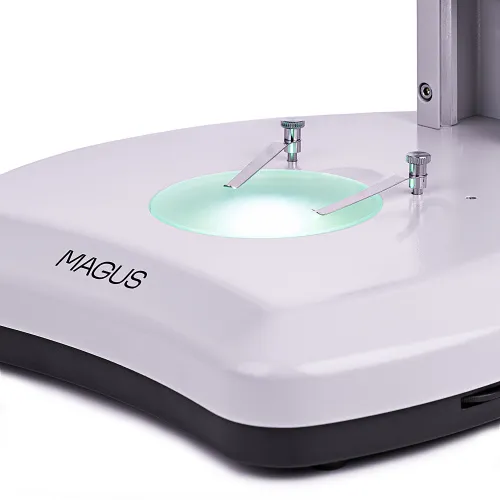

One of the included plates is installed on the stage: double-sided black and white, white, or transparent. The first plate is used for observing opaque objects and makes the image high contrast. Dark-colored samples are examined on the white side, while light-colored samples - on the black side. White and transparent plates are used when you are observing translucent and transparent samples and want to achieve maximum brightness and uniform illumination of the working area.

The microscope has a coarse and fine focusing mechanism. Fine focusing is used at magnifications above 40x. Coarse focusing has tension adjustment.


To extend the microscope’s capabilities, use additional accessories such as eyepieces, auxiliary lenses, calibration slides, and digital cameras. It is also possible to install a device for polarized light observations.

Key features of the microscope:

  • Zoom objective with a zoom ratio of 9:1
  • 360° rotation of the trinocular head, trinocular tube for photo and video shooting
  • Greenough optical scheme, three-dimensional image with a large depth of field
  • Transmitted and reflected (oblique) illumination, two durable LED illuminators
  • Optional accessories to improve microscope performance

Key features of the camera:

  • Aptina CMOS sensor with high light sensitivity
  • 18MP sensor resolution: highly detailed images on low magnification objectives
  • Frame rate sufficient for focus adjustment: 13.1fps with a resolution of 4912x3684px
  • Classroom demonstrations and observing moving objects made simple, all thanks to increasing the frame rate while decreasing the resolution; movement of the sample is visible without jerking
  • USB3.0 provides 10 times faster data transfer speeds than USB2.0
  • Software for creating photos and videos as well as displaying and editing in real time

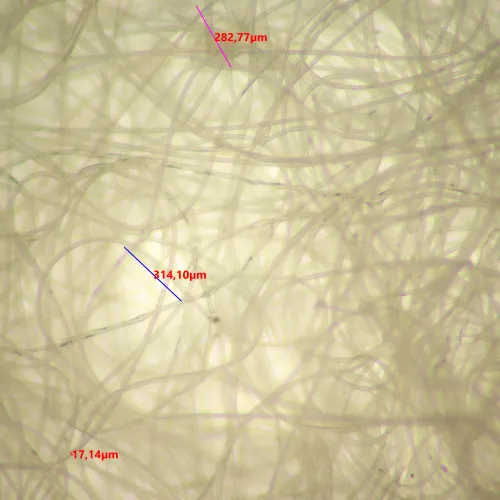

  • Linear and angular measurements

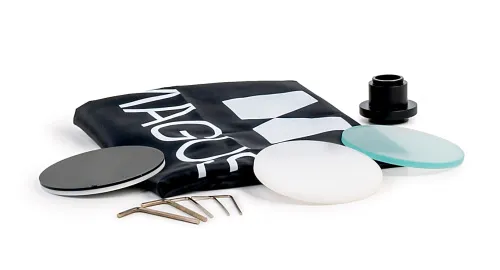

The kit includes:

  • MAGUS CBF10 Digital Camera (digital camera, USB cable, installation CD with drivers and software, user manual and warranty card)
  • Base with integrated transmitted light source and power supply unit
  • Stand with focusing mechanism
  • Trinocular head
  • Eyepiece 10x/22 mm (2 pcs.)
  • Black-and-white stage plate
  • White plate
  • Transparent plate
  • Reflected light oblique illuminator
  • C-mount adapter
  • AC power cord
  • Dust cover
  • User manual and warranty card

Available on request:

  • 15x/15mm eyepiece (2 pcs.)
  • 16x/15mm eyepiece (2 pcs.)
  • 20x/12mm eyepiece (2 pcs.)
  • 25x/9mm eyepiece (2 pcs.)
  • Auxiliary objective 0.5x
  • Auxiliary objective 2x
  • Reflected ring light illuminator
  • Polarization device
  • Calibration slide
Product ID 83044
Warranty 5 years
EAN 5905555018577
Package size (LxWxH) 17.3x16.5x26.4 in
Shipping Weight 26.7 lb
Microscope specifications
Type digital, stereo/instrumental
Head trinocular
Nozzle 360 ° rotatable
Head inclination angle 45 °
Magnification, x 7–63 basic configuration (*optional: 3.5–315); zoom ratio 9:1
Eyepiece tube diameter, in 1.2

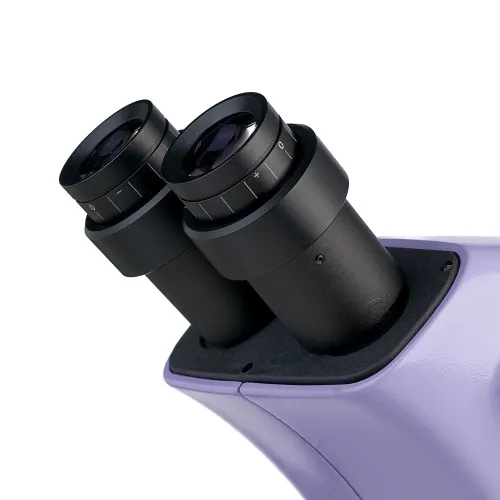

Eyepieces 10x/22mm, long eye relief (*optional: 15x/15mm, 16x/15mm, 20x/12mm, 25x/9mm)
Objectives 0.7–6.3x (*optional: with 0.5x auxiliary objective: 0.35–3.15x; with 2x auxiliary objective: 1.4–12.6x)
Working distance, mm 110 (with 0.5x auxiliary objective: 188; with 2x auxiliary objective: 40.4)
Interpupillary distance, in 2.1 — 3
Field of view, mm 31.43–3.49 (with 0.5x auxiliary objective: 62.85–6.98; with 2x auxiliary objective: 15.71–1.745), with a 10x eyepiece
Stage, mm Ø90
Stage features white plate, black/white plate, transparent plate
Eyepiece diopter adjustment, diopters ±5D on each eyepiece
Focus coaxial, coarse (83mm, with coarse focusing tension adjustment) and fine (0.002mm)
Illumination LED
Brightness adjustment
Power supply 220V/50Hz, AC network
Light source type reflected light: oblique illuminator – 3W LED; transmitted light: 5W LED
Ability to connect additional equipment polarization device
User level experienced users, professionals
Assembly and installation difficulty level complicated
Optical scheme Greenough
Application for applied research
Illumination location dual
Research method bright field
Pouch/case/bag in set dust cover
Weight, lbs 17.6
Dimensions, in 11x18.2x13.2
Camera specifications
Sensor Aptina CMOS
Color/monochrome color
Megapixels 18
Maximum resolution, pix 4912x3684
Sensor size 1/2.3" (6.14x4.61mm)
Pixel size, μm 1.25x1.25
Light sensitivity 0.62mV/lux/s
Signal/noise ratio 36.3dB
Exposure time 0.1ms–2s
Video recording
Video recording yes
Frame rate, fps at resolution 54.4@1228x922, 34.3@2456x1842, 13.1@4912x3684
Active range, dB 65.8
Place of installation trinocular tube, eyepiece tube instead of an eyepiece
Image format *.jpg, *.bmp, *.png, *.tif
Video format output: *.wmv, *.avi, *.h264 (Windows 8 and later), *h265 (Windows 10 and later)
Spectral range, nm 380–650 (built-in IR filter)
Shutter type ERS (electronic rolling shutter)
White balance manual, automatic
Exposure control manual, automatic
Software features image size, brightness, exposure time
Software MAGUS View
Output USB 3.0, 5Gb/s
System requirements Windows 8/10/11 (32bit and 64bit), Mac OS X, Linux, up to 2.8GHz Intel Core 2 or higher, minimum 2GB RAM, USB 3.0 port, CD-ROM, 17" or larger display
Mount type C-mount
Body solid aluminum
Camera power supply DC, 5V, from computer USB port; a 12V, 3A adapter for Peltier element
Camera operating temperature range, °F -10...+50
Operating humidity range, % 30 — 80
