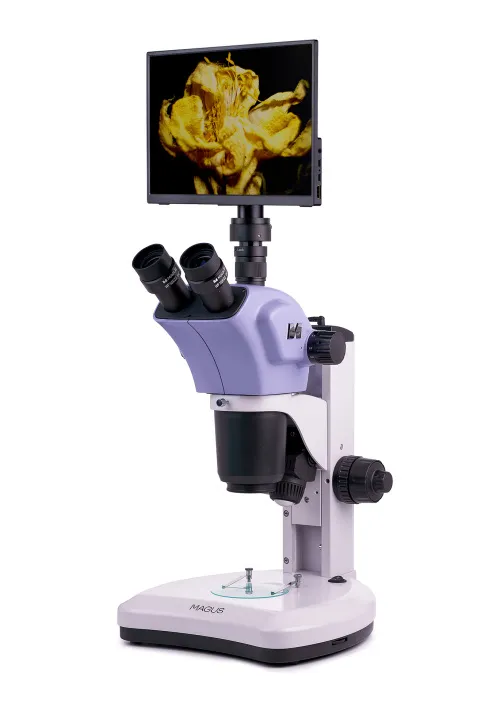

With a camera and monitor. Magnification: 7–63x. The Greenough optical design. Trinocular head, LED transmitted light illuminator 5W, LED reflected light oblique illuminator 3W

Trinocular, digital screen/PC monitor
The microscope head is a core element of the microscope that you look through to see a magnified sample
7 — 63
How much the size of a sample increases when you observe it through a microscope
For applied research
Application and use of the microscope
Availability

Product ID 83045
Brand MAGUS
Warranty 5 years
EAN 5905555018584
Package size (LxWxH) 17.3x16.5x26.4 in
Shipping Weight 30.1 lb
Description

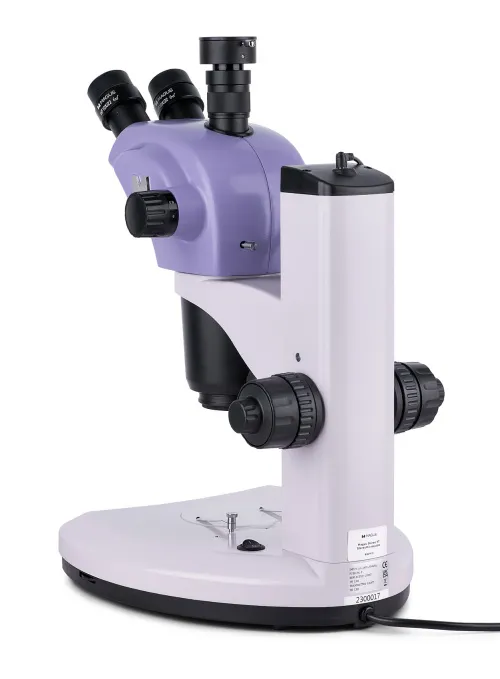

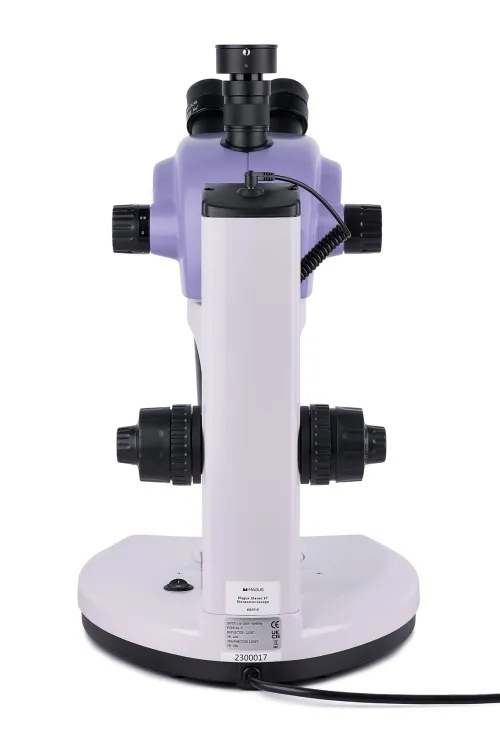

The MAGUS Stereo D9T LCD Stereomicroscope forms a non-inverted three-dimensional image and has a large working distance. You can examine samples but also conduct experiments with them. The Greenough optical scheme produces images that are sharp and three-dimensional which is essential for high-precision observations. The microscope is equipped with a zoom lens and two illuminators (transmitted and reflected light) and can be optionally upgraded with additional accessories. Excellent choice for restoration, soldering, modeling, machinery service repair, and quality control.

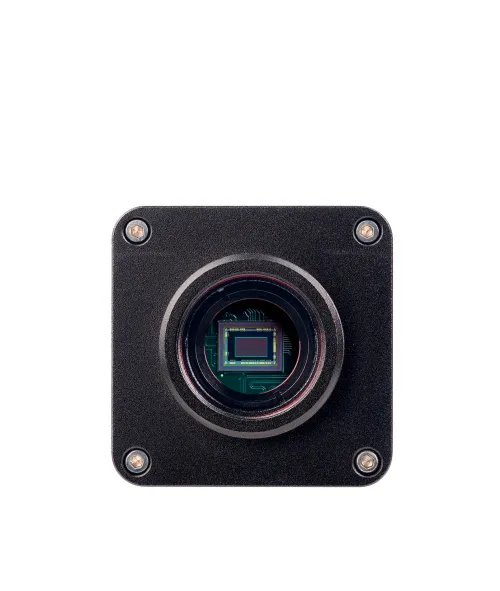

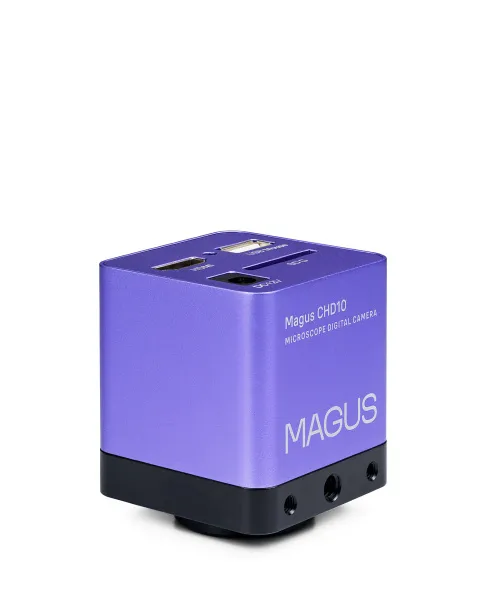

Digital camera

The digital HDMI-camera MAGUS CHD10 is equipped with a 2MP sensor and produces realistic Full HD images at a resolution of 1920x1080px. It is an autonomous camera that does not require connection to a computer or the installation of additional software. The camera can be connected directly to a TV, monitor, or projector to display an image. The HDMI interface provides a high and stable transfer rate from the camera to the external screen. Video is recorded at 60fps. The camera combines high FPS and high bandwidth HDMI. Therefore, videos are vivid, with no freezes or gaps between frames. At maximum resolution, the image is well-detailed, moving objects are visible without bugs, and object movement is displayed without delays.

Monitor

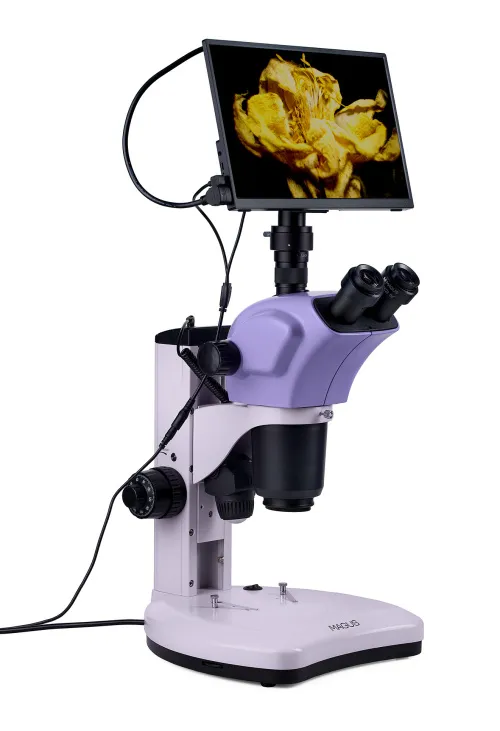

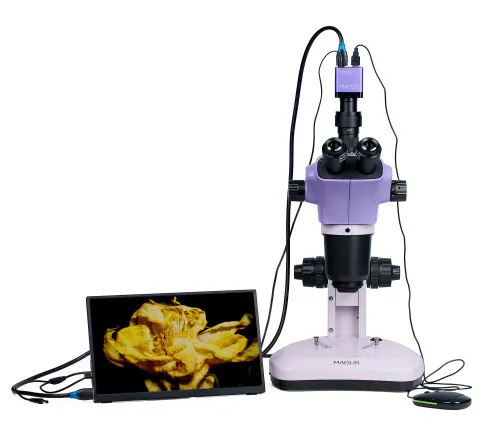

MAGUS MCD monitors work in combination with MAGUS CHD cameras to form a complete imaging system for MAGUS microscopes.
The connection to the camera occurs via its HDMI interface. The monitor displays real-time images. Its IPS LCD display has a wide viewing angle, high brightness, and good contrast. When looking at the screen even from a large angle, the image is not distorted. The screen size is 13.3''.

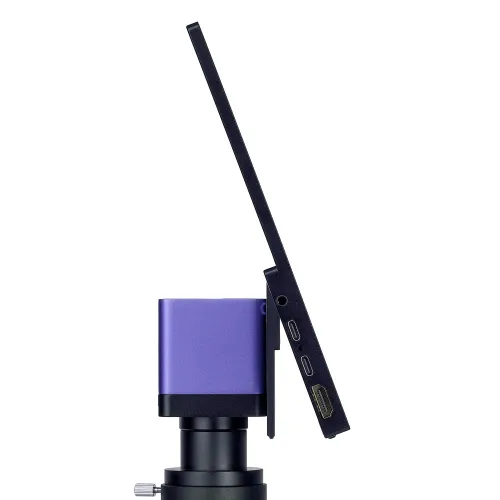

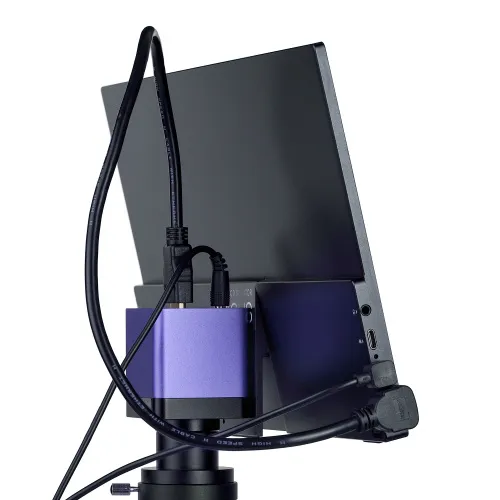

The monitor can be installed on a horizontal surface using a folding stand or mounted directly on a camera or tripod.

Optics

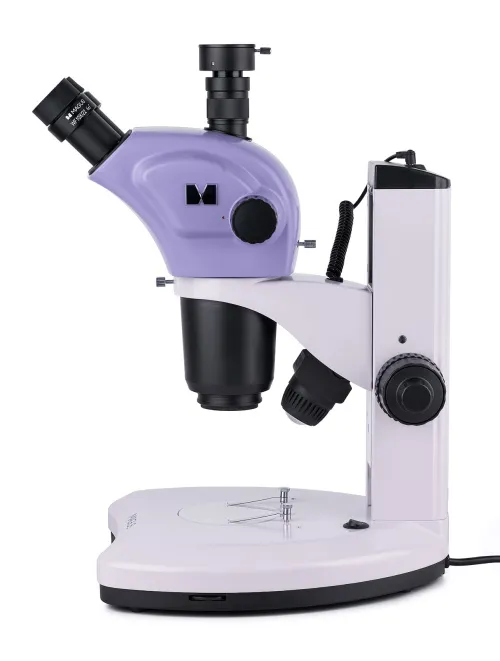

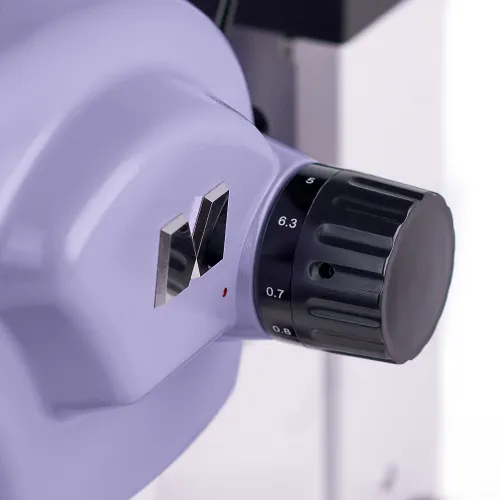

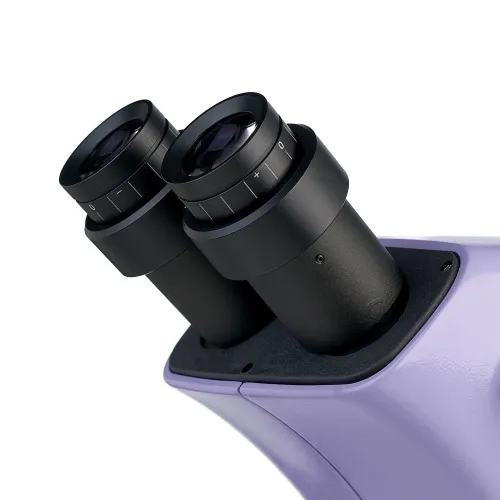

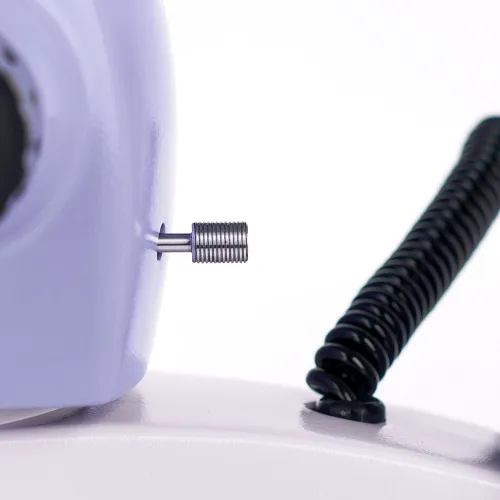

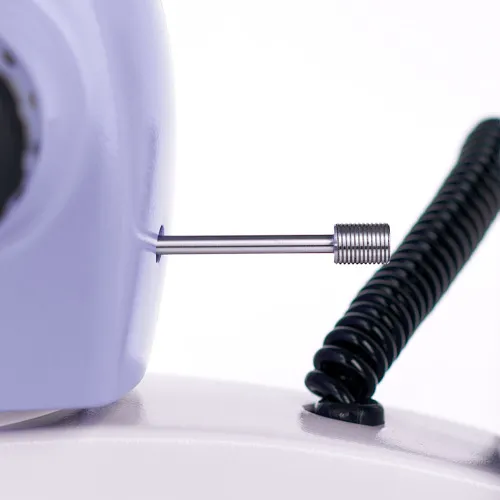

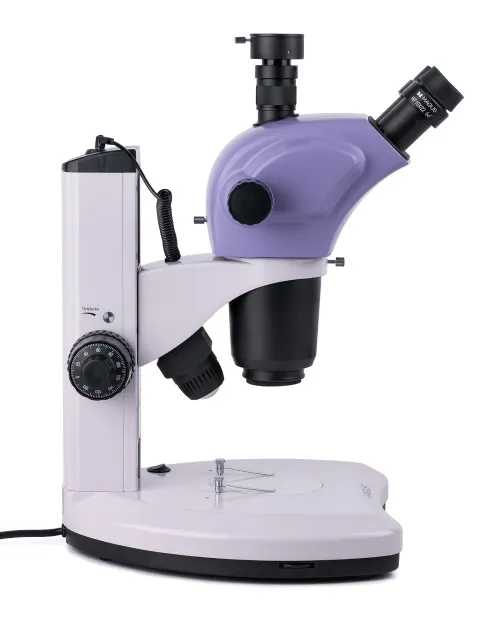

The microscope has a trinocular head with a trinocular tube for mounting a camera. A C-mount adapter is included, but a digital camera must be purchased separately. The trinocular head rotates 360°. The zoom objective combined with a 10x eyepiece provides magnification from 7x to 63x. Thanks to the zoom lens, the magnification changes without reducing the focus. If you use auxiliary objectives (not included), you can change the magnification range, working distance, and field of view of the microscope. With optional accessories, the magnification of the microscope can be increased up to 315x.

Illumination

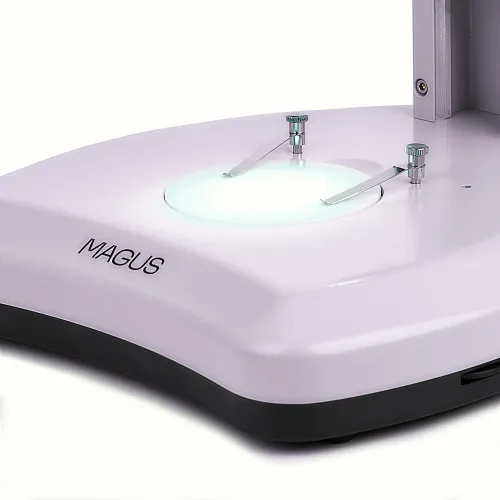

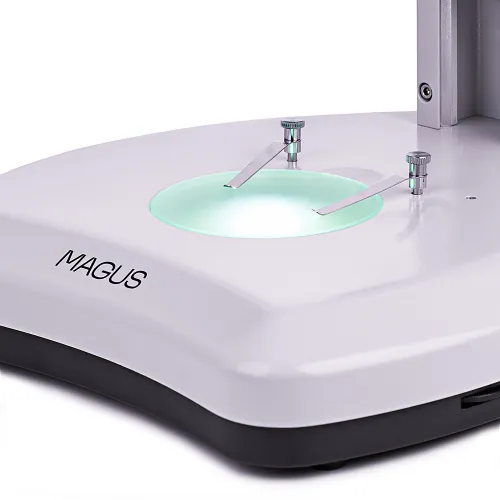

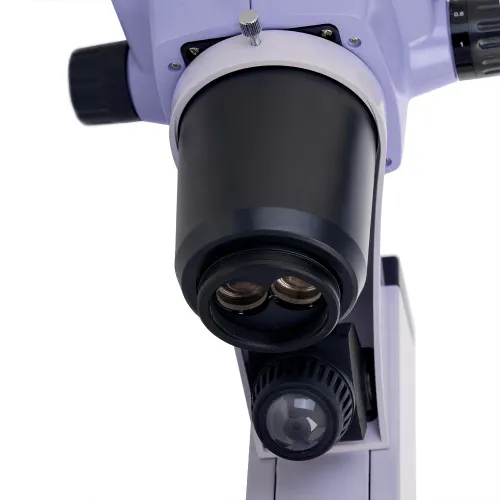

The working area is lit by two LED illuminators: 5W transmitted light illuminator and 3W reflected light (oblique) illuminator. Both illuminators are AC powered, bright, do not change color temperature when adjusting brightness, and have a 50,000-hour life.

Stage and focusing mechanism

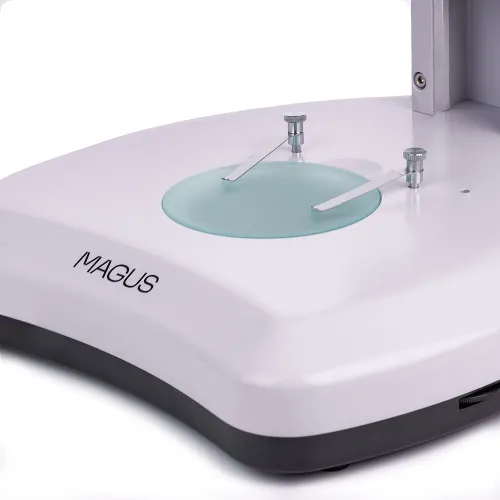

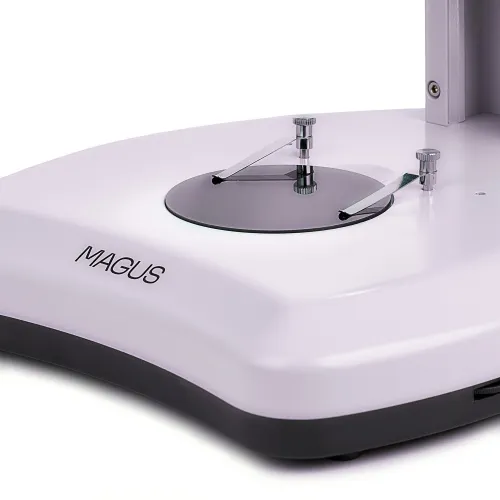

One of the included plates is installed on the stage: double-sided black and white, white, or transparent. The first plate is used for observing opaque objects and makes the image high contrast. Dark-colored samples are examined on the white side, while light-colored samples - on the black side. White and transparent plates are used when you are observing translucent and transparent samples and want to achieve maximum brightness and uniform illumination of the working area.

The microscope has a coarse and fine focusing mechanism. Fine focusing is used at magnifications above 40x. Coarse focusing has tension adjustment.

Accessories

To extend the microscope’s capabilities, use additional accessories such as eyepieces, auxiliary lenses, calibration slides, and digital cameras. It is also possible to install a device for polarized light observations.

*Key features of the microscope:

  • Zoom objective with a zoom ratio of 9:1
  • 360° rotation of the trinocular head, trinocular tube for photo and video shooting
  • Greenough optical scheme, three-dimensional image with a large depth of field
  • Transmitted and reflected (oblique) illumination, two durable LED illuminators
  • Optional accessories to improve microscope performance

Key features of the camera:

  • The camera operates autonomously without a connection to a PC or the installation of any software
  • HDMI interface for high and stable data transfer rate
  • The camera resolution is 1920x1080px – an ideal choice for displaying images on a Full HD monitor
  • 60 fps for observing moving samples, recording video, and moving the sample without jerkiness or delays
  • SONY Starvis color CMOS backlit sensor provides low noise level and high light sensitivity even in low-light conditions. You will get clearer, brighter, and more color-saturated images
  • Software with photo, video recording, editing, external display, linear and angular measurements

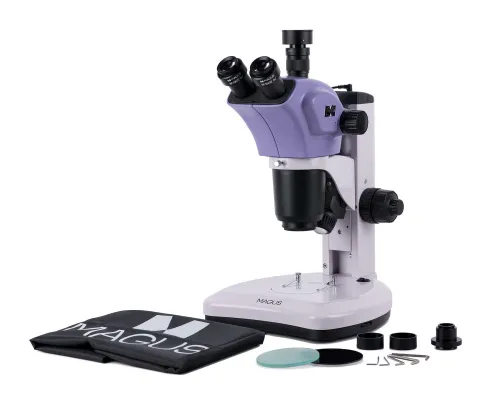

The kit includes:

  • MAGUS CHD10 Digital Camera (digital camera, HDMI cable (1.5m), USB mouse, 32GB SD memory card, AC power adapter 12V/1A (Euro), user manual and warranty card)
  • MAGUS MCD20 LCD Monitor
  • Base with integrated transmitted light source and power supply unit
  • Stand with focusing mechanism
  • Trinocular head
  • Eyepiece 10x/22 mm (2 pcs.)

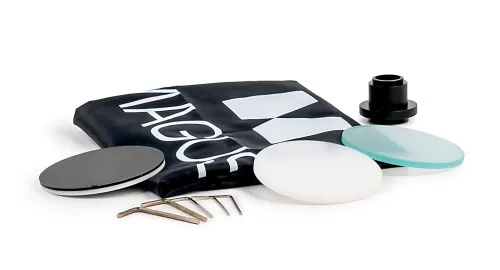

  • Black-and-white stage plate
  • White plate
  • Transparent plate
  • Reflected light oblique illuminator
  • C-mount adapter
  • AC power cord
  • Dust cover
  • User manual and warranty card

Available on request:

  • 15x/15mm eyepiece (2 pcs.)
  • 16x/15mm eyepiece (2 pcs.)
  • 20x/12mm eyepiece (2 pcs.)
  • 25x/9mm eyepiece (2 pcs.)
  • Auxiliary objective 0.5x
  • Auxiliary objective 2x
  • Reflected ring light illuminator
  • Polarization device
  • Calibration slide
specifications
Product ID 83045
Brand MAGUS
Warranty 5 years
EAN 5905555018584
Package size (LxWxH) 17.3x16.5x26.4 in
Shipping Weight 30.1 lb
Type digital, stereo/instrumental
Head trinocular, digital screen/PC monitor
Nozzle 360 ° rotatable
Head inclination angle 45 °
Magnification, x 7 — 63
Magnification, x (optional) 3.5–315
Zoom ratio 9:1
Eyepiece tube diameter, in 1.2
Eyepieces 10x/22mm, long eye relief (*optional: 15x/15mm, 16x/15mm, 20x/12mm, 25x/9mm)
Objectives 0.7–6.3x (*optional: with 0.5x auxiliary objective: 0.35–3.15x; with 2x auxiliary objective: 1.4–12.6x)
Working distance, mm 110 (with 0.5x auxiliary objective: 188; with 2x auxiliary objective: 40.4)
Interpupillary distance, in 2.1 — 3
Field of view, mm 31.43–3.49 (with 0.5x auxiliary objective: 62.85–6.98; with 2x auxiliary objective: 15.71–1.745), with a 10x eyepiece
Stage, mm Ø90
Stage features white plate, black/white plate, transparent plate
Eyepiece diopter adjustment, diopters ±5D on each eyepiece
Focus coaxial, coarse (83mm, with coarse focusing tension adjustment) and fine (0.002mm)
Illumination LED
Brightness adjustment
Power supply 220V/50Hz, AC network
Light source type reflected light: oblique illuminator – 3W LED; transmitted light: 5W LED
Ability to connect additional equipment polarization device
User level experienced users, professionals
Assembly and installation difficulty level complicated
Optical scheme Greenough
Application for applied research
Illumination location dual
Research method bright field
Pouch/case/bag in set dust cover
Weight, lbs 17.6
Dimensions, in 11x18.2x13.2
Camera specifications
Sensor SONY Starvis CMOS
Color/monochrome color
Megapixels 2
Maximum resolution, pix 1920x1080
Sensor size 1/2.8" (5.57x3.13mm)
Pixel size, μm 2.9x2.9
Interface connectors HDMI 1.4
Memory card SD up to 32GB
Ability to connect additional equipment USB mouse
Light sensitivity 1300mV at 1/30s
Exposure time 0.04ms–1000ms
Video recording
Frame rate, fps at resolution 60@1920x1080 (HDMI)
Place of installation trinocular tube, eyepiece tube instead of an eyepiece
Image format *.jpg
Video format *.h264/*.h265, *.mp4
Spectral range, nm 380–650 (built-in IR filter)
Shutter type ERS (electronic rolling shutter)
Software HDMI: built-in
System requirements does not require a computer connection
Mount type C-mount
Body solid aluminum
Camera power supply AC adapter 12V, 1A (US type plug adapter is not included)
Specifications of the AC power adapter input: AC voltage 100–240V, 50/60Hz, output: DC voltage 12V/1A
Camera operating temperature range, °F -10...+50
Operating humidity range, % 30 — 80
Monitor specifications
Type of matrix IPS
Display diagonal, inch 13.3
Display resolution, px 1920x1080 (Full HD)
Aspect ratio 16:9
Brightness, cd/m² 400
Number of displayed colors 16.7 m
Contrast 1000:1
Horizontal/vertical viewing angle, ° 178/178
Size of the visible screen area (WxH), mm 295x165
Pixel pitch (WxH), mm 0.154x0.154
Frequency of optical source, Hz 60
Type of matrix backlight LED
LED backlight lifetime, h 50000
Interface HDMI
Operating temperature range, °F 5...+131
Operating temperature range, °F 5...+131
Operating humidity range, % 10 — 90
Power supply AC 110–220V (US type plug adapter is not included), DC 5–12V/1A (Type-C)
Power consumption, W 12 (max.)
