Levenhuk Nelson 8x42 Monocular with Reticle and Compass
Marine monocular. Magnification: 8x. Objective lens diameter: 42mm
Product ID | 72111 |
Brand | Levenhuk, Inc., USA |
Warranty | lifetime |
EAN | 5905555001739 |
Package size (LxWxH) | 7.1x3.5x2.8 in |
Shipping Weight | 1 lb |
Levenhuk Nelson 8x42 Marine Monocular is perfect for fans of boating, fishing, and small boat owners. As a compact optical tool, it still provides 8x magnification and its aperture is 42mm. It helps to see even remote objects well. This monocular is also excellent for studying close objects: Its close focus is 3m.
The monocular has a built-in compass and a rangefinder. There is no scale illumination and, therefore, we recommend using a compass during the daytime with sufficient natural light. With the rangefinder, you can apply a special formula to calculate the distance to an object whose size is known or to calculate the size (height) of an object at a known distance.
The arc scale is visible through the eyepiece of the monocular. The compass determines the direction to the object in degrees. The division value is 1°. North is 360°, South is 180°, East is 90°, and West is 270°.
The optics are made of high-quality BaK-4 glass. The lenses are fully multi-coated, providing a high-quality, bright image even in bad weather. The sealed body of the monocular is made of plastic. It is filled with nitrogen to prevent the lenses from fogging.
This monocular provides a wide field of view of 120m at a 1000m distance. A wide range of diopter adjustment options is available.
We recommend using this monocular with the Levenhuk FS10 Floating Strap near water: the bright accessory will prevent the optical tool from sinking or getting lost
Features:

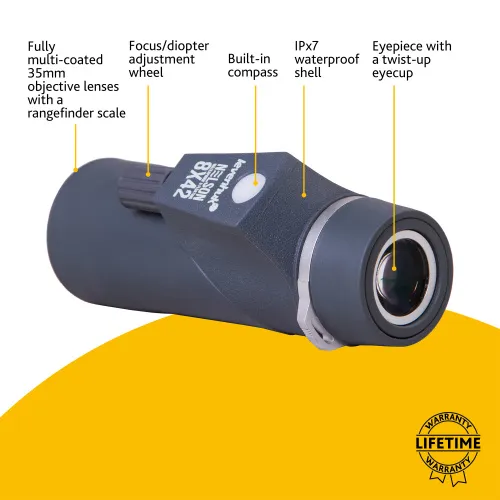

- Classic marine monocular with a built-in compass and a rangefinder
- A wide field of view and a short distance of close focus

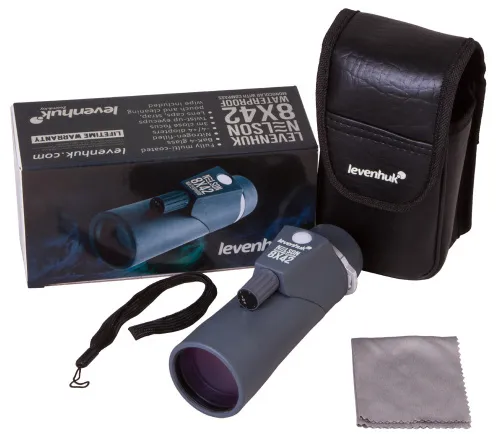

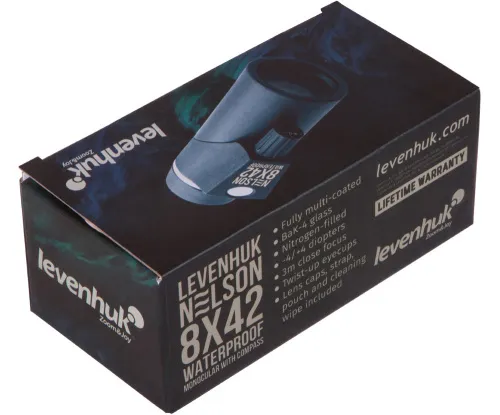

The kit includes:
- Monocular
- Eyepiece protective cap
- Objective lens cap
- Cleaning wipe
- Strap

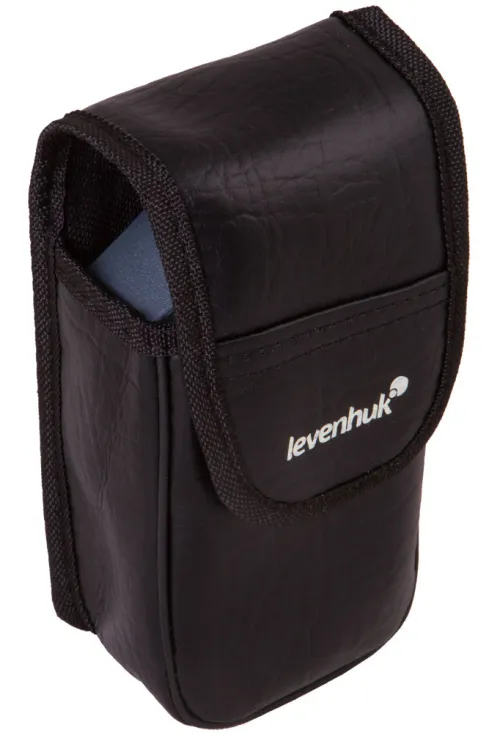

- Pouch
- User guide and lifetime warranty
Product ID | 72111 |
Brand | Levenhuk, Inc., USA |
Warranty | lifetime |
EAN | 5905555001739 |
Package size (LxWxH) | 7.1x3.5x2.8 in |
Shipping Weight | 1 lb |
Magnification, x | 8 |
Objective lens diameter (aperture), in | 1.7 |
Eyepiece | 2 optical elements in 1 group |
Objective | 3 optical elements in 2 groups |
Optics material | BaK-4 |
Lens coating | fully multi-coated |
Exit pupil diameter, in | 0.2 |
Eye relief, in | 0.9 |
Twilight factor | 18.33 |
Relative brightness | 27.56 |
Field of view, ° | 7 |
Field of view, ft/1000yds | 360 |
Close focus, ft | 9.8 |
Eyepiece diopter adjustment, diopters | ±4 |
Eyecup | twist-up |
Body | plastic |
Body filling | nitrogen |
Waterproof | ✓ |
Moisture resistance | ✓ |
Degree of moisture/water protection | IPx7 waterproof (protection against immersion at less than 1m depth) |
Hermetically sealed design | ✓ |
Operating temperature range, °F | -4...+131 |
With compass | ✓ |
Built-in rangefinder | ✓ |
Pouch/case/bag in set | pouch |
