Water-resistant and nitrogen-filled. ED optics. Magnification: 10x. Lens diameter: 50mm

10
The magnification ratio indicates the degree of proximity of an object
2
The lens diameter refers to the size of the front lens of the device in inches. The larger the aperture is, the less sensitive the device will be to external light
ED
What monocular lenses and prisms are made of and what affects the image quality

Product ID 86248
Brand Levenhuk, Inc., USA
Warranty lifetime
EAN 5905555027173
Package size (LxWxH) 5.5x2.4x2.4 in
Shipping Weight 1 lb
Description

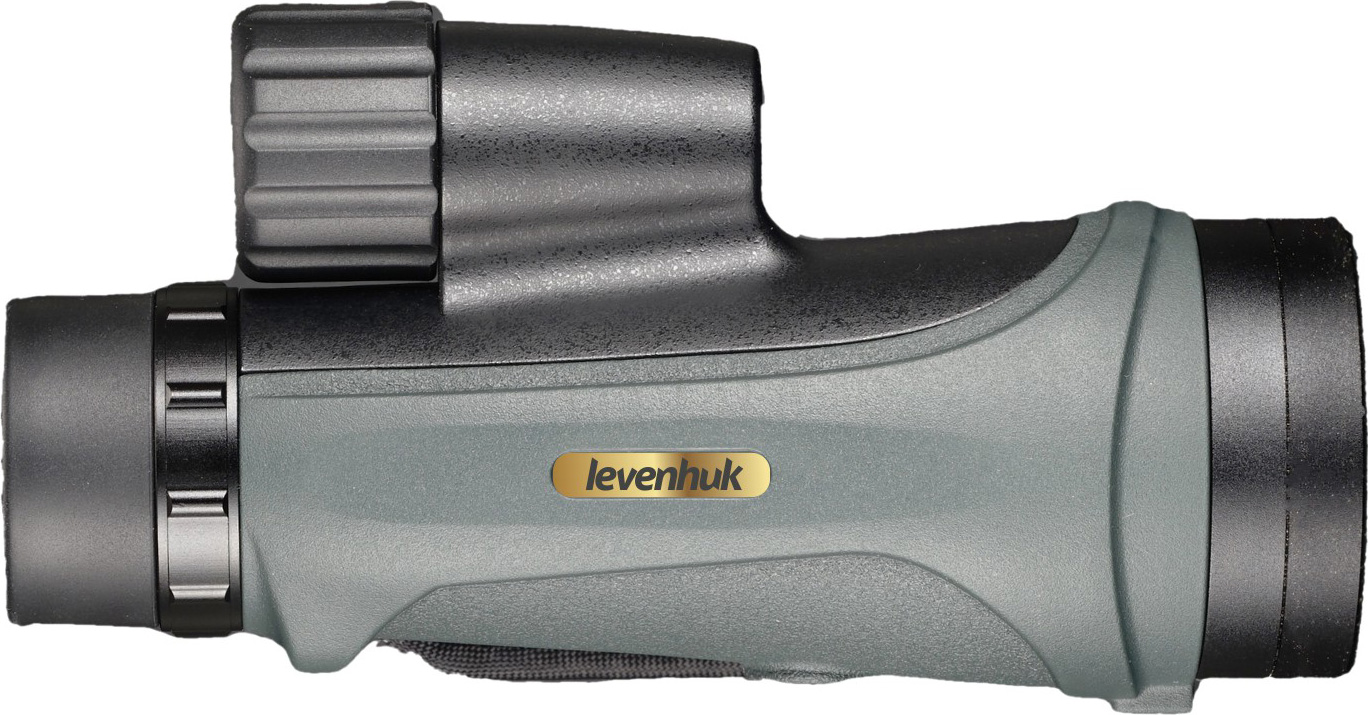

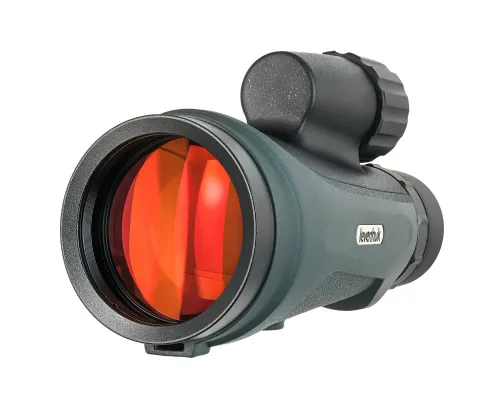

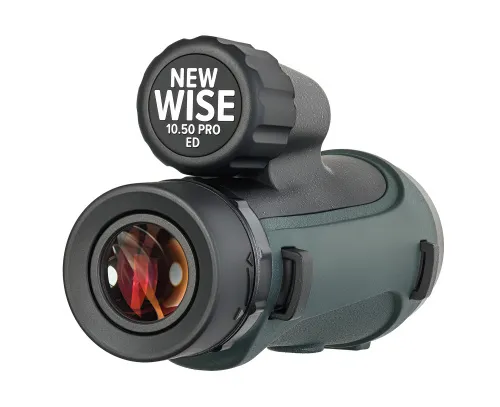

The Levenhuk New Wise PRO ED 10x50 Monocular is a professional optical tool that is designed for rugged field use. Thanks to the use of ED glass lenses (extra-low dispersion glass) and high-quality BaK-4 glass prisms with full multi-layer coating, the monocular delivers a bright, high-contrast, and detailed image with minimal chromatic aberrations. The optical system consists of 7 lens elements in 5 groups, providing high image quality despite its compact size.

With 10x magnification and a 50mm objective lens, the monocular provides a wide 6.2° field of view (108 meters at 1000 meters). Its high light-gathering capability makes it effective even in twilight conditions, supported by a twilight factor of 22.36. A 5mm exit pupil and 22mm eye relief ensure comfortable viewing even for eyeglass wearers. The eyecup features a three-position twist-up design, helping every user easily set the most comfortable eye distance.

For effortless control, it features a smooth-action focusing wheel. The eyepiece also has a built-in ±4D correction, letting you instantly sharpen the image to your eyes. A close focus distance of just 3 meters means the monocular can be used not only for distant observation but also for studying nearby objects.

Its high-strength ABS housing carries an IP67 rating for dust and water resistance, ensuring reliable operation in rain or if briefly submerged. Nitrogen filling prevents internal fogging during sudden temperature changes. An operating temperature range of –20°C to +55°C makes the device well-suited for use in any climate. Weighing only 450 grams, it is easy to take along with you on trips and long hikes.

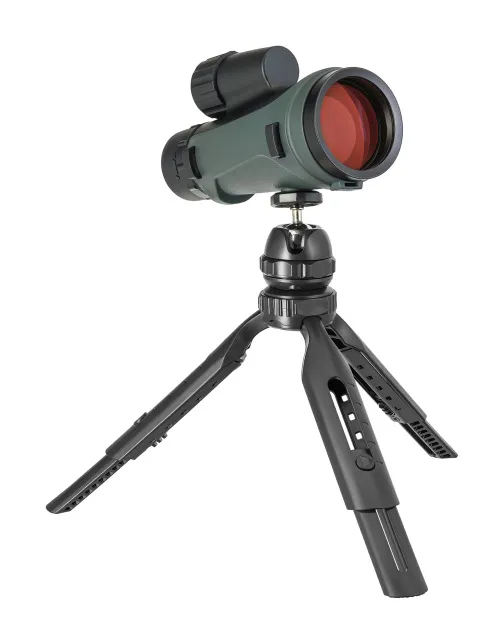

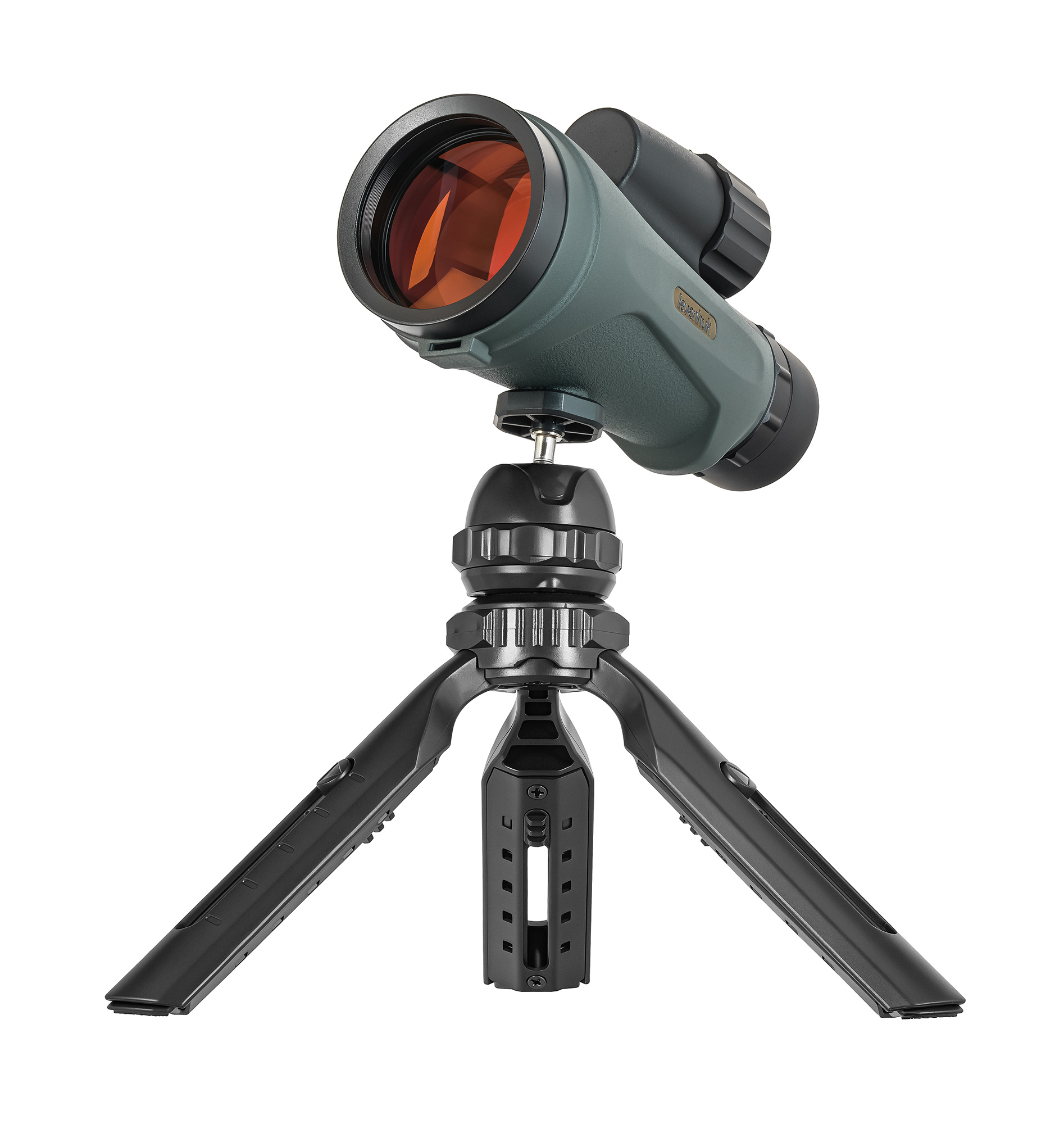

For stable viewing at long distances, it can be mounted on a tripod (tripod is sold separately).

Key features:

  • Fully multi-coated optics with ED glass lenses and BaK-4 prisms deliver clear, color-accurate images across the entire field of view
  • 10x magnification and a 50mm objective lens provide a wide 6.2° field of view and high light transmission

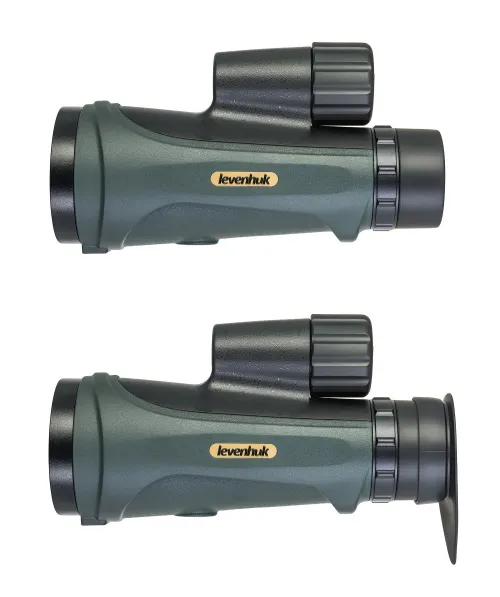

  • 22mm eye relief and a 3-position twist-up eyecup ensure comfortable viewing for all users
  • IP67 waterproof housing with nitrogen filling offers reliable protection in any conditions
  • Center focusing wheel and ±4D correction for easy, personalized adjustment

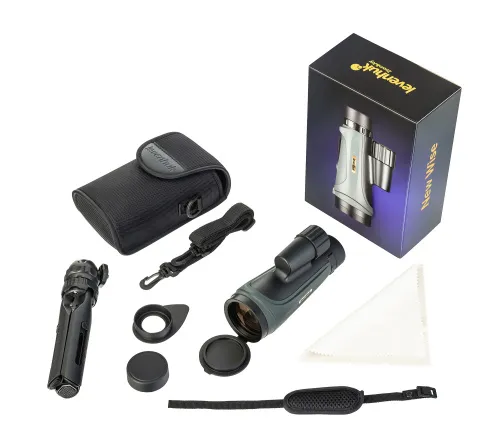

The kit includes:

  • Monocular
  • Strap

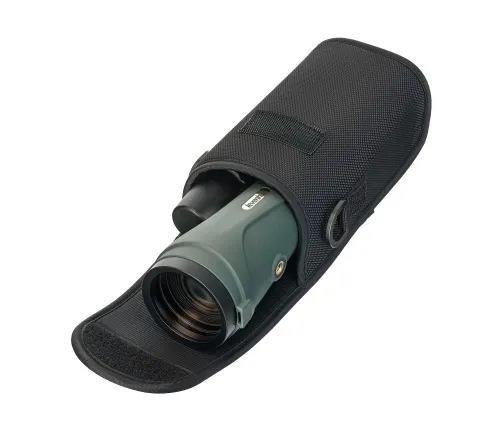

  • Pouch
  • Cleaning cloth
  • Eyepiece and objective lens protective caps
  • User manual and warranty slip
Specifications
Product ID 86248
Brand Levenhuk, Inc., USA
Warranty lifetime
EAN 5905555027173
Package size (LxWxH) 5.5x2.4x2.4 in
Shipping Weight 1 lb
Magnification, x 10
Objective lens diameter (aperture), in 2
Eyepiece 4 elements in 3 groups
Objective 3 elements in 2 groups
Optics material ED
Lens coating fully multi-coated
Exit pupil diameter, in 0.2
Eye relief, in 0.9
Twilight factor 22.36
Relative brightness 25
Field of view, ° 6.2
Field of view, ft/1000yds 324
Close focus, ft 9.8
Eyepiece diopter adjustment, diopters ±4
Eyecup twist-up (3 fixed positions)
Body high-strength ABS plastic
Body filling nitrogen

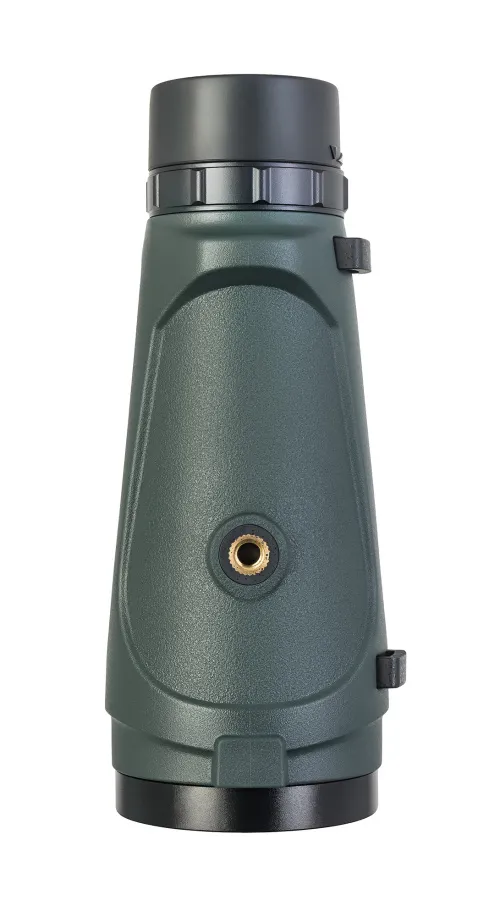

Mounting on a tripod
Waterproof
Moisture resistance
Degree of moisture/water protection IP67, complete protection against dust and temporary immersion in water
Hermetically sealed design
Operating temperature range, °F -4...+131
Pouch/case/bag in set pouch
