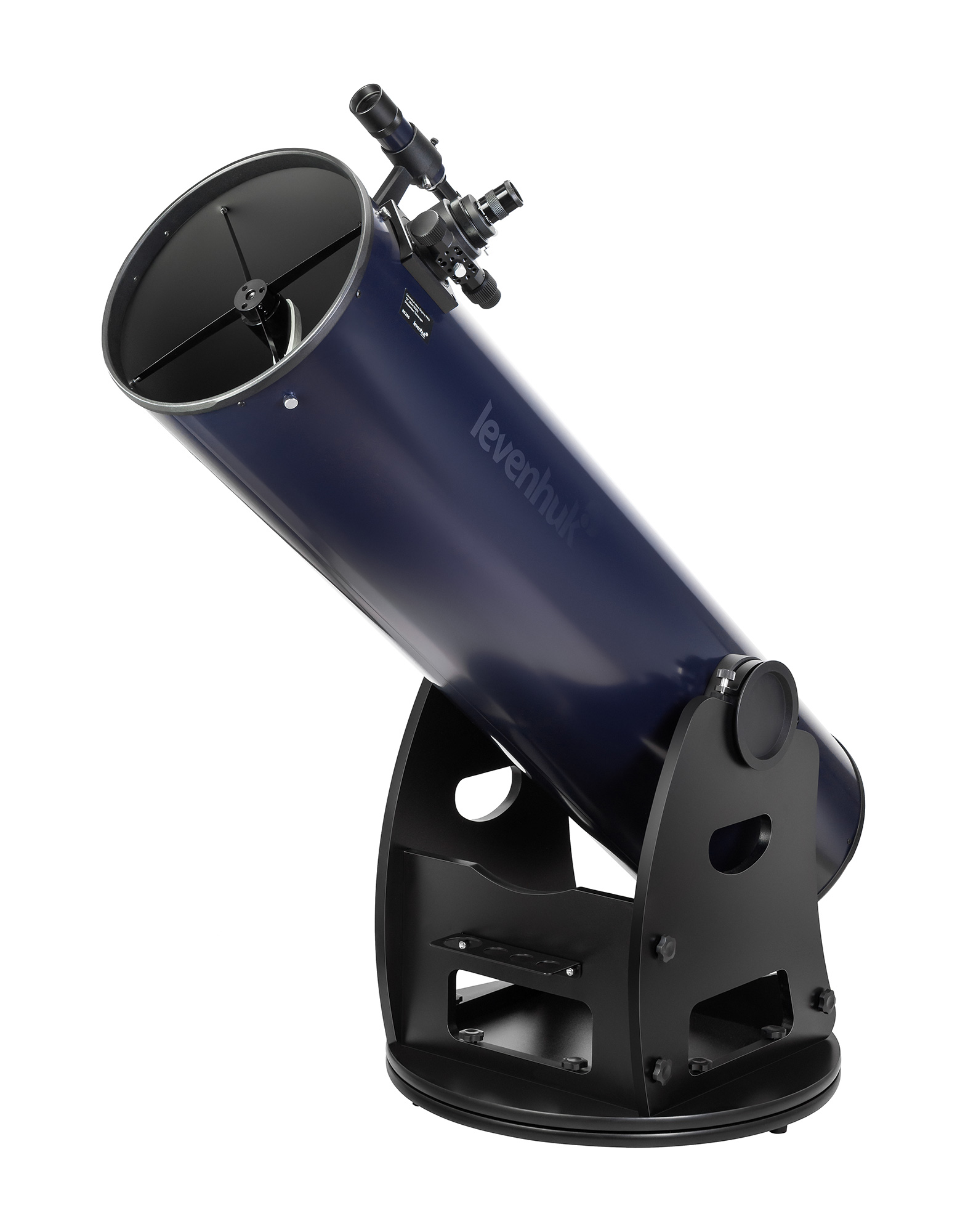

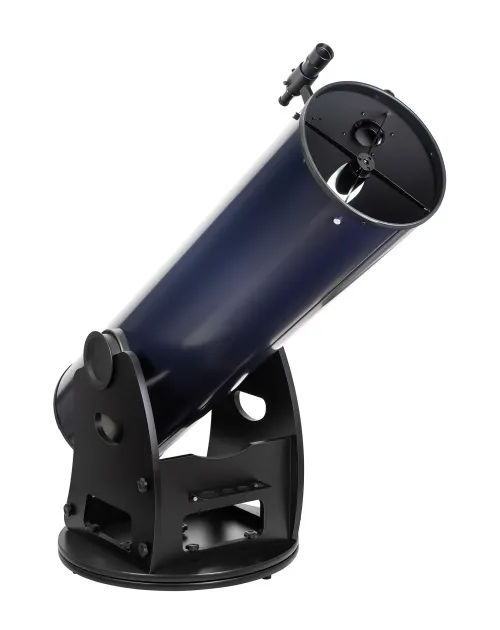

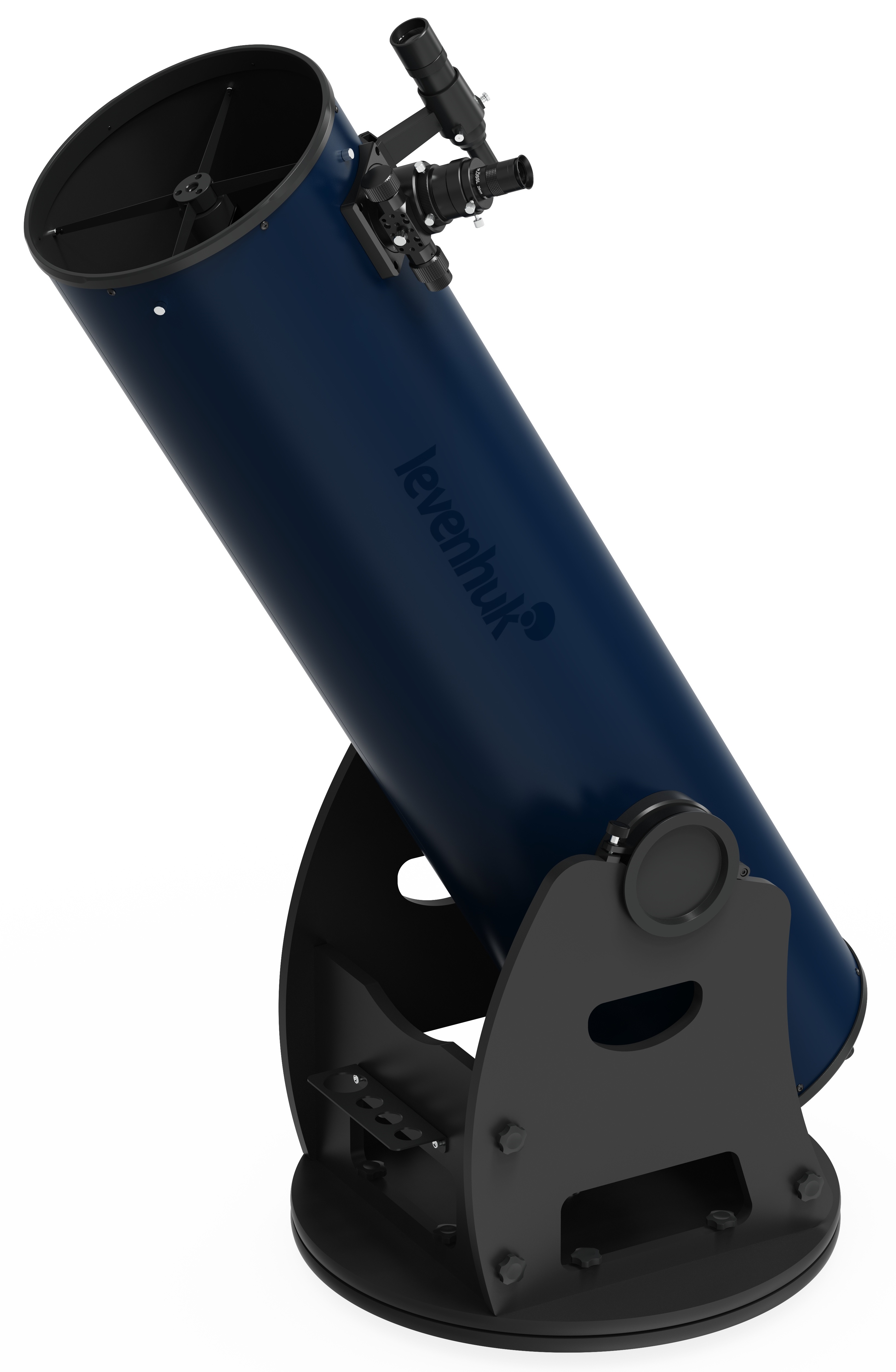

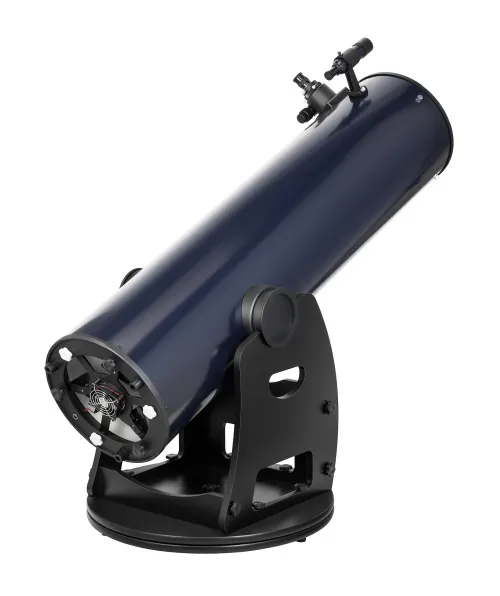

Levenhuk New Skyline PRO 12" (300/1525) Dobsonian Telescope
Newtonian reflector on a Dobsonian mount. Aperture: 304mm. Focal length: 1525mm
| Product ID | 86286 |
| Brand | Levenhuk, Inc., USA |
| Warranty | lifetime |
| EAN | 5905555027555 |
| Shipping Weight | 49.4 lb |
| Optical design | reflector |
The Levenhuk New Skyline PRO 12" is a powerful yet convenient system on a manual Dobsonian mount. It is your gateway to the secrets of our Solar System and the distant universe. Its large 304mm aperture and 1525mm focal length are highly beneficial for viewing the impressive details of celestial objects. The optical elements, made of BK-7 glass, ensure high image quality, sharpness, and natural color rendition.

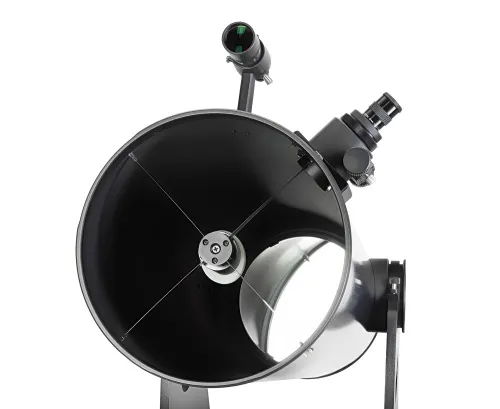

The telescope features a parabolic primary mirror, an optical design that eliminates spherical aberration by concentrating all the incoming light onto a single point, resulting in sharp, high-fidelity images. This design allows the system to perform effectively even at very high magnifications. This is particularly important if you plan to use the telescope primarily for observing very distant objects. Both the primary and secondary mirrors are coated with aluminum that increases their reflectivity to 92–95%. This treatment helps the observer better discern faint objects and see more interesting details on the surfaces or in the atmospheres of celestial bodies relatively close to Earth.

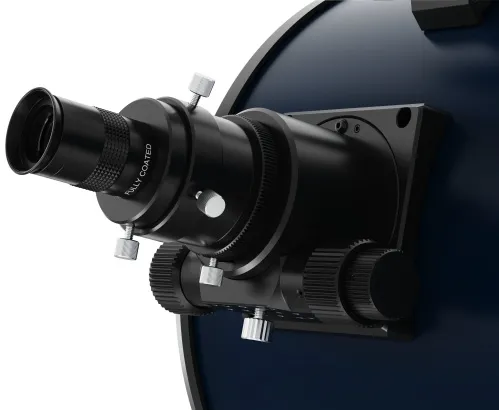

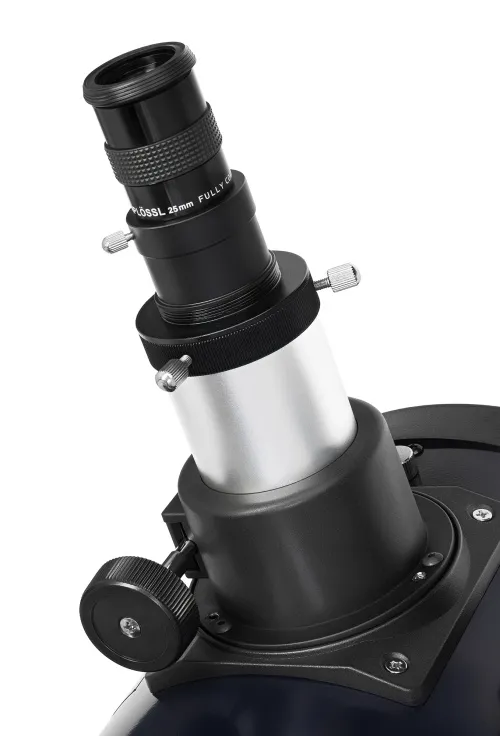

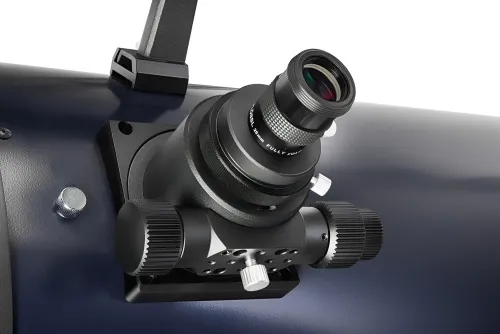

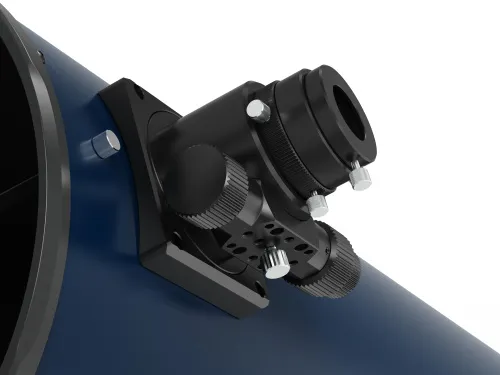

The Levenhuk New Skyline PRO 12" has a maximum useful magnification of 600x. The package includes 10mm and 25mm Plössl eyepieces (1.25"), providing 153x and 61x magnification, respectively. The telescope features a 2" dual-speed rack-and-pinion focuser with a 1.25" adapter. This gives you the freedom to upgrade and swap accessories, enabling you to choose the perfect gear for each observation session.

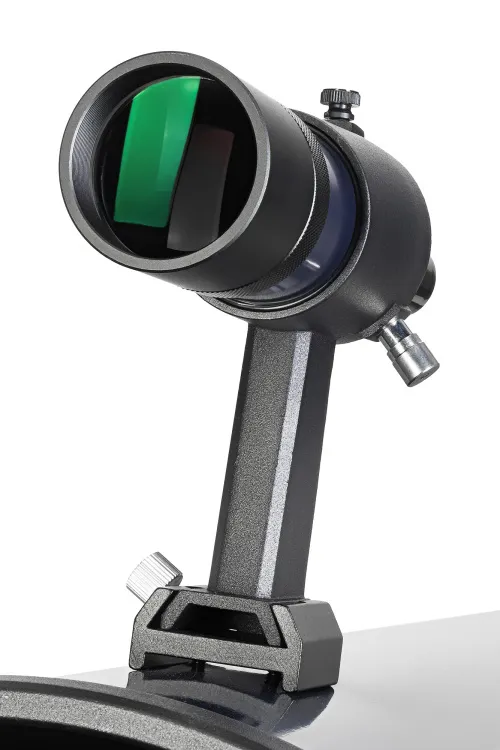

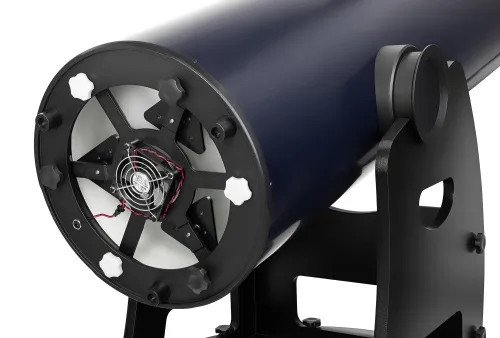

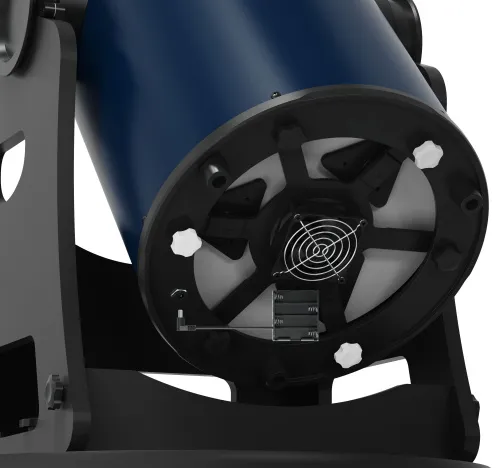

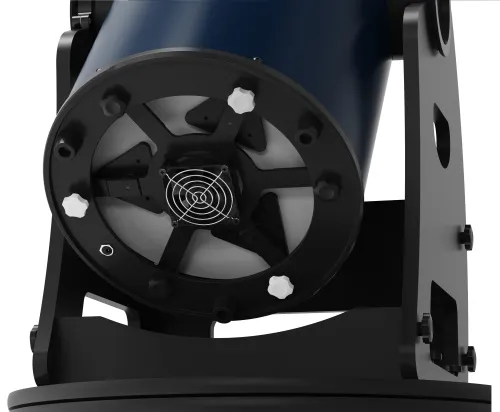

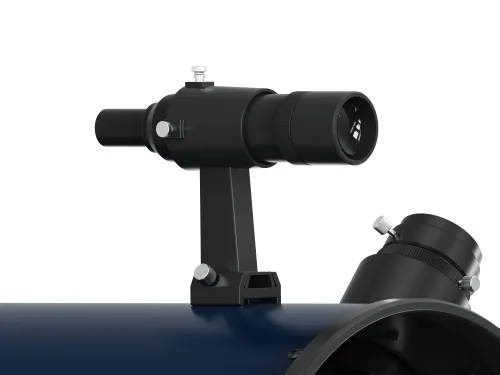

The package also includes an 8x40 optical finderscope and a primary mirror cooling fan. The cooling fan is powered by 8 AA batteries (sold separately). The Levenhuk New Skyline PRO 12" is your gateway to deep space, revealing thousands of galaxies, star clusters, and nebulae. It brings fine details into sharp focus: track 1.5km lunar ridges, study Jupiter’s dynamic atmosphere, resolve the structure of Saturn’s rings, and hunt for countless NGC catalog objects. Mounted on a user-friendly Dobsonian base, this telescope offers an intuitive and engaging experience, making it a brilliant choice for the curious stargazer and the seasoned observer alike.
Key features:
- Primary mirror aperture: 304mm, focal length: 1525mm
- 10mm and 25mm Plössl eyepieces (1.25") are included
- Accessories: 8x40 finderscope and a primary mirror cooling fan for thermal stabilization
- Impressive and the highest practical power of 600x

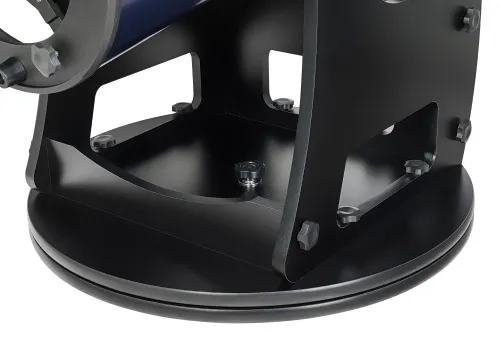

- Manually operated Dobsonian mount that is crafted from wood
- Perfect choice for the detailed exploration of deep-space wonders
- Parabolic primary mirror ensures zero spherical aberration

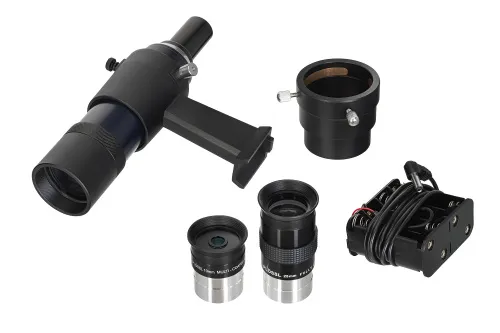

The kit includes:
- Telescope optical tube
- 10mm Plössl eyepiece (1.25")
- 25mm Plössl eyepiece (1.25")
- 8х40 optical finderscope
- Primary mirror cooling fan
- Dobsonian mount
- User manual and warranty slip
| Product ID | 86286 |
| Brand | Levenhuk, Inc., USA |
| Warranty | lifetime |
| EAN | 5905555027555 |
| Shipping Weight | 49.4 lb |
| Optical design | reflector |
| Optical scheme | Newtonian |
| Optics material | BK-7 |
| Optics coating | 92-95% reflectivity, aluminum |
| Primary mirror diameter (aperture), in | 12 |
| Secondary mirror obstruction, in | 2.8 |
| Lens (mirror) shape | parabolic |
| Focal length, in | 60 |
| Highest practical power, x | 600 |
| Aperture ratio | f/5 |
| Resolution threshold, arcseconds | 0.46 |
| Focusing | manual |
| Eyepieces | Plössl 10 mm (153x), Plössl 25 mm (61x) |
| Eyepiece barrel diameter, in | 1.25 |
| Barlow lens | no |
| Finderscope | optical, 8x40 |
| Focuser | 2" rack-and-pinion, dual-speed, includes 1.25" adapter |
| Telescope control | manual |
| Mount | Dobsonian |
| Mount material | wood |
| Mount dimensions, in | 644x644x639 |
| Additional | fan power supply: 8 AA batteries (not included), primary mirror cooling fan (included) |
| Operating temperature range, °F | 23...+95 |
| Optical tube material | metal |
| Optical tube dimensions, in | 1430х365 |
| Optical tube weight, lbs | 52.9 |
| User level | experienced users, professionals |
| Assembly and installation difficulty level | easy |
| Observed object | deep-sky objects |
