UA Levenhuk M1200 PLUS Digital Camera
Advanced microscope digital camera
| Product ID | 82663 |
| Brand | Levenhuk, Inc., USA |
| Warranty | lifetime |
| EAN | 5905555017075 |
| Package size (LxWxH) | 6.7x5.9x2.4 in |
| Shipping Weight | 1.1 lb |
The 12MP Levenhuk M1200 PLUS Digital Camera produces high-resolution well-detailed photos and videos of samples while observing with microscopes of any manufacturer. The camera is mounted in a 23.2mm eyepiece tube (with an adapter that can be mounted in 30mm and 30.5mm eyepiece tubes). It is a universal tool suitable for both professional research and hobbies. The camera can also be used as a digital eyepiece to live stream the process of the study on a computer screen.
The camera is equipped with a sensitive 1/2.3" CMOS sensor. The maximum photo resolution is 3840x3040pix. The same resolution is available for taking video at a minimum frame rate of 3fps. The maximum frame rate of 47fps provides a resolution of 960x758pix, so you can capture both fast and slow-motion video with most detail.
The software is compatible with most operating systems (Windows, macOS, Linux) and is designed for camera control, settings adjustment, and photo and video processing. It is connected to a PC or laptop via a USB port.
Available system languages for different operating systems:
- Windows: Russian, English, German, French, Polish, Chinese, Turkish
- Linux and macOS: English
More information about compatibility between Levenhuk digital cameras and microscopes.

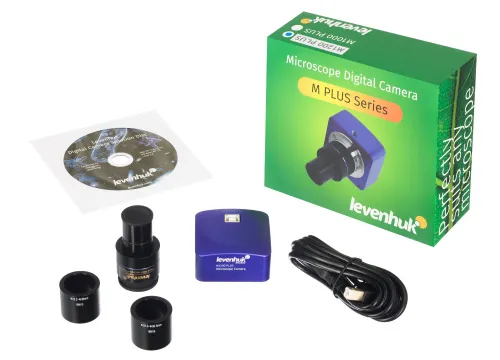

The kit includes:
- Digital microscope camera
- Adapter (23.2mm)
- 2 adapters for microscopes with different tubes diameters (23.2–30mm and 23.2–30.5mm)
- USB cable
- Installation CD with drivers and image processing software
- User manual and warranty card
| Product ID | 82663 |
| Brand | Levenhuk, Inc., USA |
| Warranty | lifetime |
| EAN | 5905555017075 |
| Package size (LxWxH) | 6.7x5.9x2.4 in |
| Shipping Weight | 1.1 lb |
| Sensor | CMOS |
| Megapixels | 12 |
| Maximum resolution, pix | 3840x3040 |
| Sensor size | 1/2.3" (6.14x4.61mm) |
| Pixel size, μm | 1.55x1.55 |
| Exposure time | 0.4ms–2000ms |
| Video recording | ✓ |
| Frame rate, fps at resolution | 3@3840x3040, 11@1920x1516, 47@960x758 |
| Active range, dB | 71.2 |
| Place of installation | eyepiece tube of 23.2mm diameter, instead of the actual eyepiece |
| Image format | *.jpg, *.bmp, *.png, *.tif |
| Video format | output: *.wmv, *.avi, *.h264 (Windows 8 and later), *h265 (Windows 10 and later) |
| Spectral range, nm | 380–650 (built-in IR filter) |
| Shutter type | ERS (electronic rolling shutter) |
| White balance | manual, automatic |
| Exposure control | manual, automatic |
| Software features | image size, brightness, exposure time |
| Output | USB 2.0, 480 Mbps |
| System requirements | Windows 8/10/11 (32bit and 64bit), Mac OS X, Linux, up to 2.8GHz Intel Core 2 or higher, minimum 2GB RAM, USB 2.0 port, CD-ROM |
| Software | Levenhuk, USB 2.0 |
| Body | metal |
| Power supply | 2.0 USB cable |
| Operating temperature range, °F | 14...+122 |
