Advanced microscope digital camera

16
Matrix resolution – the number of megapixels that it consists of; influences the detail of the image
1.335x1.335
The pixel size is directly proportional to the sensor’s sensitivity
0.2ms–2000ms
Camera shutter speed is the time during which the shutter remains open, thereby allowing light to enter the sensor
Availability

Product ID 82664
Brand Levenhuk, Inc., USA
Warranty lifetime
EAN 5905555017082
Package size (LxWxH) 6.7x5.9x2.4 in
Shipping Weight 1.1 lb
Description

The Levenhuk M1600 PLUS Digital Camera is the best choice for demanding users who use microscopes in their professional or hobby activities. The camera provides well detailed and clear images (maximum resolution of 4632x3488) of both photos and videos. The frame rate can be adjusted by the user within a range of 2 to 11 fps.

The camera is connected to a PC and powered via a USB cable. The professional software enables you to control the camera and optimally adjust shooting settings to suit your needs as well as process images to achieve maximum image quality.

The software is compatible with Windows, Linux, and macOS operating systems.

Available system languages for different operating systems:

  • Windows: Russian, English, German, French, Polish, Chinese, Turkish
  • Linux and macOS: English

The camera is compatible with microscopes of any brand. It can be mounted in eyepiece tubes with a diameter of 23.2mm, 30mm, or 30.5mm (all of the required adapters are included in the kit). In addition to recording, the device allows you to stream images and videos.

More information about compatibility between Levenhuk digital cameras and microscopes.

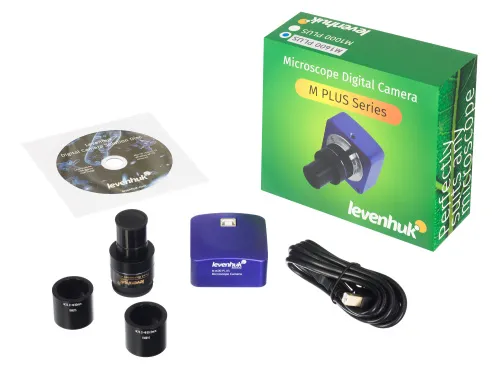

The kit includes:

  • Digital microscope camera
  • Adapter (23.2mm)
  • 2 adapters for microscopes with different tubes diameters (23.2–30mm and 23.2–30.5mm)
  • USB cable
  • Installation CD with drivers and image processing software
  • User manual and warranty card
specifications
Product ID 82664
Brand Levenhuk, Inc., USA
Warranty lifetime
EAN 5905555017082
Package size (LxWxH) 6.7x5.9x2.4 in
Shipping Weight 1.1 lb
Sensor CMOS
Megapixels 16
Maximum resolution, pix 4632x3488
Sensor size 1/2.33"
Pixel size, μm 1.335x1.335
Exposure time 0.2ms–2000ms
Video recording
Frame rate, fps at resolution 2@4632x3488, 8@2320x1740, 11@1536x1160
Active range, dB 67.3
Place of installation eyepiece tube of 23.2mm diameter, instead of the actual eyepiece
Image format *.jpg, *.bmp, *.png, *.tif
Video format output: *.wmv, *.avi, *.h264 (Windows 8 and later), *h265 (Windows 10 and later)
Spectral range, nm 380–650 (built-in IR filter)
Shutter type ERS (electronic rolling shutter)
White balance manual, automatic
Exposure control manual, automatic
Software features image size, brightness, exposure time
Output USB 2.0, 480 Mbps
System requirements Windows 8/10/11 (32bit and 64bit), Mac OS X, Linux, up to 2.8GHz Intel Core 2 or higher, minimum 2GB RAM, USB 2.0 port, CD-ROM
Software Levenhuk, USB 2.0
Body metal
Power supply 2.0 USB cable
Operating temperature range, °F 14...+122
