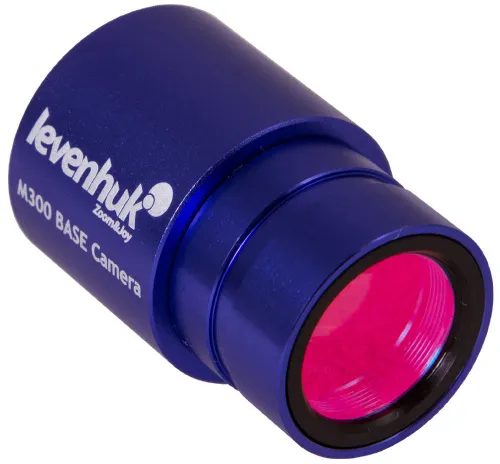

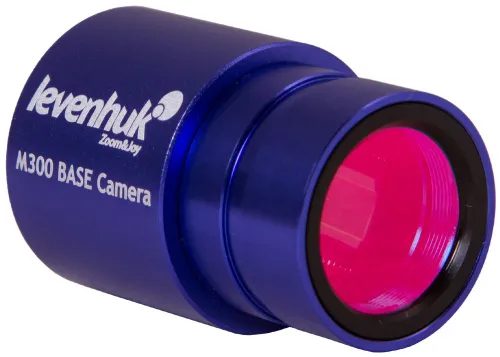

UA Levenhuk M300 BASE Digital Camera
A modern microscope digital camera
| Product ID | 70355 |
| Brand | Levenhuk, Inc., USA |
| Warranty | lifetime |
| EAN | 5905555003412 |
| Package size (LxWxH) | 2.4x5.5x3.5 in |
| Shipping Weight | 0.4 lb |
The Levenhuk M300 BASE Digital Camera is a great way to capture important moments of scientific research. With its help, you can study microscope samples on a computer, take pictures of samples and record video clips. The 3-megapixel camera has a resolution up to 2048x1536 pixels. This image quality is good enough to print photos.
The camera has a standard diameter of 23.2mm, so you can install it on any modern microscope. To use it with eyepiece tubes of other diameters, just purchase an adapter. A standard USB cable (included) is used to connect the camera to the computer. In addition, the camera is controlled using special Levenhuk software (included), which allows you to change the modes of photo and video shooting, crop frames, and adjust the brightness and contrast of the picture.
The Levenhuk M300 BASE camera is an accessory that is useful for every fan of microbiology. It allows you to join the world of microphotography and share your interesting findings with friends and like-minded people.
The kit includes a CD with special software that allows you to edit previously saved images: zoom them, crop them, change the contrast, and so forth.
To ensure the best possible performance of your new camera, make sure your computer complies with the system requirements specified by the manufacturer. Compatible OS include Mac, Linux, and Windows. A USB 2.0 port is required to establish a connection. If the software does not run on your computer, please contact us and specify your operating system and its version (for Linux: platform and kernel version).
The latest version of Levenhuk Software for Windows supports eight languages: English, French, German, Polish, Russian, Simplified Chinese, Traditional Chinese, Turkish.

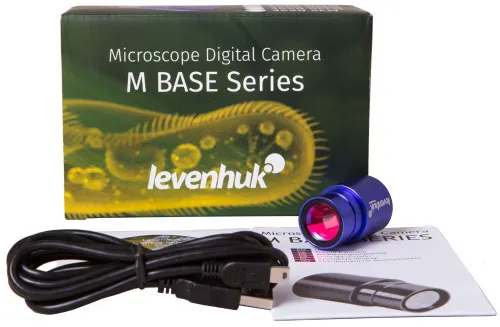

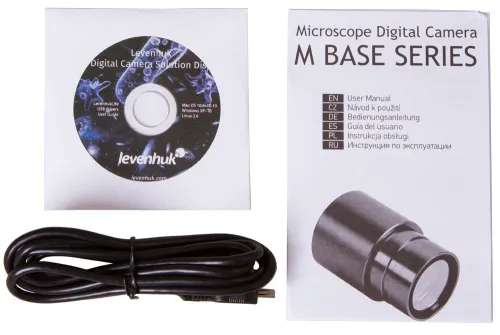

The kit includes:
- Levenhuk microscope digital camera

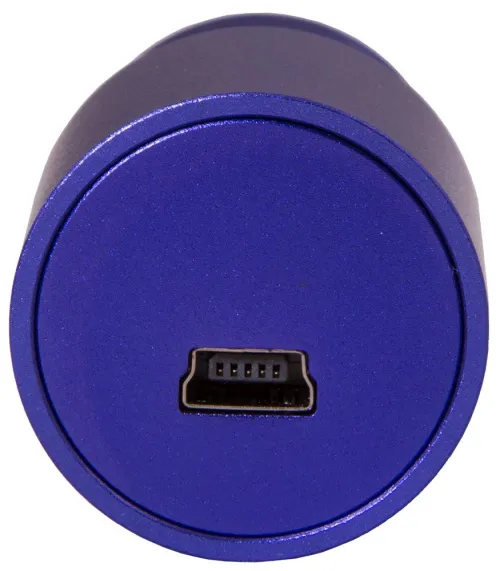

- USB cable for connection to PC or laptop and power supply
- Installation CD with Levenhuk image editing software and the required drivers
- User manual and lifetime warranty
| Product ID | 70355 |
| Brand | Levenhuk, Inc., USA |
| Warranty | lifetime |
| EAN | 5905555003412 |
| Package size (LxWxH) | 2.4x5.5x3.5 in |
| Shipping Weight | 0.4 lb |

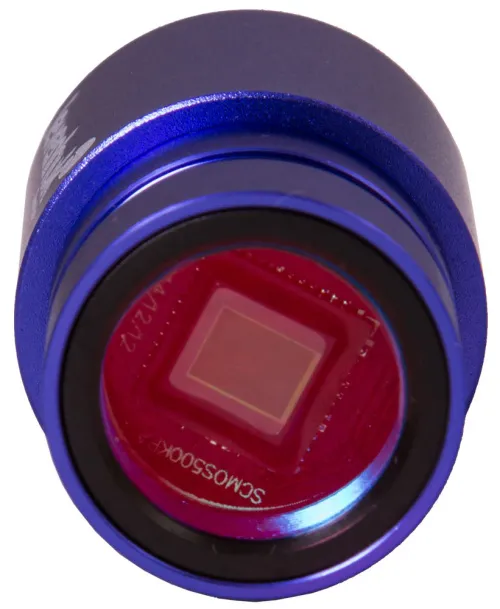

| Sensor | CMOS |
| Megapixels | 3 |
| Maximum resolution, pix | 2048x1536 |
| Sensor size | 1/2.7" |
| Pixel size, μm | 2.2x2.2 |
| Exposure time | auto |
| Video recording | ✓ |
| Frame rate, fps at resolution | 7.5@1280x1024, 5@1600x1200, 3@2048x1536 |
| Place of installation | eyepiece tube of 23.2mm diameter, instead of the actual eyepiece |
| Image format | *.jpg, *.bmp, *.png, *.tif |
| Video format | output: *.wmv, *.avi, *.h264 (Windows 8 and later), *h265 (Windows 10 and later) |
| Spectral range, nm | 380–650 (built-in IR filter) |
| Shutter type | ERS (electronic rolling shutter) |
| White balance | manual, automatic |
| Exposure control | manual, automatic |
| Software features | image size, brightness, exposure time |
| Output | USB 2.0, 480 Mbps |
| System requirements | Windows 8/10/11 (32bit and 64bit), Mac OS X, Linux, up to 2.8GHz Intel Core 2 or higher, minimum 2GB RAM, USB 2.0 port, CD-ROM |
| Software | Levenhuk |
| Body | metal |
| Power supply | 2.0 USB cable |
| Operating temperature range, °F | 14...+122 |
THANKS
Thanks for the query. The digital camera itself does not have any magnification. The total magnification you get when you replace the ocular lense with the camera depends on the size of camera matrix in pixels as well as the objective lens's magnification.
Another question: is any mobile app that could take the pictures and videos instead of the computer/laptop? Can I connect the USB directly to my phone?
