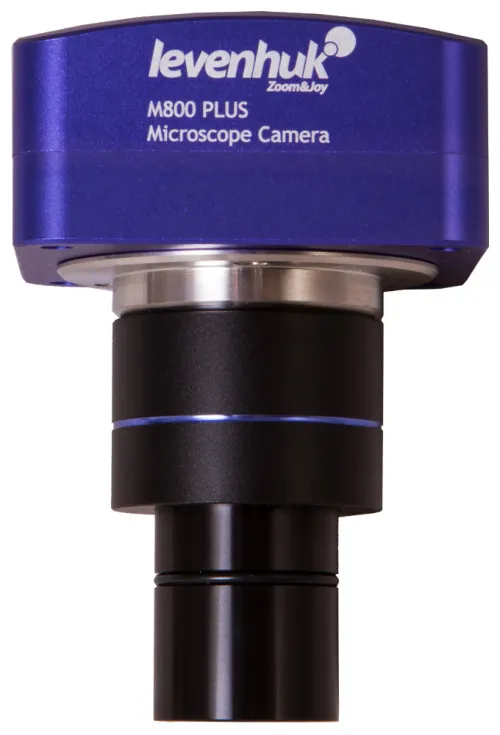

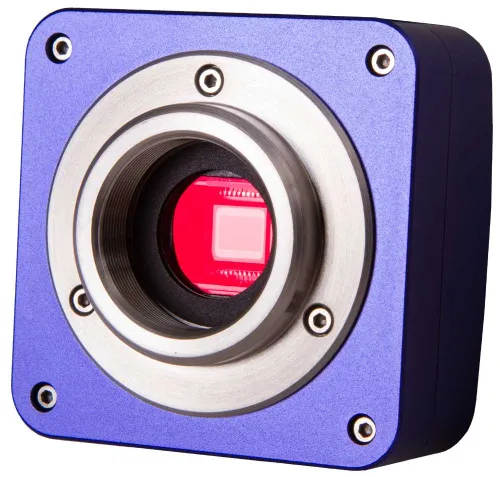

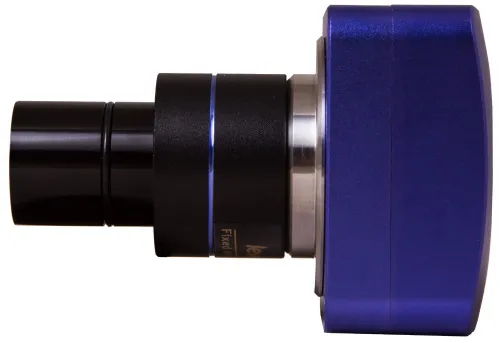

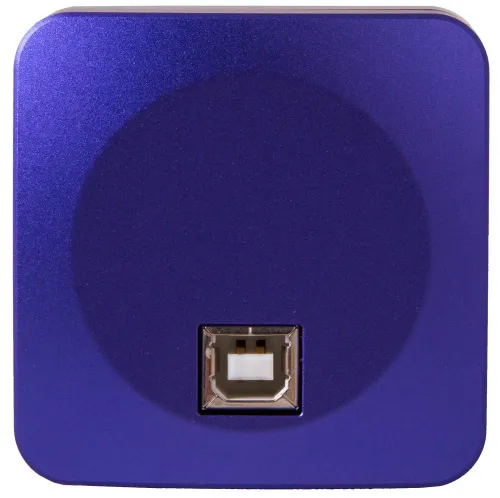

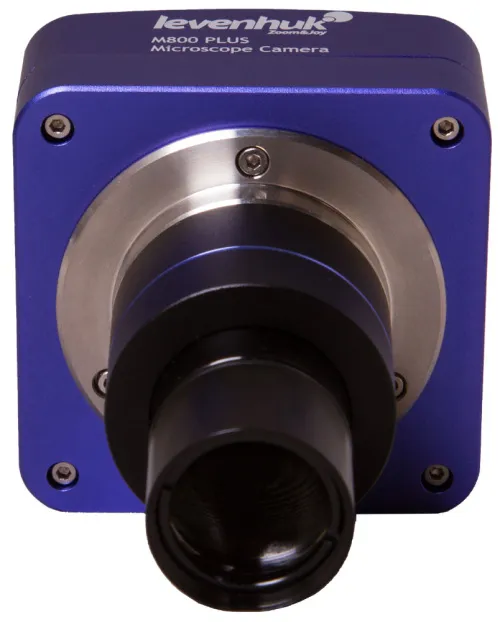

UA Levenhuk M800 PLUS Digital Camera
A modern microscope digital camera
| Product ID | 70357 |
| Brand | Levenhuk, Inc., USA |
| Warranty | lifetime |
| EAN | 5905555003436 |
| Package size (LxWxH) | 2.4x6.7x5.9 in |
| Shipping Weight | 1.2 lb |
The Levenhuk M800 PLUS Digital Camera for microscopes was designed for professional work with microscope samples. The camera offers broad options in taking photos and videos. The 8-megapixel sensor gives the camera an image resolution of 3264x2448 pixels and high-quality video at 62fps rate. The Levenhuk M800 PLUS camera is suitable for hobbies, studies and work.
The camera is installed in place of the microscope eyepiece and can be used as a digital eyepiece. After installing the special software that comes with the device, the camera can transfer the image to your computer in real time. The software allows you to select the shooting mode and process images and videos after recording.
The Levenhuk M800 PLUS Digital Camera is compatible with microscopes of any brand. The adapters included in the kit allow you to install the camera in eyepiece tubes of different diameters. This way you do not have to buy anything to use the camera with different microscopes.
The kit includes a CD with special software that allows you to edit previously saved images: zoom them, crop them, change the contrast, and so forth.
To ensure the best possible performance of your new camera, make sure your computer complies with the system requirements specified by the manufacturer. Compatible OS include Mac, Linux, and Windows. A USB 2.0 port is required to establish a connection. If the software does not run on your computer, please contact us and specify your operating system and its version (for Linux: platform and kernel version).
The latest version of Levenhuk Software for Windows supports eight languages: English, French, German, Polish, Russian, Simplified Chinese, Traditional Chinese, Turkish.
Levenhuk Digital Camera is compatible with microscopes of 23.2mm eyepiece tube diameter. The camera can also be mounted on eyepiece tubes of 30 and 30.5mm diameters using adapters, included in the kit.
The kit includes:
- Levenhuk microscope digital camera
- Adapter (23.2mm)
- 2 adapters for microscopes with different diameters of an eyepiece tube (23.2–30mm and 23.2–30.5mm)
- USB cable for connection to PC or laptop and power supply
- Installation CD with Levenhuk image editing software and the required drivers
- User manual and lifetime warranty
| Product ID | 70357 |
| Brand | Levenhuk, Inc., USA |
| Warranty | lifetime |
| EAN | 5905555003436 |
| Package size (LxWxH) | 2.4x6.7x5.9 in |
| Shipping Weight | 1.2 lb |
| Sensor | CMOS |
| Megapixels | 8 |
| Maximum resolution, pix | 3264x2448 |
| Sensor size | 1/2.5" |
| Pixel size, μm | 1.55x1.55 |
| Light sensitivity | 0.31 v / lux.sec @ 550 nm |
| Exposure time | 0.4ms–2000ms |
| Video recording | ✓ |
| Frame rate, fps at resolution | 4@3264x2448, 15@1600x1200, 62@800x600 |
| Active range, dB | 65.2 |
| Place of installation | eyepiece tube of 23.2mm diameter, instead of the actual eyepiece |
| Image format | *.jpg, *.bmp, *.png, *.tif |
| Video format | output: *.wmv, *.avi, *.h264 (Windows 8 and later), *h265 (Windows 10 and later) |
| Spectral range, nm | 380–650 (built-in IR filter) |
| Shutter type | ERS (electronic rolling shutter) |
| White balance | manual, automatic |
| Exposure control | manual, automatic |
| Software features | image size, brightness, exposure time |
| Output | USB 2.0, 480 Mbps |
| System requirements | Windows 8/10/11 (32bit and 64bit), Mac OS X, Linux, up to 2.8GHz Intel Core 2 or higher, minimum 2GB RAM, USB 2.0 port, CD-ROM |
| Software | Levenhuk |
| Body | metal |
| Power supply | 2.0 USB cable |
| Operating temperature range, °F | 14...+122 |
Thanks
Alvise
Please check the quick start guide here online: https://loc.levenhuk.com/upload/uf/bcb/9y59kqbx5odtpz4nkto0ti15kgf7mna7/lvh-software-levenhuklite-qs-ml.pdf
Is there any additional information you might need?
