MAGUS CBF10 Digital Camera

The price is valid only for the online store and may differ from the prices in retail stores.

USB 3.0, 18MP, 1/2.3'', color

Matrix resolution – the number of megapixels that it consists of; influences the detail of the image

1.25x1.25

The pixel size is directly proportional to the sensor’s sensitivity

0.1ms–2s

Camera shutter speed is the time during which the shutter remains open, thereby allowing light to enter the sensor

Availability

Product ID	83203
Brand	MAGUS
Warranty	5 years
EAN	5905555019253
Package size (LxWxH)	5.9x5.9x3.9 in
Shipping Weight	1.3 lb

Description

The MAGUS CBF10 Digital Camera is designed to work together with a microscope: photographing, video recording, and displaying images on an external screen. Its characteristics are best suited for brightfield work on 4x and 10x flat-field microscope objectives and stereomicroscopes.

Sensor

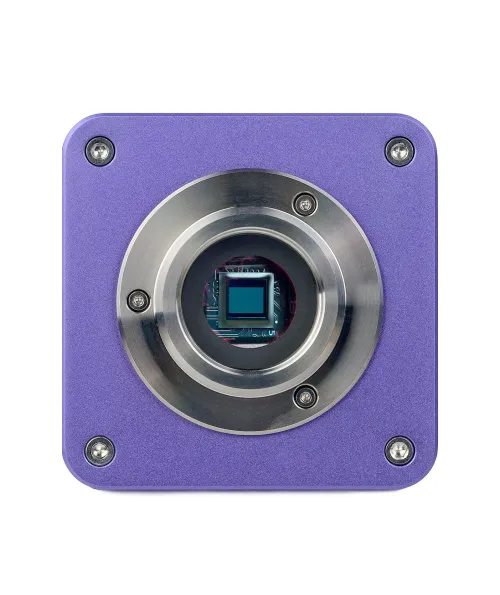

The MAGUS CBF10 camera is equipped with an Aptina CMOS sensor with a light sensitivity of 0.62mV/lux/s. You can get the maximum field of view without distortion using an adapter with magnification from 0.4x to 0.6x.

Photo and video recording

The 18MP sensor enables you to achieve a realistic and highly detailed picture with a resolution of 4912x3684px. In this mode, video is captured at 13.1fps. You can increase the frame rate and, as a result, improve the smoothness of the video by reducing the resolution. Available options: 2456x1842px (34.3fps) and 1228x922px (54.4fps). In any of the selected modes, adjusting the focus of the microscope is convenient. The modes with increased frame rates are suitable for studying moving objects and fast-flowing processes as well as for presentations and demonstrations.

Interface

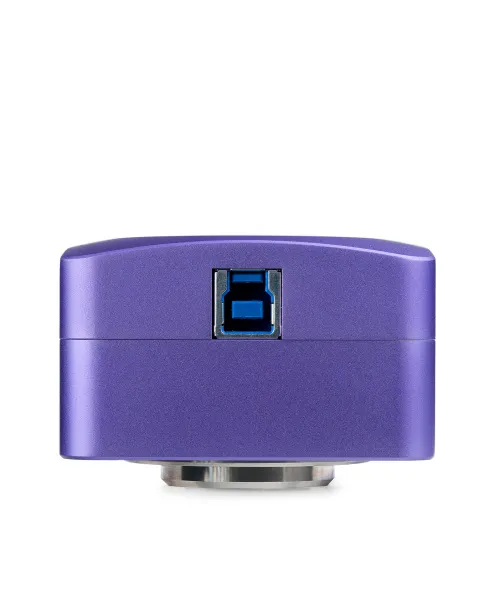

A USB3.0 interface is used to connect to a computer. The data transfer is 10 times faster than the previous generation’s interface. The camera’s fast performance makes it an excellent choice for professional laboratories, research, and university training.

Software features

The MAGUS CBF10 camera comes with a software CD. It is used for photography, video shooting, displaying images, and editing them. After software calibration, linear and angular measurements can be made.

Installation

The camera can be installed either in the eyepiece tube (instead of an eyepiece) or in a trinocular tube. C-mount adapters and adapter rings for the required mounting diameter are purchased separately.

Key features:

Aptina CMOS sensor with high light sensitivity
18MP sensor resolution: highly detailed images on low magnification objectives
Frame rate sufficient for focus adjustment: 13.1fps with a resolution of 4912x3684px
Classroom demonstrations and observing moving objects made simple, all thanks to increasing the frame rate while decreasing the resolution; movement of the sample is visible without jerking
USB3.0 provides 10 times faster data transfer speeds than USB2.0
Software for creating photos and videos as well as displaying and editing in real time
Linear and angular measurements

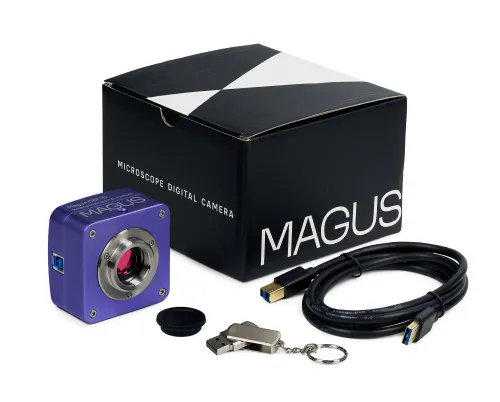

The kit includes:

Digital camera
USB cable
Installation CD with drivers and software
User manual and warranty card

specifications

Product ID	83203
Brand	MAGUS
Warranty	5 years
EAN	5905555019253
Package size (LxWxH)	5.9x5.9x3.9 in
Shipping Weight	1.3 lb
Sensor	Aptina CMOS
Color/monochrome	color
Megapixels	18
Maximum resolution, pix	4912x3684
Sensor size	1/2.3" (6.14x4.61mm)
Pixel size, μm	1.25x1.25
Light sensitivity	0.62mV/lux/s
Signal/noise ratio	36.3dB
Exposure time	0.1ms–2s
Video recording	✓
Frame rate, fps at resolution	54.4@1228x922, 34.3@2456x1842, 13.1@4912x3684
Active range, dB	65.8
Place of installation	trinocular tube, eyepiece tube instead of an eyepiece
Image format	.jpg, .bmp, .png, .tif
Video format	output: .wmv, .avi, .h264 (Windows 8 and later), h265 (Windows 10 and later)
Spectral range, nm	380–650 (built-in IR filter)
Shutter type	ERS (electronic rolling shutter)
White balance	manual, automatic
Exposure control	manual, automatic
Software features	image size, brightness, exposure time
Output	USB 3.0, 5Gb/s
System requirements	Windows 8/10/11 (32bit and 64bit), Mac OS X, Linux, up to 2.8GHz Intel Core 2 or higher, minimum 2GB RAM, USB 3.0 port, CD-ROM, 17" or larger display
Software	MAGUS View
Mount type	C-mount
Body	solid aluminum
Power supply	DC current, 5V, from the USB port of the PC
Operating temperature range, °F	14...+122
Operating humidity range, %	30 — 80
