MAGUS CHD20 Digital Camera
HDMI/USB2.0, 2MP, 1/2'', color
Product ID | 83192 |
Brand | MAGUS |
Warranty | 5 years |
EAN | 5905555019147 |
Package size (LxWxH) | 9.8x6.7x3.5 in |
Shipping Weight | 3.3 lb |

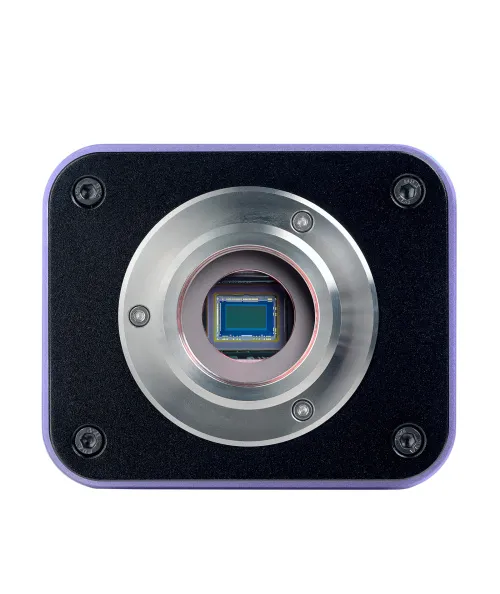

MAGUS CHD20 is a digital camera for mounting on a microscope. It is designed for taking photos and recording videos of research, editing them, and it is also capable of measuring the linear and angular dimensions of objects and their structures. The device runs on its own software, so that it can be connected not only to a computer, but also directly to an external screen. For this purpose, the camera is equipped with two types of interfaces: HDMI and USB.
The camera produces a high-quality Full HD image (1920x1080px), and it provides high frame rates and high data transfer rates between devices. It features a Sony sensor with high light sensitivity that is able to shoot even in fluorescent light. Another feature of this camera is the use of RGB mosaic filters. This reduces the dark current and provides a clear image. The camera’s entire system is aimed at creating a high-quality image without tearing, freezing, or distortion, even if the subject of observation is moving.
Sensor
The Starvis series color CMOS sensor from SONY, with its small size (1/2'', 3.75x3.75μm pixel), has high photosensitivity (1175mV at a shutter speed of 1/30s) and allows you to shoot even in low light conditions. This is possible thanks to the use of backlight technology. To create the widest possible field of view without distortion, it is recommended to use an adapter with a magnification of 0.5x to 0.7x.
Software
The camera comes with an installation disk with software for operating the device. The built-in software enables the MAGUS CHD20 camera to work autonomously to take photos and record videos, process the results directly on the device, and even take measurements of the object. To take measurements, you must first calibrate the software for each objective using a calibration slide.
Connecting to external devices

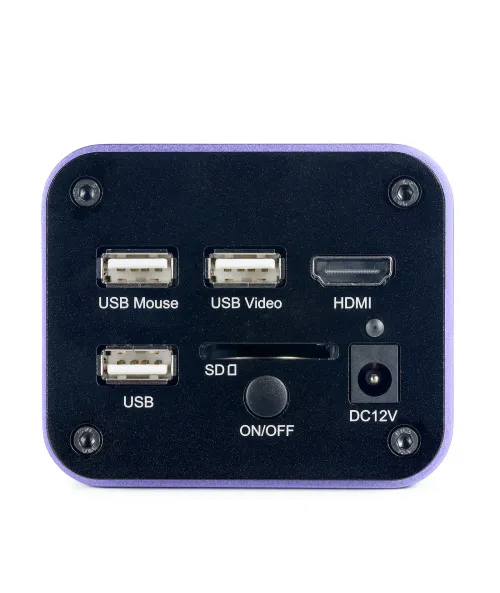

MAGUS CHD20 supports connection to an external screen, computer as well as the integration of additional devices. Connection to a monitor, TV, or a projector is via the HDMI interface, at 60fps. You can connect the camera to a computer via USB2.0 interface at 50fps.
The camera comes with a 32GB SD card. You can save photos and videos on it and process them using the built-in software. The USB interface allows you to connect a flash drive.
It is recommended to use a mouse to operate camera applications. It is also included in the kit and is designed to level out vibrations that arise from direct interaction with the camera.
The device can be combined with special MAGUS monitors, which are installed directly on the camera and create a microscope imaging system.
Mounting on a microscope
The camera can be inserted into the microscope eyepiece tube, connecting to it via a C-mount adapter and an adapter ring for the diameter of the tube (purchased separately). A C-mount adapter is used to install the device into the trinocular tube.
Key features:
- Light sensitivity of 1175mV at 1/30s enables you to shoot even in low light or fluorescent light
- The camera produces high quality Full HD image (1920x1080px)
- Built-in software provides the ability to autonomously create and process photo and video materials and carry out object measurements
- HDMI and USB interfaces are used to display data to an external monitor or computer; the frame rate is 60 and 50fps, respectively, depending on the connection
- The camera uses RGB mosaic filters, which reduces dark current and produces a clear image

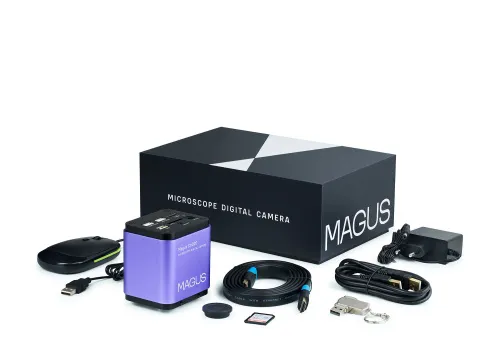

The kit includes:
- Digital camera
- HDMI cable (1.5m)
- USB 2.0 cable (2m)
- USB mouse
- 32GB SD memory card
- AC power adapter 12V/1A (Euro)
- Installation CD with drivers and software
- User manual and warranty card
Product ID | 83192 |
Brand | MAGUS |
Warranty | 5 years |
EAN | 5905555019147 |
Package size (LxWxH) | 9.8x6.7x3.5 in |
Shipping Weight | 3.3 lb |
Sensor | Sony Exmor/Starvis CMOS |
Color/monochrome | color |
Megapixels | 2 |
Maximum resolution, pix | 1920x1080 |
Sensor size | 1/2" (7.2x4.05mm) |
Pixel size, μm | 3.75x3.75 |
Interface connectors | USB 2.0, HDMI 1.4 |
Memory card | SD up to 32GB |
Ability to connect additional equipment | USB mouse, flash stick (USB) |
Light sensitivity | 1175mV with 1/30s |
Signal/noise ratio | 0.15mV at 1/30s |
Exposure time | 0.04ms–1000ms |
Video recording | ✓ |
Frame rate, fps at resolution | 60@1920x1080 (HDMI), 50@1920x1080 (USB) |
Place of installation | trinocular tube, eyepiece tube instead of an eyepiece |
Image format | *.jpg, *.tif |
Video format | *.h264/*.h265, *.mp4 |
Spectral range, nm | 380–650 (built-in IR filter) |
Shutter type | ERS (electronic rolling shutter) |
System requirements | Windows 8/10/11 (32bit and 64bit), Mac OS X, Linux, up to 2.8GHz Intel Core 2 or higher, minimum 4GB RAM, USB2.0 port, RJ45, CD-ROM, 19" or larger display |
Software | HDMI: built-in; USB: MAGUS View |
Mount type | C-mount |
Body | CNC aluminum alloy |
Power supply | DC adapter 12V, 1A |
Operating temperature range, °F | 14...+122 |
Operating humidity range, % | 30 — 80 |
