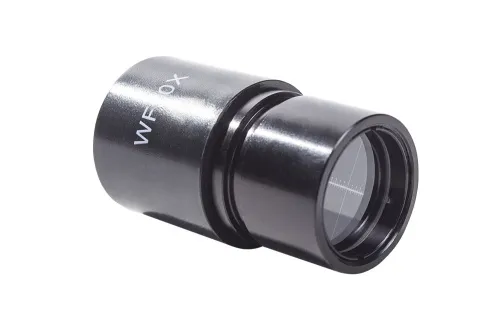

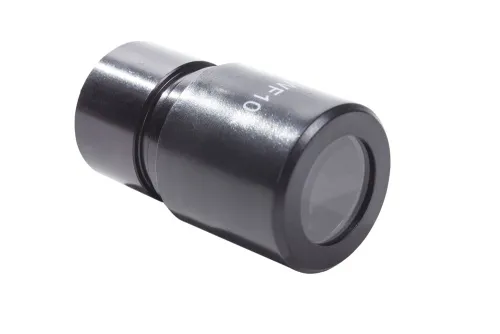

Levenhuk 10x/18 Eyepiece with Reticle

The price is valid only for the online store and may differ from the prices in retail stores.

Designed for biological microscopes

Availability

Product ID	67513
Brand	Levenhuk, Inc., USA
Warranty	2 years
EAN	5905555003467
Package size (LxWxH)	2x1.2x1.2 in
Shipping Weight	0.1 lb

Description

Levenhuk 10x/18 Eyepiece with Reticle will expand the capability of your biological microscope. The eyepiece provides 10x magnification power. The eyepiece reticle allows for precise measurement of studied specimens.

The optics, made of highly transparent optical glass, ensure clear, sharp, detailed views of observed microscope samples.

Specifications
Magnification, x	10
Field of view, mm	18
Scale value, mm	0.1
Barrel diameter, in	0.913
Usage	General use product. May be used by kids over 3 years old.

Specifications

Product ID	67513
Brand	Levenhuk, Inc., USA
Warranty	2 years
EAN	5905555003467
Package size (LxWxH)	2x1.2x1.2 in
Shipping Weight	0.1 lb

References
and downloads

High-resolution images (zip)

(ZIP, 82.25 Kb)

click to
download

Questions and Answers

Antony Sanchez (2018.01.04)

I found an old Levenhuk 2k biological microscope but an eyepiece was lost. Can I use this one with it?

Customer service:

Levenhuk 10x/18 Eyepiece with Reticle is suitable for any microscope with a 23.2 mm barrel diameter.

Ivy Burt (2017.11.10)

can I install this eyepiece on Levenhuk 3ST?

Customer service:

Barrel diameter of the Levenhuk 10x/18 Eyepiece is 23.2 mm. Levenhuk 3ST Microscope has 30.5 mm eyepiece barrel diameter. It cannot be fixed securely.

J.A. (2016.10.30)

Is this suitable for Levenhuk 320 Biological Microscope?

Customer service:

Hello! Yes, it is suitable.

Julian Ratliff (2016.08.18)

Is it suitable for Levenhuk D870T? Will I need one or two pieces?

Customer service:

Levenhuk 10x/18 Eyepiece with Reticle is used for one eye, therefore you will need only one piece.
