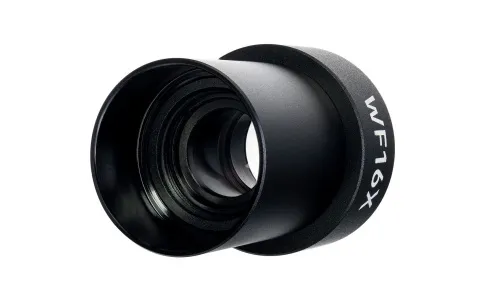

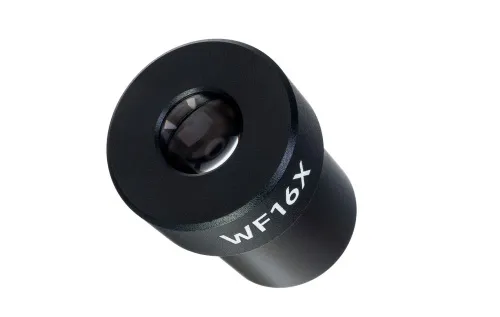

MAGUS E16 16х/11mm Eyepiece (D 23.2mm)

The price is valid only for the online store and may differ from the prices in retail stores.

Magnification: 16x. Field of view: 11mm

Availability

Product ID	83457
Brand	MAGUS
Warranty	2 years
EAN	5905555021041
Package size (LxWxH)	2.8x1.6x1.6 in
Shipping Weight	0.1 lb

Description

The eyepiece is one of the elements that influences the magnification in the optical system of a microscope. The E16 eyepiece model has 16x magnification and is the most effective when combined with 4x, 10x, 20x, and 40x objectives. It is designed to fit the standard 23.2mm eyepiece tube.

The eyepiece does not have diopter adjustment. If there is a need to do this, use the diopter adjustment ring of the microscope (if available).

Compatibility:

MAGUS Bio 230B Biological Microscope
MAGUS Bio 230BL Biological Microscope
MAGUS Bio 230T Biological Microscope
MAGUS Bio 230TL Biological Microscope
MAGUS Pol 850 Polarizing Microscope

specifications

Product ID	83457
Brand	MAGUS
Warranty	2 years
EAN	5905555021041
Package size (LxWxH)	2.8x1.6x1.6 in
Shipping Weight	0.1 lb
Barrel diameter, mm	23.2
Lens material	optical glass
Magnification, x	16
Field of view, mm	11
Eye relief, in	0.4
Eyepiece diopter adjustment, diopters	no
Body	copper
