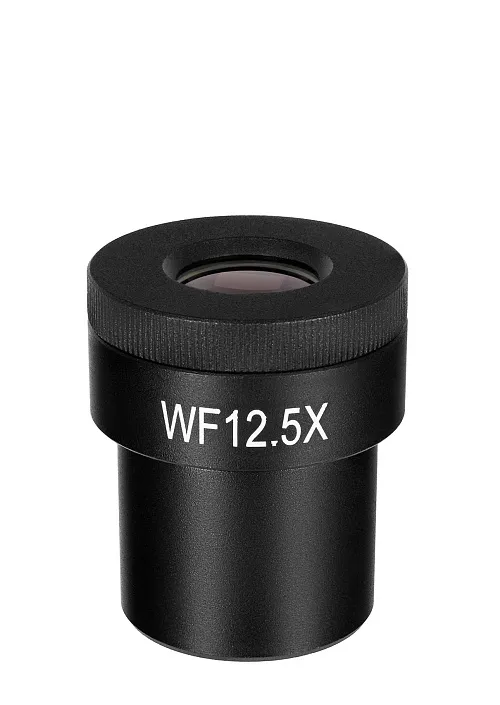

MAGUS ME12 12.5х/14mm Eyepiece (D 30mm)

The price is valid only for the online store and may differ from the prices in retail stores.

Magnification: 12.5x. Field of view: 14mm

Availability

Product ID	82916
Brand	MAGUS
Warranty	2 years
EAN	5905555019000
Package size (LxWxH)	1.6x3.1x1.6 in
Shipping Weight	0.2 lb

Description

The 12.5x eyepiece is designed for 4x, 10x, 20x, 40x, 60x, and 100x objectives. It is compatible with a 30mm eyepiece tube. The eyepiece has no diopter adjustment mechanism to match the observer’s eyesight. You can adjust the focus on the microscope, which is equipped with a diopter adjustment ring (located on the eyepiece tube). The eyepiece has a 10mm eye relief, which makes it convenient to observe with glasses.

Compatibility:

MAGUS Bio 250B Biological Microscope
MAGUS Bio 250BL Biological Microscope
MAGUS Bio 250T Biological Microscope
MAGUS Bio 250TL Biological Microscope
MAGUS Bio V300 Biological Inverted Microscope
MAGUS Bio V350 Biological Inverted Microscope
MAGUS Metal 600 Metallurgical Microscope
MAGUS Metal 600 BD Metallurgical Microscope
MAGUS Metal 630 Metallurgical Microscope
MAGUS Metal 630 BD Metallurgical Microscope
MAGUS Metal 650 Metallurgical Microscope
MAGUS Metal 650 BD Metallurgical Microscope
MAGUS Metal V700 Metallurgical Inverted Microscope
MAGUS Metal V700 BD Metallurgical Inverted Microscope
MAGUS Lum 400 Fluorescence Microscope
MAGUS Lum 400L Fluorescence Microscope
MAGUS Lum V500 Fluorescence Inverted Microscope
MAGUS Lum V500L Fluorescence Inverted Microscope
MAGUS Pol 800 Polarizing Microscope

specifications

Product ID	82916
Brand	MAGUS
Warranty	2 years
EAN	5905555019000
Package size (LxWxH)	1.6x3.1x1.6 in
Shipping Weight	0.2 lb
Barrel diameter, mm	30
Lens material	optical glass
Magnification, x	12.5
Field of view, mm	14
Eye relief, in	0.4
Eyepiece diopter adjustment, diopters	no
Body	copper
