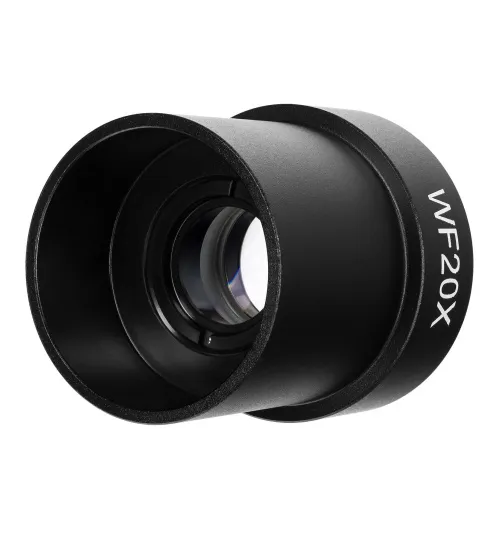

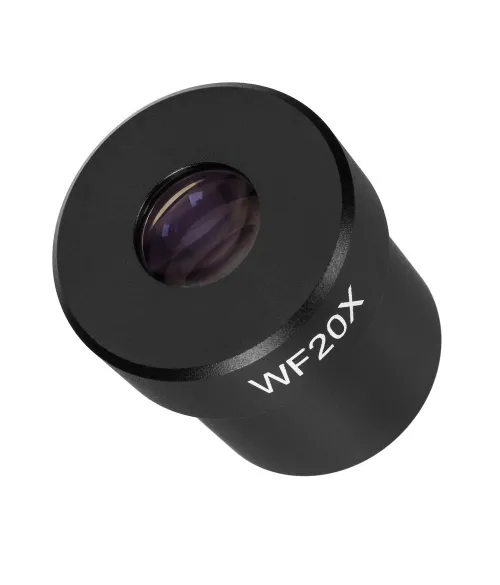

MAGUS ME20 20х/12mm Eyepiece (D 30mm)

The price is valid only for the online store and may differ from the prices in retail stores.

Magnification: 20x. Field of view: 12mm

Availability

Product ID	82919
Brand	MAGUS
Warranty	2 years
EAN	5905555019024
Package size (LxWxH)	1.6x2.8x1.6 in
Shipping Weight	0.1 lb

Description

This eyepiece has 20x magnification and a 12mm field of view for 4x, 10x, and 20x objectives. The eyepiece has no diopter adjustment to compensate for the user’s vision (diopter adjustment). It is possible, however, when used with a microscope that has a diopter adjustment ring (the ring is located on the tube). The eye relief is 10mm, which means that the eyepiece is convenient for those who wear glasses. It is mounted into an eyepiece tube 30mm in diameter.

Compatibility

MAGUS Bio 250B Biological Microscope
MAGUS Bio 250BL Biological Microscope
MAGUS Bio 250T Biological Microscope
MAGUS Bio 250TL Biological Microscope
MAGUS Bio V300 Biological Inverted Microscope
MAGUS Bio V350 Biological Inverted Microscope
MAGUS Metal 600 Metallurgical Microscope
MAGUS Metal 600 BD Metallurgical Microscope
MAGUS Metal 630 Metallurgical Microscope
MAGUS Metal 630 BD Metallurgical Microscope
MAGUS Metal 650 Metallurgical Microscope
MAGUS Metal 650 BD Metallurgical Microscope
MAGUS Metal V700 Metallurgical Inverted Microscope
MAGUS Metal V700 BD Metallurgical Inverted Microscope
MAGUS Lum 400 Fluorescence Microscope
MAGUS Lum 400L Fluorescence Microscope
MAGUS Lum V500 Fluorescence Inverted Microscope
MAGUS Lum V500L Fluorescence Inverted Microscope
MAGUS Pol 800 Polarizing Microscope
MAGUS Stereo 9T Stereomicroscope

specifications

Product ID	82919
Brand	MAGUS
Warranty	2 years
EAN	5905555019024
Package size (LxWxH)	1.6x2.8x1.6 in
Shipping Weight	0.1 lb
Barrel diameter, mm	30
Lens material	optical glass
Magnification, x	20
Field of view, mm	12
Eye relief, in	0.4
Eyepiece diopter adjustment, diopters	no
Body	copper
