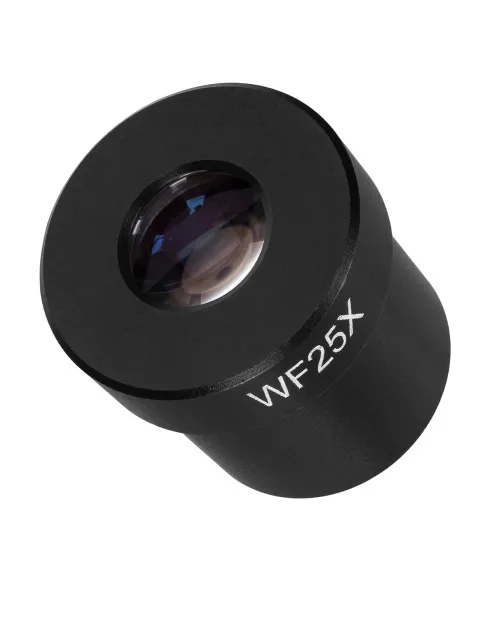

MAGUS ME25 25х/9mm Eyepiece (D 30mm)

The price is valid only for the online store and may differ from the prices in retail stores.

Magnification: 25x. Field of view: 9mm

Availability

Product ID	82921
Brand	MAGUS
Warranty	2 years
EAN	5905555019031
Package size (LxWxH)	1.6x3.1x1.6 in
Shipping Weight	0.1 lb

Description

This eyepiece has 25x magnification for use with 4x and 10x objectives. This model does not have a diopter adjustment ring. If it is necessary to adjust the focus to match the observer’s vision, you should use the eyepiece with a microscope that features a diopter adjustment ring that is located on the eyepiece tube. The eye relief is 10mm and, therefore, the observer can view while wearing glasses. The diameter of the eyepiece tube is 30mm.

Compatibility:

MAGUS Bio 250B Biological Microscope
MAGUS Bio 250BL Biological Microscope
MAGUS Bio 250T Biological Microscope
MAGUS Bio 250TL Biological Microscope
MAGUS Bio V300 Biological Inverted Microscope
MAGUS Bio V350 Biological Inverted Microscope
MAGUS Metal 600 Metallurgical Microscope
MAGUS Metal 600 BD Metallurgical Microscope
MAGUS Metal 630 Metallurgical Microscope
MAGUS Metal 630 BD Metallurgical Microscope
MAGUS Metal 650 Metallurgical Microscope
MAGUS Metal 650 BD Metallurgical Microscope
MAGUS Metal V700 Metallurgical Inverted Microscope
MAGUS Metal V700 BD Metallurgical Inverted Microscope
MAGUS Lum 400 Fluorescence Microscope
MAGUS Lum 400L Fluorescence Microscope
MAGUS Lum V500 Fluorescence Inverted Microscope
MAGUS Lum V500L Fluorescence Inverted Microscope
MAGUS Pol 800 Polarizing Microscope
MAGUS Stereo 9T Stereomicroscope

specifications

Product ID	82921
Brand	MAGUS
Warranty	2 years
EAN	5905555019031
Package size (LxWxH)	1.6x3.1x1.6 in
Shipping Weight	0.1 lb
Barrel diameter, mm	30
Lens material	optical glass
Magnification, x	25
Field of view, mm	9
Eye relief, in	0.4
Eyepiece diopter adjustment, diopters	no
Body	copper
