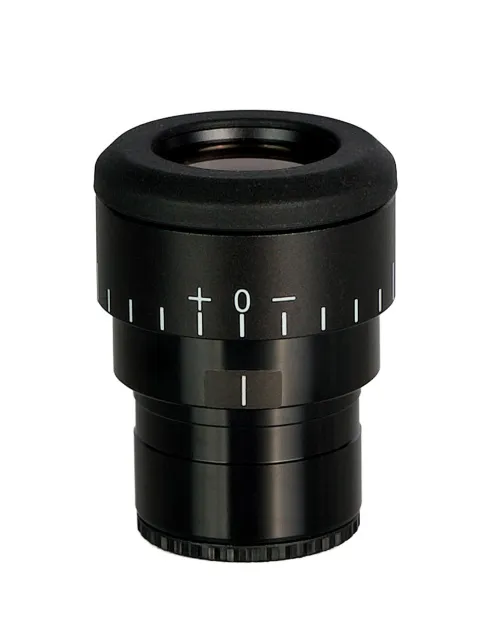

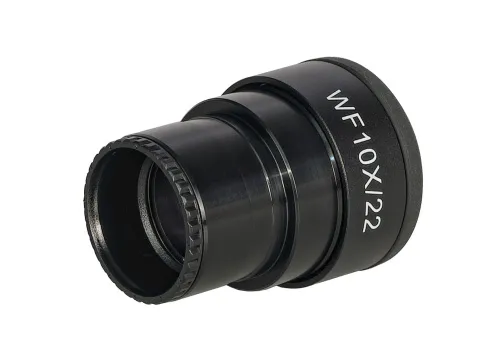

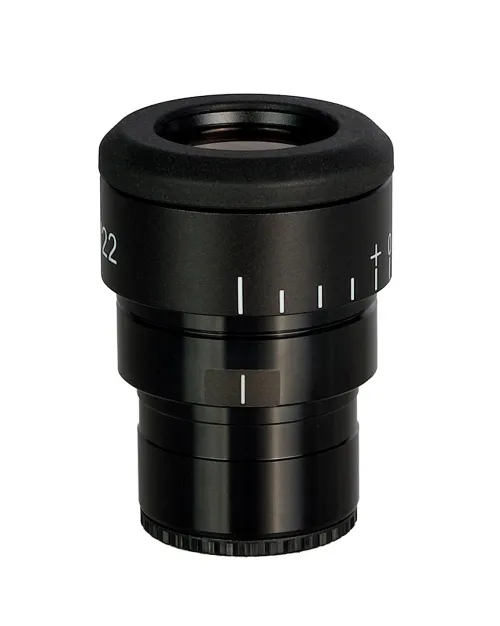

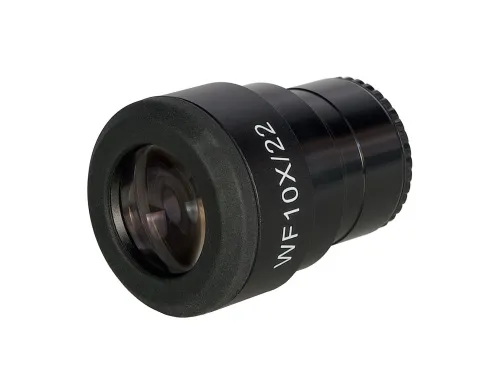

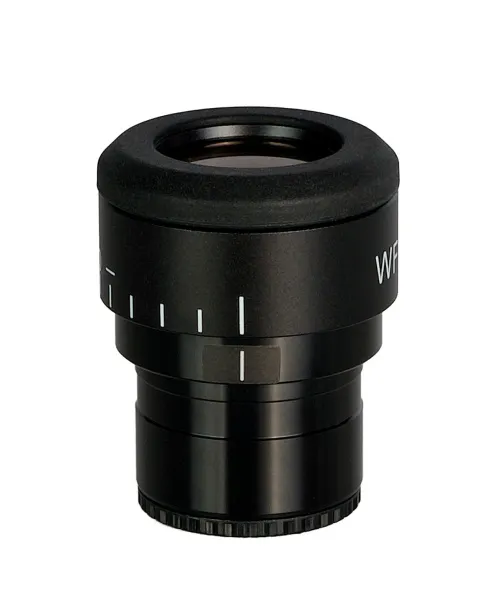

MAGUS ND10P 10х/22mm Eyepiece with pointer and diopter adjustment (D 30mm)

see all

The price is valid only for the online store and may differ from the prices in retail stores.

Magnification: 10x. Field of view: 22 mm

Availability

Product ID	85088
Brand	MAGUS
Warranty	2 years
EAN	5905555025421
Package size (LxWxH)	1.6x2.8x1.6 in
Lens material	optical glass

Description

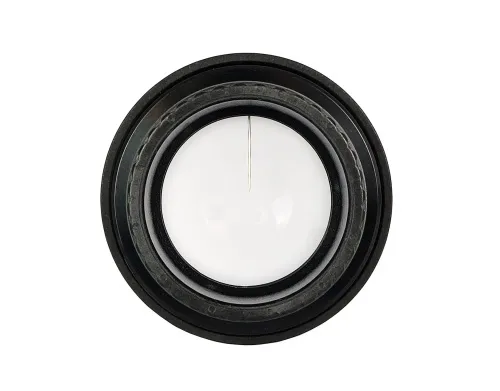

An eyepiece with a pointer is used for educational purposes and in group research. Using the pointer allows you to precisely direct the audience’s attention on a particular structure or element of the specimen. The eyepiece with a pointer is installed instead of a standard 10x eyepiece. A paired eyepiece without a pointer is installed in the second eyepiece tube.

This eyepiece is compatible with microscopes that have a 30mm eyepiece tube.

Compatibility:

MAGUS Bio 260T Biological Microscope
MAGUS Bio DH260 Biological Microscope
MAGUS Bio 270T Biological Microscope
MAGUS Bio 290T Biological Microscope
MAGUS Bio V360 Biological Inverted Microscope
MAGUS Lum 450L Fluorescence Microscope
MAGUS Metal V790 DIC Metallurgical Inverted Microscope
MAGUS Pol 890 Polarizing Microscope

Specifications

Product ID	85088
Brand	MAGUS
Warranty	2 years
EAN	5905555025421
Package size (LxWxH)	1.6x2.8x1.6 in
Lens material	optical glass
Magnification, x	10
Field of view, mm	22
Eye relief, in	0.4
Eyepiece diopter adjustment, diopters	±5D
Barrel diameter, mm	30

References
and downloads

MAGUS: information leaflet (pdf)

(PDF, 551.73 Kb)

MAGUS: information booklet (pdf)

(PDF, 18.12 Mb)

High-resolution images (zip)

(ZIP, 6.26 Mb)
