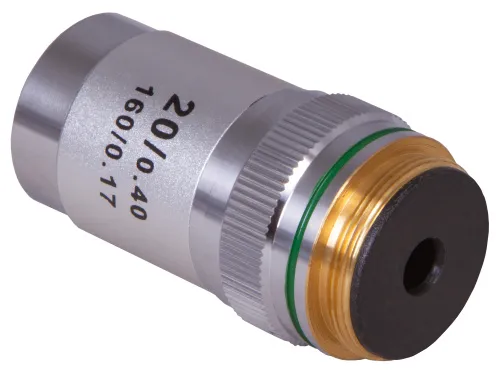

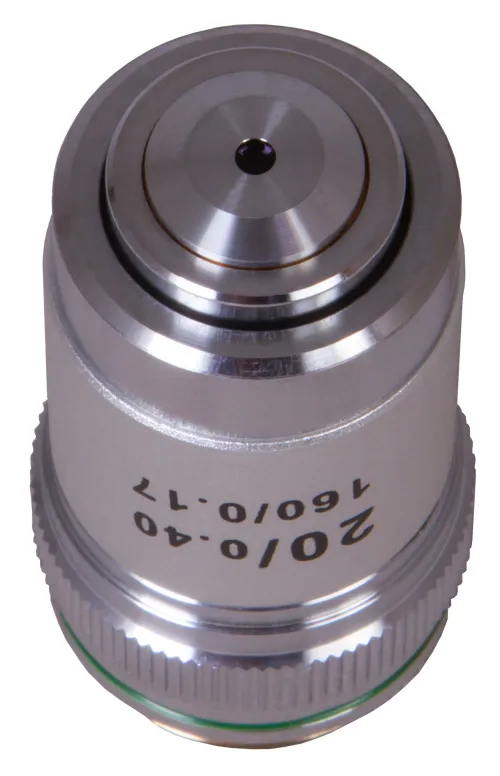

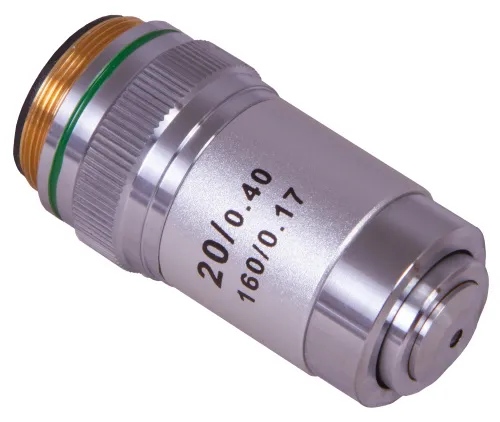

Levenhuk MED 20x Achromatic Objective

The price is valid only for the online store and may differ from the prices in retail stores.

Magnification: 20x. Aperture: 0.4

Availability

Product ID	76066
Brand	Levenhuk, Inc., USA
Warranty	2 years
EAN	5905555004679
Package size (LxWxH)	1.2x2.4x1.2 in
Shipping Weight	0.2 lb

Description

The Levenhuk MED 20x achromatic objective provides a clearer and more detailed image in comparison with classical optical designs. Therefore, it is well suited for laboratory research. It has glass optics and a metal body. The reliable and durable construction allows it to be used for many years. The objective provides 10x magnification.

The Levenhuk MED 20x achromatic objective is a great choice for expanding the capabilities of a professional microscope. It is compatible with the microscopes of any brand.

The kit includes:

Objective
Plastic case

specifications

Product ID	76066
Brand	Levenhuk, Inc., USA
Warranty	2 years
EAN	5905555004679
Package size (LxWxH)	1.2x2.4x1.2 in
Shipping Weight	0.2 lb
Lens material	optical glass
Body material	copper
Objective class by aberration correction degree	achromatic
Magnification, x	20
Aperture	0.4
Working distance, mm	2.1
Parfocal distance, mm	45
Cover glass thickness, mm	0.17
Compatible tube length, mm	160
Thread type	WJ 4/5"*1/36"
Spring-loaded frame	no
Immersion	no
