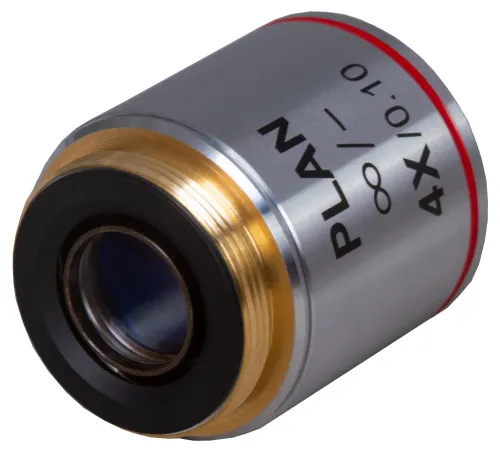

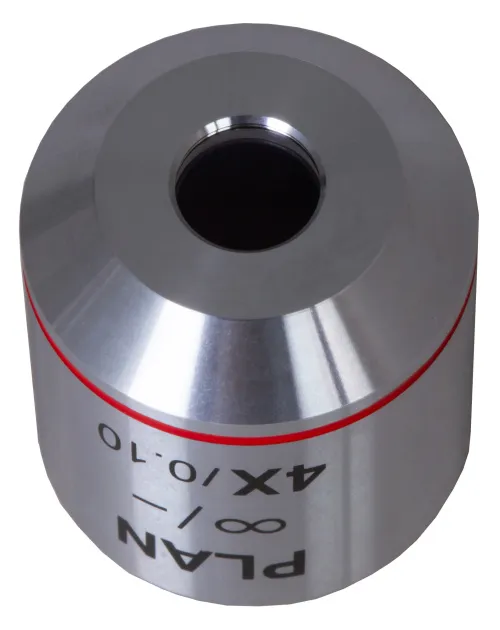

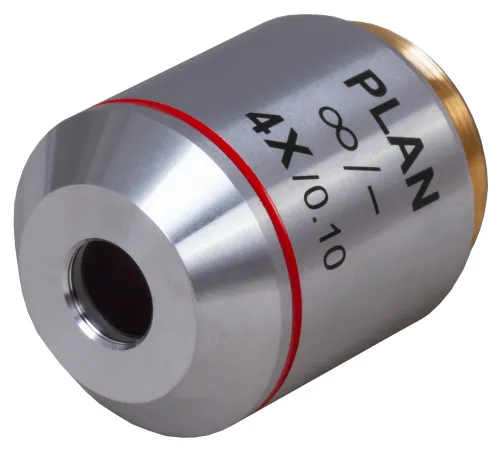

Levenhuk MED 4x Infinity Plan Achromatic Objective

The price is valid only for the online store and may differ from the prices in retail stores.

Infinity-corrected. Magnification: 4x. Aperture: 0.1

Availability

Product ID	76074
Brand	Levenhuk, Inc., USA
Warranty	2 years
EAN	5905555004754
Package size (LxWxH)	1.2x2.4x1.2 in
Shipping Weight	0.2 lb

Description

The Levenhuk MED 4x infinity plan achromatic objective is specially designed for infinity-corrected microscopes (their tube length is adjusted to infinity). These are professional optical instruments that are used in laboratories. The main advantage of the infinity-corrected optical system is the ability to install any additional parts, e.g. polarizers.

The Levenhuk MED 4x infinity plan achromatic objective provides 4x magnification, produces flat images across the field of view, and increases the contrast of the transmitted image. It features glass optics and a metal body.

The kit includes:

Objective
Plastic case

specifications

Product ID	76074
Brand	Levenhuk, Inc., USA
Warranty	2 years
EAN	5905555004754
Package size (LxWxH)	1.2x2.4x1.2 in
Shipping Weight	0.2 lb
Lens material	optical glass
Body material	copper
Objective class by aberration correction degree	plan achromatic
Magnification, x	4
Aperture	0.1
Working distance, mm	19.37
Parfocal distance, mm	45
Cover glass thickness, mm	0.17
Compatible tube length, mm	infinity
Thread type	WJ 4/5"*1/36"
Spring-loaded frame	no
Immersion	no
