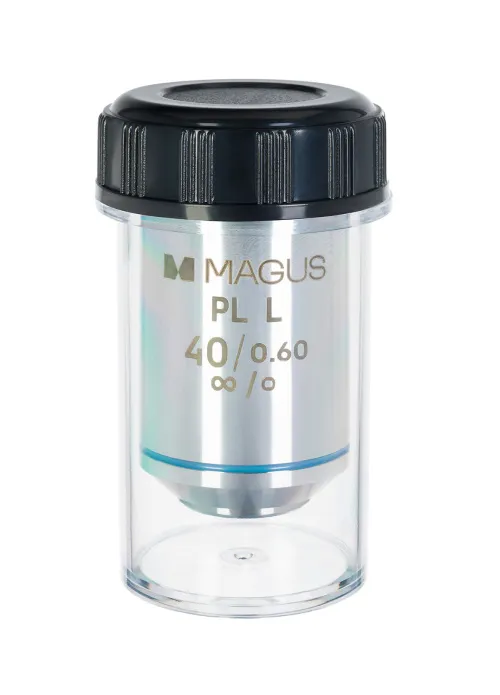

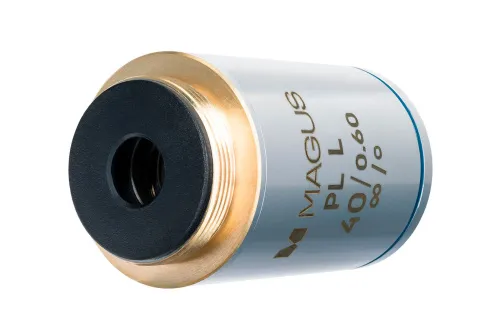

MAGUS 40PLL 40х/0.60 Plan L WD 3.98mm Objective

The price is valid only for the online store and may differ from the prices in retail stores.

Infinity-corrected plan achromatic objective. Magnification: 40x. Aperture: 0.60

Availability

Product ID	83462
Brand	MAGUS
Warranty	2 years
EAN	5905555021096
Package size (LxWxH)	2.8x1.6x1.6 in
Shipping Weight	0.3 lb

Description

Objective with 40x magnification and a maximum resolution of 0.46µm. It is designed for installation in a metallurgical microscope. It can be used to observe objects with a non-flat surface. To avoid damaging the lens surface in such conditions, the objective is designed for a long working distance of 3.98mm. A cover glass is not used when working with the objective.

The plan achromatic objective eliminates chromatic distortion for blue and red colors, and spherical distortion for green. The field of view is wide and without distortion due to the property of plan achromatic objectives to correct field curvature by 90%.

The objective is designed for infinity; its parfocality is 45mm. It works well with eyepieces with a wide field of view (22mm). The best image detail can be obtained with eyepieces with magnification from 7x to 15x. When combined with a 10x/22mm eyepiece, it will form a field of view of 0.55mm. The useful magnification of the microscope when working with this objective will be 300–600x.

Compatibility:

MAGUS Metal 600 Metallurgical Microscope
MAGUS Metal 630 Metallurgical Microscope
MAGUS Metal 650 Metallurgical Microscope
MAGUS Metal V700 Metallurgical Inverted Microscope

Specifications
Lens material	optical glass
Objective class by aberration correction degree	plan achromatic
Tube length	infinity-corrected (∞)
Contrast technique	brightfield
Magnification, x	40
Aperture	0.60
Working distance, mm	3.98
Parfocal distance, mm	45
Cover glass thickness, mm	without a cover glass
Spring-loaded frame	+
Immersion	−
Body material	copper

specifications

Product ID	83462
Brand	MAGUS
Warranty	2 years
EAN	5905555021096
Package size (LxWxH)	2.8x1.6x1.6 in
Shipping Weight	0.3 lb
