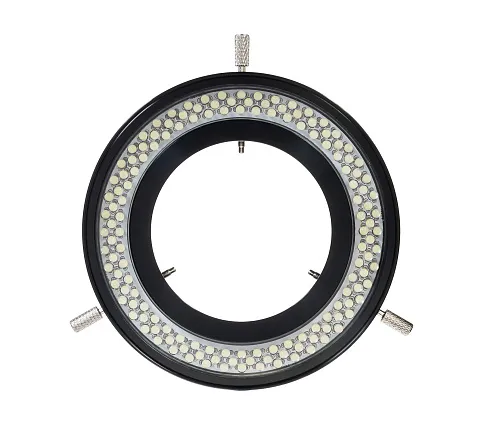

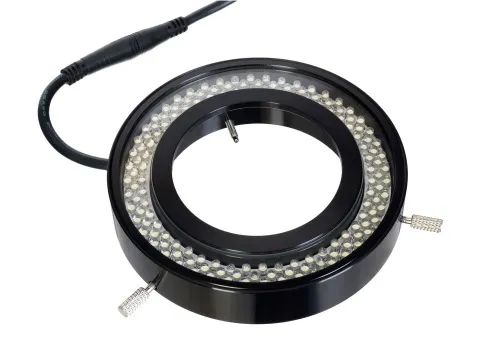

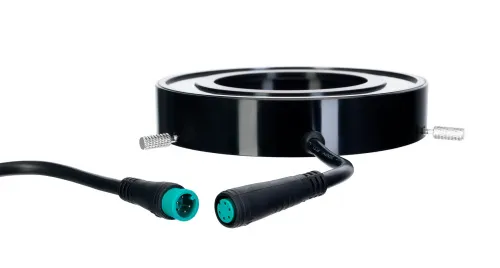

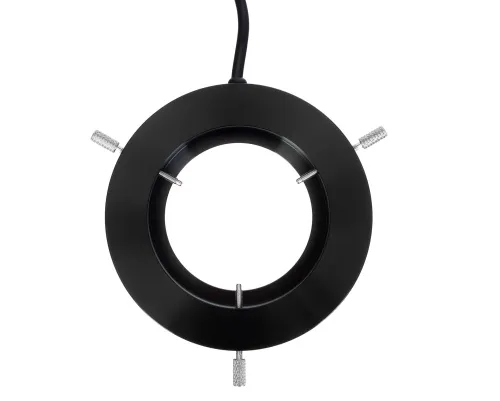

MAGUS LED 144-S4 Ring Light with sector control

see all

The price is valid only for the online store and may differ from the prices in retail stores.

Reflected light illuminator for stereomicroscopes

144 LEDs, with adjustable brightness

Light source - lamp type

Aluminum

Body material

Availability

Product ID	83522
Brand	MAGUS
Warranty	2 years
EAN	5905555019871
Package size (LxWxH)	9.4x7.9x2.8 in
Shipping Weight	1.3 lb

Description

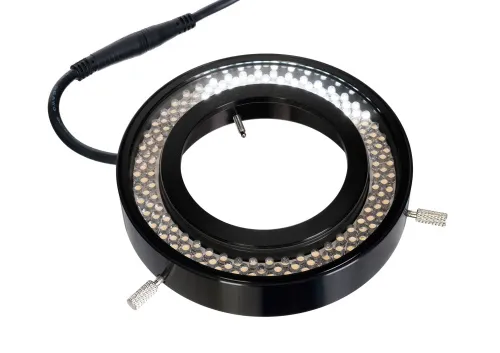

Ring reflected light illuminator for stereomicroscopes.

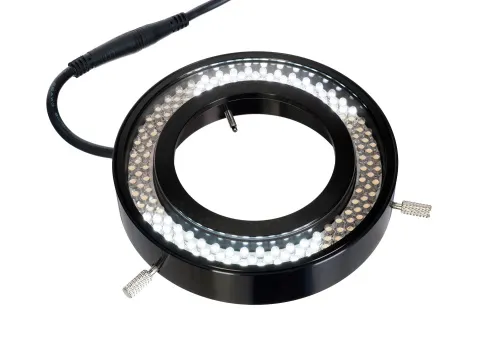

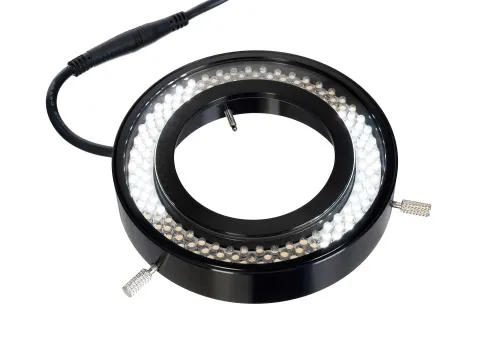

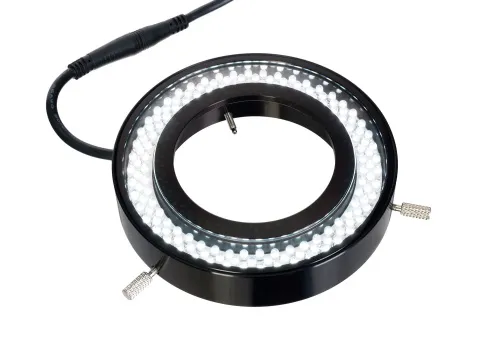

It has two use modes: When all the sectors are turned on simultaneously, it becomes a source of shadowless lighting; when one or two sectors are turned on, it simulates oblique lighting.

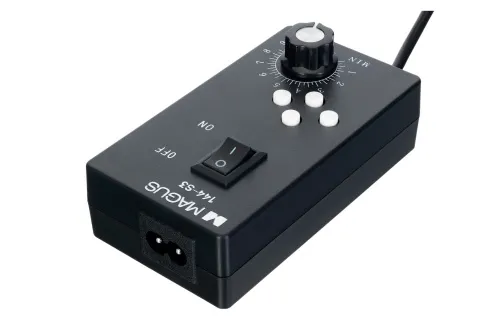

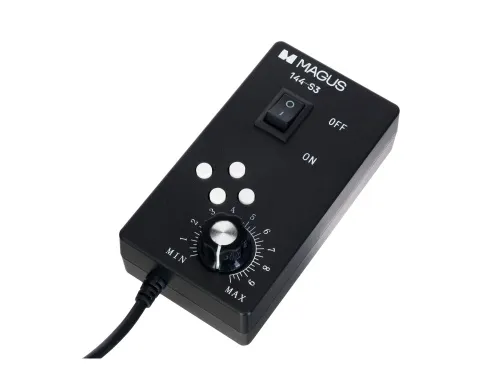

It comes with a remote control: The button turns on the desired sector, and the handle adjusts the brightness.
The MAGUS LED 144-S4 illuminator is used for observing relief objects and samples with a highly reflective surface, and for inspecting printed circuit boards.

Compatibility:

MAGUS Stereo 7B Stereomicroscope
MAGUS Stereo 7T Stereomicroscope
MAGUS Stereo 8B Stereomicroscope
MAGUS Stereo 8T Stereomicroscope
MAGUS Stereo 9T Stereomicroscope
MAGUS Stereo 7BH Microscope Head
MAGUS Stereo 7TH Microscope Head
MAGUS Stereo 8BH Microscope Head
MAGUS Stereo 8TH Microscope Head

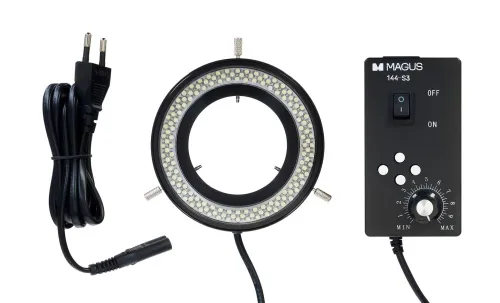

The kit includes:

Reflected light illuminator
Control block
Power cord
Specifications

specifications

Product ID	83522
Brand	MAGUS
Warranty	2 years
EAN	5905555019871
Package size (LxWxH)	9.4x7.9x2.8 in
Shipping Weight	1.3 lb
Light source	144 LEDs, with adjustable brightness
Sectors	4
Input voltage, V	110 — 240
Output voltage, V	12
Body	aluminum
Barrel diameter, mm	60 — 70
Operating temperature range, °F	32...+104
Operating humidity range, %	20 — 85
