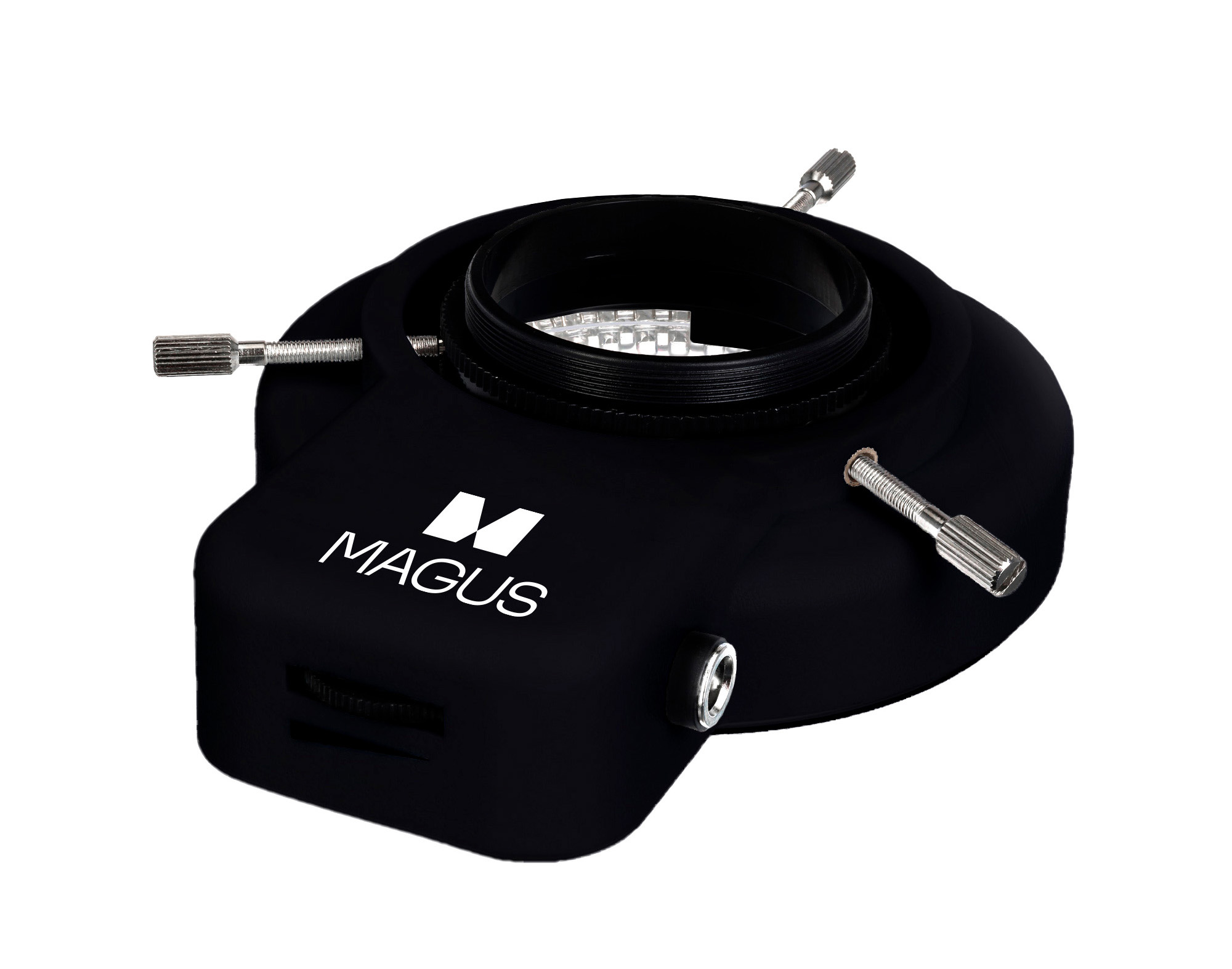

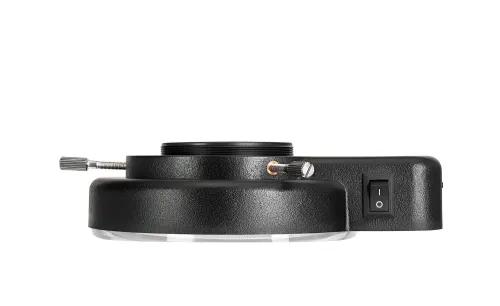

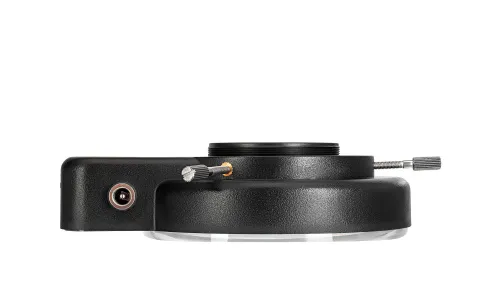

MAGUS LED 144A Ring Light with a Threaded Adapter

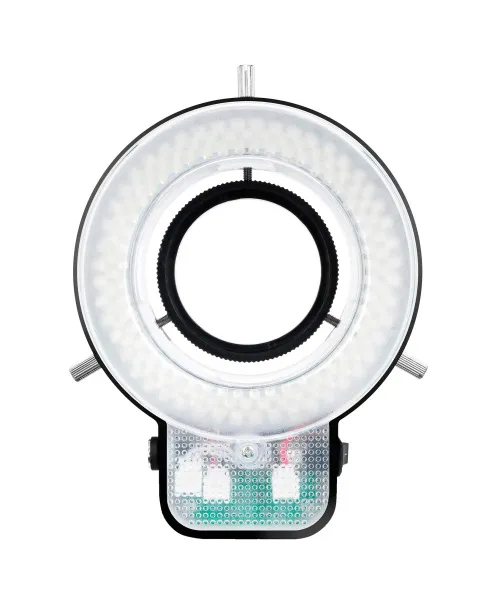

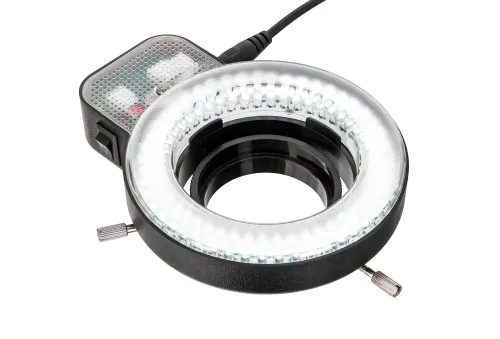

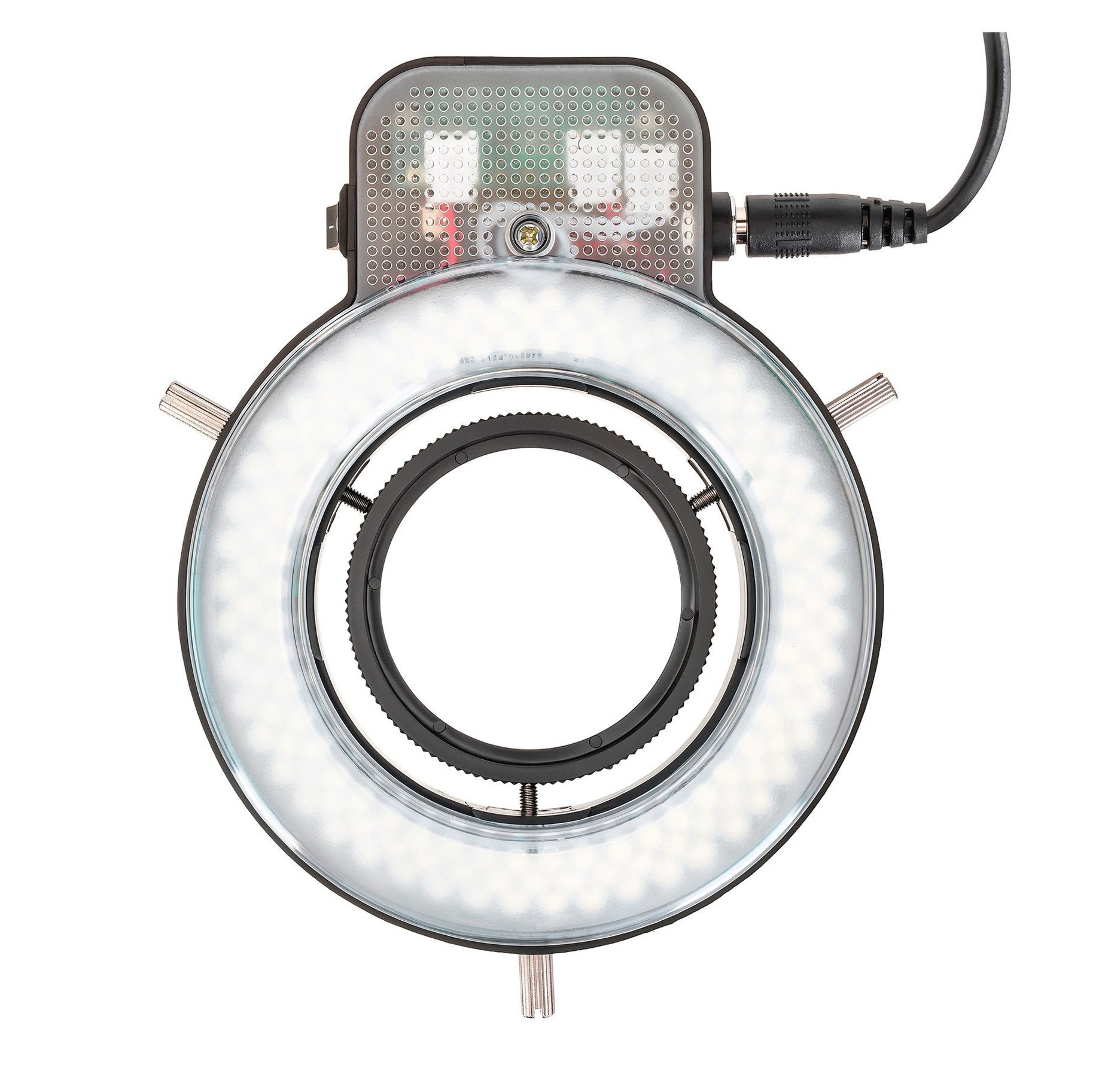

This ring light provides even, reflected-light illumination of samples for stereomicroscopy. The light source features 144 LEDs that are arranged in a circle around the objective lens at an angle to the optical axis. This design concentrates the light in the observation area, ensuring uniform sample illumination and minimizing shadows.

The color temperature is in the cool white range (approximately 6500K). The illuminator enhances the contrast of fine structures and improves the visual resolution of details. The brightness is adjustable from 0% to 100%, allowing you to set the optimal illumination level based on the sample type and observation technique.

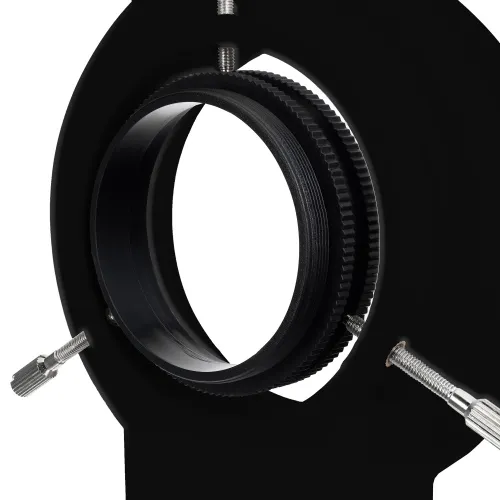

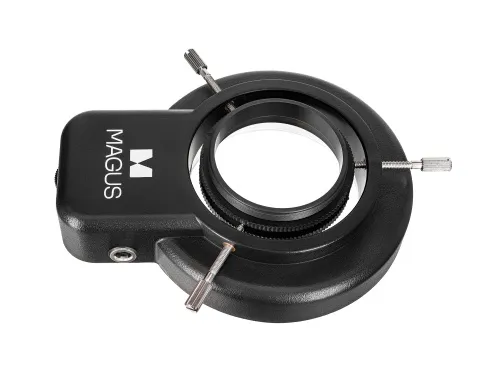

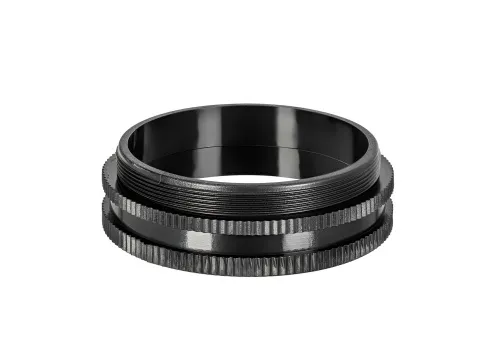

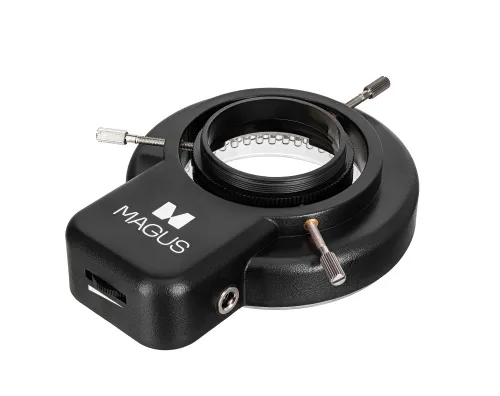

The ring light attaches to the outer groove of the objective housing and is secured with three screws. A threaded adapter is included for microscopes that lack this groove. To install it using the adapter, first screw the adapter into the internal thread of the housing, and then attach the ring light to the adapter’s groove. It can also be mounted directly onto a housing without a groove if the outer diameter does not exceed 60mm and the profile is cylindrical rather than conical.

The device is powered by an AC power supply using the included power cord and adapter.

Key features:

• Shadow-free illumination for reflected-light observations
• 144 LEDs with smooth brightness adjustment from 0% to 100%
• Cool white light (approximately 6500K) for the enhanced contrast of fine structures
• Threaded adapter included for mounting on various microscope models
• AC power supply

Compatibility:

• MAGUS Stereo 7B Stereomicroscope
• MAGUS Stereo 7T Stereomicroscope
• MAGUS Stereo 8B Stereomicroscope
• MAGUS Stereo 8T Stereomicroscope
• MAGUS Stereo 9T Stereomicroscope
• MAGUS Stereo 7BH Microscope Head
• MAGUS Stereo 7TH Microscope Head
• MAGUS Stereo 8BH Microscope Head
• MAGUS Stereo 8TH Microscope Head
• Levenhuk 5ST Binocular Microscope (requires the adapter for mounting)
• Levenhuk ZOOM 1B Binocular Microscope (mounts directly onto the groove without the adapter)
• Levenhuk ZOOM 1T Trinocular Microscope (mounts directly onto the groove without the adapter)
• Other microscopes with a similar design

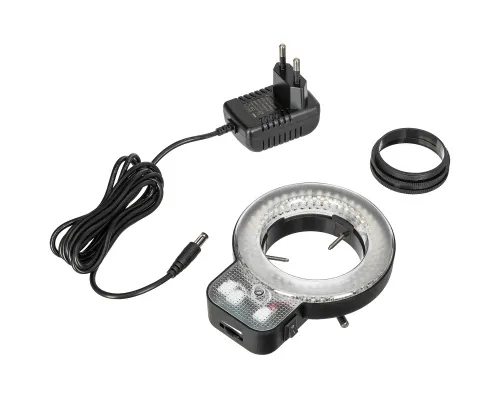

Package:

• Ring light
• Threaded adapter
• Power cord with an AC adapter
• User manual and warranty card
