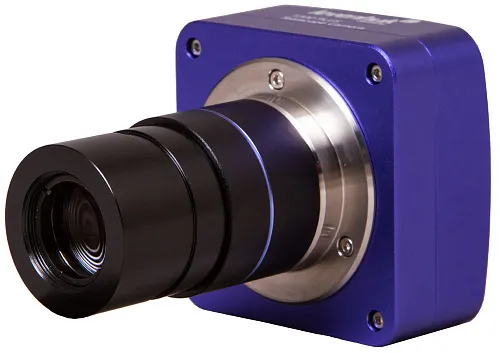

Levenhuk T300 PLUS Digital Camera

see all

The price is valid only for the online store and may differ from the prices in retail stores.

Camera for telescope. Designed for astrophotography

Matrix resolution – the number of megapixels that it consists of; influences the detail of the image

3.2x3.2

The pixel size is directly proportional to the sensor’s sensitivity

0.244ms–2s

Camera shutter speed is the time during which the shutter remains open, thereby allowing light to enter the sensor

Availability

Product ID	70361
Brand	Levenhuk, Inc., USA
Warranty	lifetime
EAN	5905555003863
Package size (LxWxH)	5.9x5.9x3.9 in
Shipping Weight	1.3 lb

Description

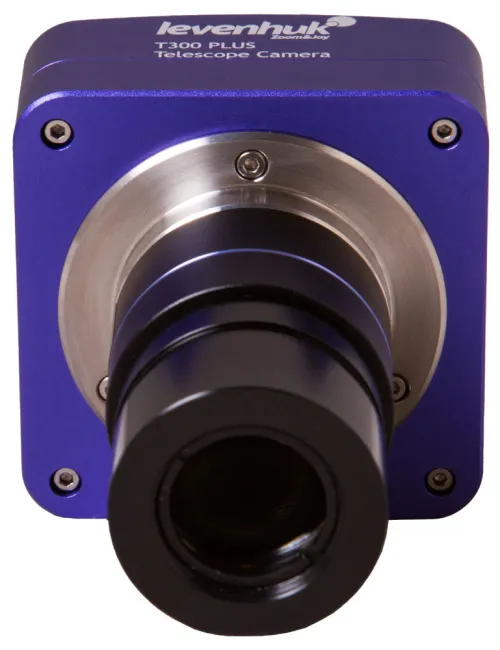

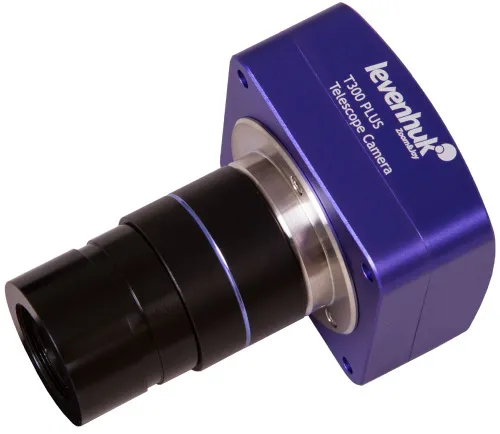

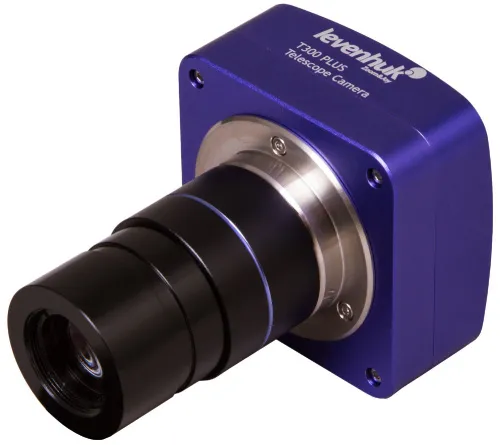

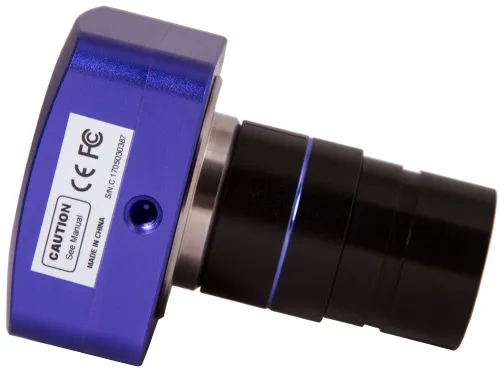

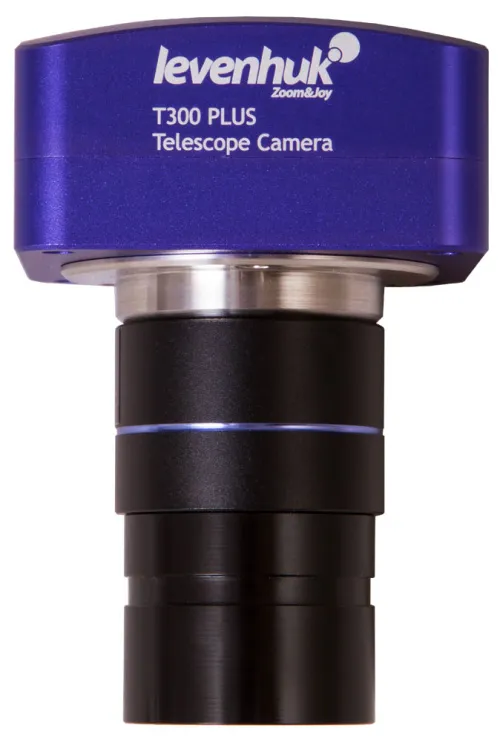

The Levenhuk T300 PLUS Digital Camera is an indispensable tool for astrophotography. This camera allows you to watch the night sky using a computer, take photos of deep-sky objects and record videos of interesting astronomical events. The camera has a 3-megapixel sensor that is great for shooting the Moon and the planets of the Solar system.

This camera was designed for use with a telescope of any type and brand, as a 1.25" adapter is included in the package. After the camera is connected to a computer, it transmits clear and colorful pictures on a screen instantly in real time. The camera does not need to be charged, as it is powered directly from the computer via USB cable.

To make the observation of objects of different brightness easier, the Levenhuk T300 PLUS Digital Camera has a shutter speed control. You will only need to choose the shooting time to get the best quality images. The camera has three preset modes with a frame rate of 8 to 43 frames per second.

To ensure the best possible performance of your new camera, make sure your computer complies with the system requirements specified by the manufacturer. Compatible OS include Mac, Linux, and Windows. A USB 2.0 port is required to establish a connection. If the software does not run on your computer, please contact us and specify your operating system and its version (for Linux: platform and kernel version).

The latest version of Levenhuk Software for Windows supports eight languages: English, French, German, Polish, Russian, Simplified Chinese, Traditional Chinese, Turkish.

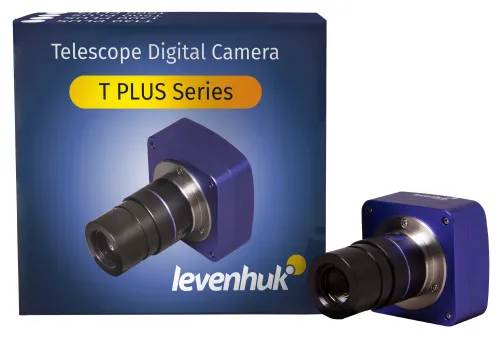

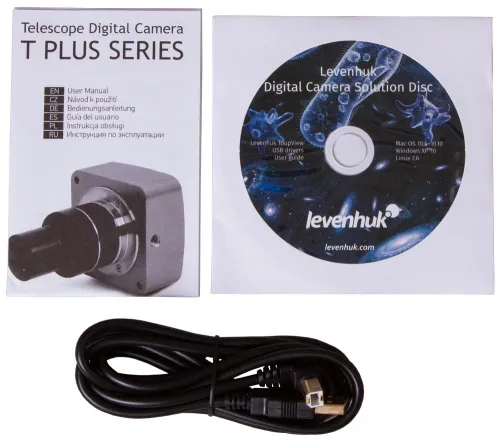

The kit includes:

Levenhuk telescope digital camera
Adapter (31.75mm/1.25")
USB cable for connection to PC or laptop and power supply
Installation CD with Levenhuk image editing software and the required drivers
User manual and lifetime warranty

specifications

Product ID	70361
Brand	Levenhuk, Inc., USA
Warranty	lifetime
EAN	5905555003863
Package size (LxWxH)	5.9x5.9x3.9 in
Shipping Weight	1.3 lb

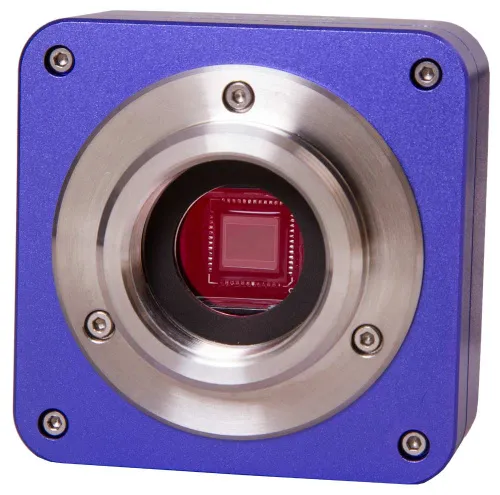

Sensor	CMOS
Megapixels	3
Maximum resolution, pix	2048x1536
Sensor size	1/2"
Pixel size, μm	3.2x3.2
Light sensitivity	1 v / lux.sec @ 550 nm
Exposure time	0.244ms–2s
Video recording	✓
Frame rate, fps at resolution	8@2048x1536, 22@1024x768, 43@680x510
Active range, dB	61
Place of installation	31.75-mm (1.25") diameter focuser, instead of an eyepiece
Image format	.jpg, .bmp, .png, .tif
Video format	output: .wmv, .avi, .h264 (Windows 8 and later), h265 (Windows 10 and later)
Spectral range, nm	380–650 (built-in IR filter)
Shutter type	ERS (electronic rolling shutter)
White balance	manual, automatic
Exposure control	manual, automatic
Software features	image size, brightness, exposure time

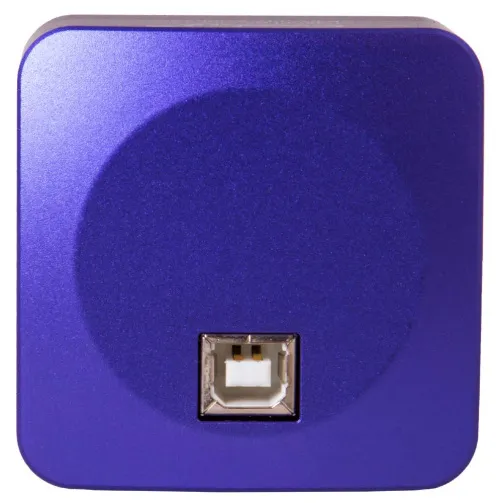

Output	USB 2.0, 480 Mbps
System requirements	Windows 8/10/11 (32bit and 64bit), Mac OS X, Linux, up to 2.8GHz Intel Core 2 or higher, minimum 2GB RAM, USB 2.0 port, CD-ROM
Software	Levenhuk
Body	metal
Power supply	2.0 USB cable
Operating temperature range, °F	14...+122
Additional	the camera is compatible with the Ekos StellarMate app (a StellarMate controller must be purchased separately)

References
and downloads

User manual: Levenhuk T PLUS digital cameras (pdf)

(PDF, 100.67 Kb)

LevenhukLite software: quick start guide (pdf)

(PDF, 3.36 Mb)

LevenhukLite 4.12 software 2024-09 (zip)

(ZIP, 270.85 Mb)

High-resolution images (zip)

(ZIP, 70.5 Mb)

click to
download

Questions and Answers

Emmy (2020.04.21)

Hello, the IR cut filter in front of the sensor got scratched... Is there any way it can be replaced? I would be very thankful if there is a possibility to buy such a filter, I can manage to replace it myself. Can you suggest a seller from where I can buy that kind of filter? Do you sell such filters? Thank you very much!

Customer service:

Dear Emmy, thank you for your inquiry. Currently, we do not have spare parts for this camera. We will notify you if we receive filters in our product range. Please do not hesitate to contact us if you need any further assistance.

Denis (2019.01.31)

Ok, let's put it in another way. With an ordinar eyepiece I can determine the real FOV of the telescope using the parameters of the eyepiece - focal length and its FOV. But using this camera (together with its focuser), it is harder for me to determine the real FOV I am able to see without knowing in advance the focal length and FOV of the focuser of the camera.
Briefly, I want to know what FOV I am able to see through my telescope using this device.
Thanks again.

Customer service:

Denis, the focal length of the camera is about 10mm.
Is there any additional information you might need?

Denis (2019.01.31)

I would like to know the optical parameters of the focuser attached to the camera. Parameters like field of view and focal length. Thank you!

Customer service:

Denis, thank you for your inquiry. There is no extra adapter or focuser that you need to attach to the camera. The camera fits any telescope. The only requirement is 1.25" diameter focuser.

Denis (2019.01.25)

I would like to know what is the focal length and filed of view of the eyepiece which is connected to the camera.

Customer service:

Dear Denis, thank you for interest in Levenhuk products. The camera is attached directly to focuser instead of the eyepiece. Is there any additional information you might need?

Rob Abz (2018.11.23)

Is the A/D 8, 10, or 12 bit per color for the T Plus series cameras?

Customer service:

Dear Rob, thank you for your interest in Levenhuk products. Yes, it is A/D 8.
Is there any additional information you might need?

Ronald Bogue (2018.10.23)

1. Can the IR cut filter be removed.
2. Are the 1.25 tube camera threads cctv c-mount or cs-mount.
3. Can a regular telescope 1.25 tube filters be used.
4. Can a regular 1.25 telescope tube be used instead.
Thank You Ronald

Customer service:

Dear Ronald, thank you for interest in Levenhuk products. According to our warranty policy, we do not recommend to remove any parts of the product. C-mount and CS-mount have the same thread. Other filters and tubes cannot be used with camera. Is there any additional information you might need?
