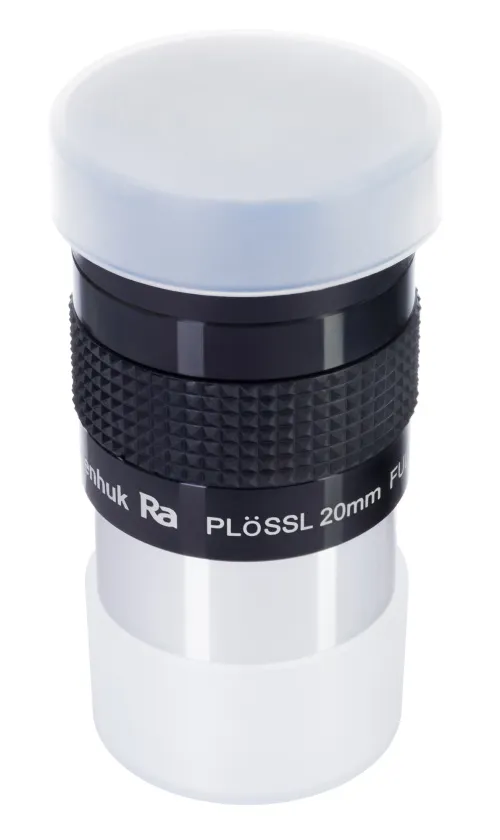

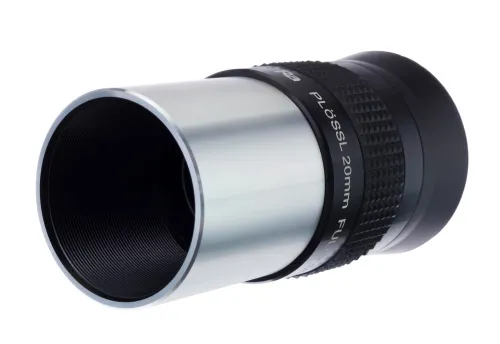

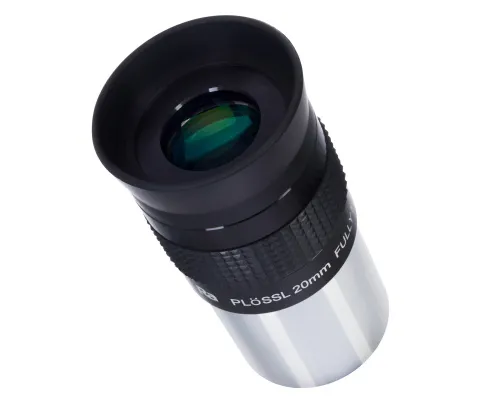

Levenhuk Plössl 20 mm Eyepiece

see all

The price is valid only for the online store and may differ from the prices in retail stores.

Classic symmetrical eyepiece. Focal length: 20mm. Field of view: 50°

Plössl, 4 elements in 2 groups

Optical design is a set of optical elements that is assembled in a certain way

1.25

The barrel diameter of the accessory must match the barrel diameter of the device; otherwise, an adapter will be required

Fully multi-coated

The optics coating improves the image quality

Availability

Product ID	50761
Brand	Levenhuk, Inc., USA
Warranty	2 years
EAN	5905555003764
Package size (LxWxH)	3.1x1.6x1.6 in
Shipping Weight	0.2 lb

Description

The Levenhuk Plössl 20 mm multi-element eyepiece with a 1.25'' barrel diameter is a good choice for searching and studying astronomical objects. It can be used with telescopes of any brand and optical design. The eyepiece features a filter thread that can provide more interesting and exciting observations of planets, the moon, nebulae, and galaxies.

The optics are made of fully multi-coated glass, so the eyepiece renders a crisp and clear image across the entire field of view. The field of view is 50°. The eyecup is made of rubber, and it can be folded or unfolded, if it is necessary. The eyepiece's body is aluminum.

Features:

Universal multi-element eyepiece
Lenses are made of multi-coated optical glass
The field of view is 50°
Aluminum body; fold-down rubber eyecup
Standard 1.25'' barrel diameter; filter thread

The kit includes:

Eyepiece
Protective caps – 2 pcs

specifications

Product ID	50761
Brand	Levenhuk, Inc., USA
Warranty	2 years
EAN	5905555003764
Package size (LxWxH)	3.1x1.6x1.6 in
Shipping Weight	0.2 lb
Type	standard
Optical scheme	Plössl, 4 elements in 2 groups
Barrel diameter, in	1.25
Optics material	optical glass
Lens coating	fully multi-coated
Focal length, in	0.8
Field of view, °	50
Eye relief, in	0.7
Suitable for observations while wearing glasses	✓
Eyepiece diameter, mm	1.25
Filter thread	✓
Filter thread	M28.5x0.6mm
Body	aluminum
Eyecup	rubber, foldable
Protective caps included	✓
Operating temperature range, °F	23...+95
