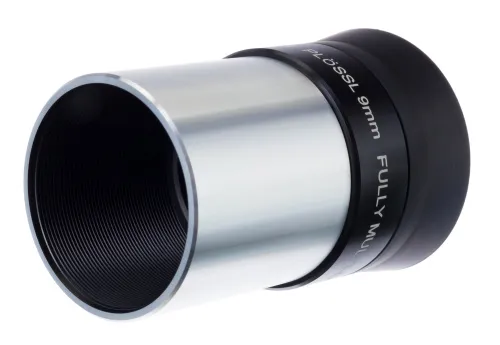

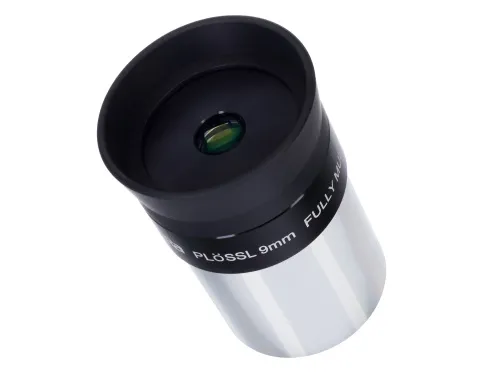

Levenhuk Plössl 9mm Eyepiece

see all

The price is valid only for the online store and may differ from the prices in retail stores.

Classic symmetrical eyepiece. Focal length: 9mm. Field of view: 50°

Plössl, 4 elements in 2 groups

Optical design is a set of optical elements that is assembled in a certain way

1.25

The barrel diameter of the accessory must match the barrel diameter of the device; otherwise, an adapter will be required

Fully multi-coated

The optics coating improves the image quality

Availability

Product ID	50758
Brand	Levenhuk, Inc., USA
Warranty	2 years
EAN	5905555003733
Package size (LxWxH)	3.1x1.6x1.6 in
Shipping Weight	0.1 lb

Description

The Levenhuk Plössl 9mm eyepiece expands the capabilities of any telescope. This universal eyepiece features a 50° field of view and a light filter thread. It is well suited for planetary and the moon observation as well as for deep sky exploration. The accessory has the most common 1.25'' barrel diameter, so it can be used with telescopes of any brand and design.

The lenses are made of fully multi-coated glass. The body is made of aluminum and the eyecup of rubber. If necessary, you can fold or unfold it.

Features:

Universal eyepiece with a 50° field of view
Multi-element glass optical design
Fully multi-coated lenses render the brightest picture
1.25" barrel diameter
Possibility of installing a light filter

The kit includes:

Eyepiece
Protective caps – 2 pcs

specifications

Product ID	50758
Brand	Levenhuk, Inc., USA
Warranty	2 years
EAN	5905555003733
Package size (LxWxH)	3.1x1.6x1.6 in
Shipping Weight	0.1 lb
Type	standard
Optical scheme	Plössl, 4 elements in 2 groups
Barrel diameter, in	1.25
Optics material	optical glass
Lens coating	fully multi-coated
Focal length, in	0.4
Field of view, °	50
Eye relief, in	0.3
Eyepiece diameter, mm	1.25
Filter thread	✓
Filter thread	M28.5x0.6mm
Body	aluminum
Eyecup	rubber, foldable
Protective caps included	✓
Operating temperature range, °F	23...+95

References
and downloads

High-resolution images (zip)

(ZIP, 7.39 Mb)

click to
download

Questions and Answers

Jack Moran (2014.12.23)

I looked up the formula and I guess you meant 100x ?

Customer service:

Yes, sorry about the typo, it's 100x indeed.

Jack Moran (2014.12.22)

Hi, Levenhuk! Can I use Levenhuk Plossl 9 mm Eyepiece with Celectron PowerSeeker 114EQ? Thank you in advance!

Customer service:

Yes, Levenhuk Plossl 9 mm Eyepiece is suitable for your telescope model. The magnification produced by this combination is 900x.
