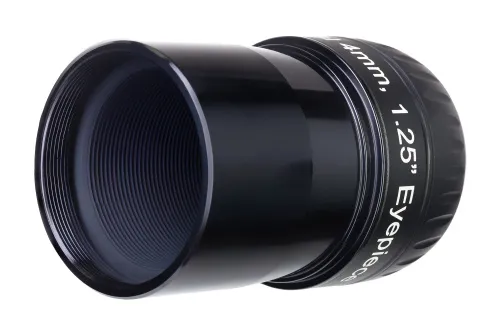

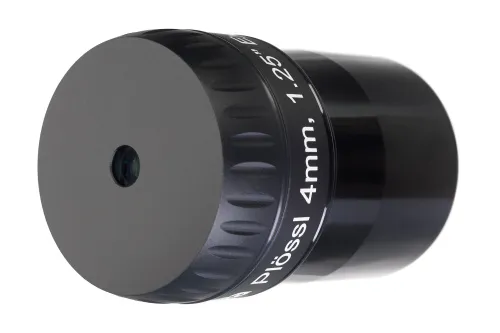

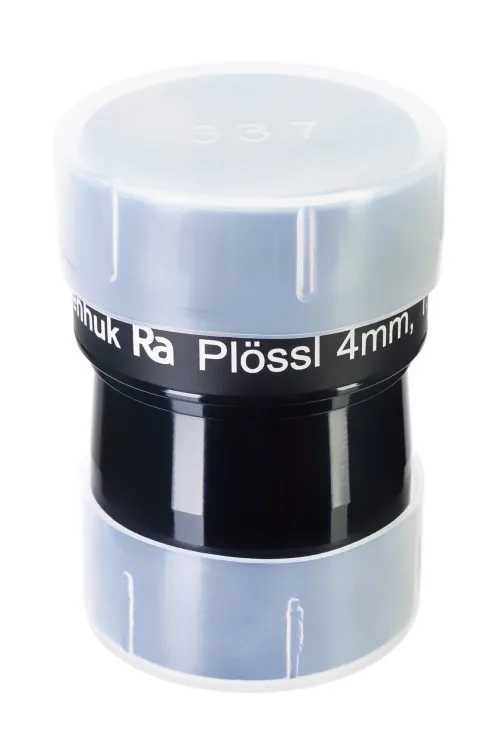

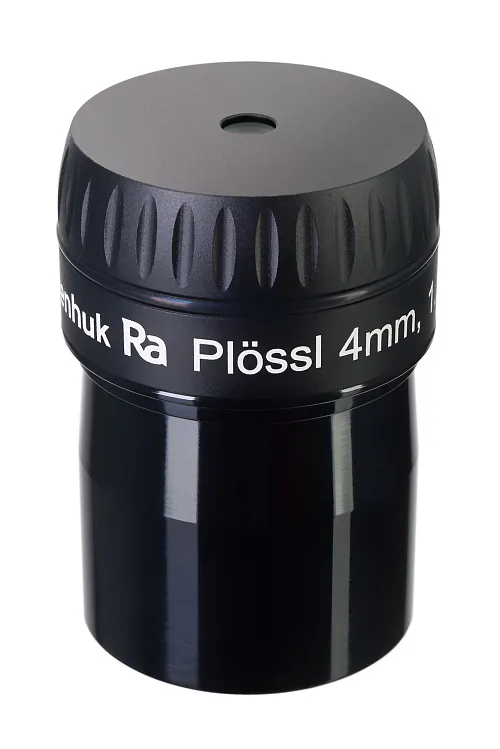

Levenhuk Ra Plössl 4mm, 1.25" Eyepiece

see all

The price is valid only for the online store and may differ from the prices in retail stores.

Classic symmetrical eyepiece. Focal length: 4mm. Field of view: 55°

Plössl, 4 elements in 2 groups

Optical design is a set of optical elements that is assembled in a certain way

1.25

The barrel diameter of the accessory must match the barrel diameter of the device; otherwise, an adapter will be required

Fully multi-coated

The optics coating improves the image quality

Availability

Product ID	45110
Brand	Levenhuk, Inc., USA
Warranty	2 years
EAN	5905555006338
Package size (LxWxH)	2.4x2x2 in
Shipping Weight	0.2 lb

Description

The Levenhuk Ra Plössl 4mm, 1.25" eyepiece is a universal accessory for telescopes (best suited for planetary telescopes). This eyepiece can be used with a telescope of any optical design and brand. The eyepiece barrel diameter is 1.25".

Due to its multi-element fully multi-coated glass optics, it renders a sharp and detailed picture over the entire field of view, which is 55°. This is a very good indicator for eyepieces of this class. The optics reduce most of optical aberrations; the center of the field of view features the best picture resolution.

The eyepiece's body is made of aluminum.

Features:

Entry level eyepiece for planetary observations
Good field of view, minimum aberration
Effective with both high-aperture optics and medium aperture
Fully multi-coated glass lenses
1.25'' barrel diameter

The kit includes:

Eyepiece
Protective caps – 2 pcs
Cleaning wipe

specifications

Product ID	45110
Brand	Levenhuk, Inc., USA
Warranty	2 years
EAN	5905555006338
Package size (LxWxH)	2.4x2x2 in
Shipping Weight	0.2 lb
Type	standard
Optical scheme	Plössl, 4 elements in 2 groups
Barrel diameter, in	1.25
Optics material	optical glass
Lens coating	fully multi-coated
Focal length, in	0.2
Field of view, °	55
Eye relief, in	0.1
Eyepiece diameter, mm	4.8
Body	aluminum
Protective caps included	✓

References
and downloads

High-resolution images (zip)

(ZIP, 9.67 Mb)

click to
download

Questions and Answers

Seth Olsen (2015.12.22)

Tell me the difference between this eyepiece and {{ {{ https://www.levenhuk.com/catalogue/accessories/levenhuk-plossl-4mm-eyepiece/.link.link }} }}. The latter one has 5 degrees smaller field of view... which one will be preferable?

Customer service:

Levenhuk Plossl 4 mm Eyepiece
has 50° field of view and 3.5mm eye relief. Levenhuk Ra Plossl 4 mm 1.25" Eyepiece features 55° field of view and 2.4mm eye relief. Levenhuk Ra Plossl 4 mm 1.25" Eyepiece will be a better choice due to its wider field of view.

Jimmie (2015.11.24)

Hello! Which filter should I choose for planetary observations with my 70/500 telescope? 4mm (125x) or 7.5mm + 2x barlow lens (133x). Thanks in advance!

Customer service:

We would recommend using 4mm eyepiece without Barlow lens.

Ken Reese (2015.11.23)

is it suitable for Sky-watcher bk 705AZ3?

Customer service:

Yes, it is suitable for your telescope model. Together they will give you 125x magnification power.

Jason Cash (2015.06.22)

Hello! I'm planning to buy this eyepiece for my Sky-Watcher Dob 8". The kit includes two eyepieces 25mm and 10 mm. According to my calculations I will be able to get 300x magnification, which is quite enough for observations of Solar System planets... Is it suitable for deep-sky observations? at least bright objects? Thanks!

Customer service:

Levenhuk Ra Plossl 4 mm Eyepiece is suitable for observing planets, as well as bright deep-sky objects.

Luck121 (2015.05.22)

Good day. Can I use this eyepiece on my Levenhuk Strike 900 PRO?

Customer service:

With Levenhuk Ra Plossl 4 mm 1.25" Eyepiece installed on the Levenhuk Strike 900 PRO telescope you will exceed the highest practical power of your telescope. We recommend using Levenhuk Ra Plossl 6 mm 1.25" Eyepiece - http://www.levenhuk.com/catalogue/accessories/telescope-accessories/telescope-eyepieces/levenhuk-ra-plossl-6mm-1-25-eyepiece/

Dennis Jackson (2015.05.19)

Hello, is this eyepiece suitable for use with Celestron travel scope 70?

Customer service:

Yes, the Levenhuk Ra Plossl 4 mm 1.25" eyepiece is suitable for your telescope model. The resulting magnification is 100x.

James Blake (2015.01.07)

Does this eyepiece fit Skywatcher BKP1145EQ1? Will there be a distinct advantage compared to 10 mm one that comes in the kit?

Customer service:

Yes, Levenhuk Ra Plossl 4 mm Eyepiece is suitable for use with your telescope. Eyepieces purchased separately are usually better than the ones that come included in the kit.

Cheryl Cline (2014.10.13)

Good day, is this eyepiece suitable for Levenhuk Strike 80 NG, won't image be blurred?

Customer service:

If you use the Levenhuk Ra Plossl 4mm eyepiece with the Levenhuk Strike 80 NG telescope, you will exceed the highest practical power of the telescope, which will significantly affect image quality. In your case we recommend using 4.5mm eyepiece.

Reed White (2014.10.11)

Will such eyepiece fit Orion SkyQuest XT6? Thanks!

Customer service:

Yes, the Levenhuk Ra Plossl 4mm eyepiece is suitable for use with your telescope.

Matt Storm (2014.07.23)

Is this eyepiece suitable for Sky-Watcher BK 1409EQ2?

Customer service:

Yes, Levenhuk Ra Plossl 4 mm 1.25" Eyepiece is great for use with your telescope.

Erin Garza (2014.07.06)

Is this eyepiece suitable for Bresser National Geographic 76/700 EQ?

Customer service:

No, unfortunately it won't fit. We recommend using 5 mm or 6 mm eyepiece. For example, Levenhuk Ra Plossl 6 mm 1.25" Eyepiece - http://www.levenhuk.com/catalogue/accessories/telescope-accessories/telescope-eyepieces/levenhuk-ra-plossl-6mm-1-25-eyepiece/

Laurence (2014.07.01)

Greetings! I'd like to know if I can install 4 mm eyepiece on Levenhuk Skyline 70x700 AZ. The highest practical power of the model is 140x, and the eyepiece will produce 175x. Will the image be blurred?

Customer service:

Yes, unfortunately the resulting image will be blurred. We recommend using 5 mm eyepiece, but we don't have this item in stock at the moment. You can also use Levenhuk Ra Plossl 6 mm 1.25" Eyepiece - http://www.levenhuk.com/catalogue/accessories/telescope-accessories/telescope-eyepieces/levenhuk-ra-plossl-6mm-1-25-eyepiece/

Manuel (2014.04.22)

Does it fit Celestron Omni 150? And together with 2x Barlow Lens?

Customer service:

Yes, it's suitable. When using Levenhuk Ra Plossl 4 mm Eyepiece with your telescope resulting magnification will be about 187x. But using it together with 2x Barlow Lens will leed to exceeding the maximum useful magnification of this model that is around 375-fold.
