UA Levenhuk MS3 Mechanical Scale
Attachable scale to control slide movements along – X and Y axes. Features coordinate and nonius scales
| Product ID | 71786 |
| Brand | Levenhuk, Inc., USA |
| Warranty | 2 years |
| EAN | 5905555003511 |
| Package size (LxWxH) | 4.7x4.3x0.8 in |
| Shipping Weight | 0.3 lb |

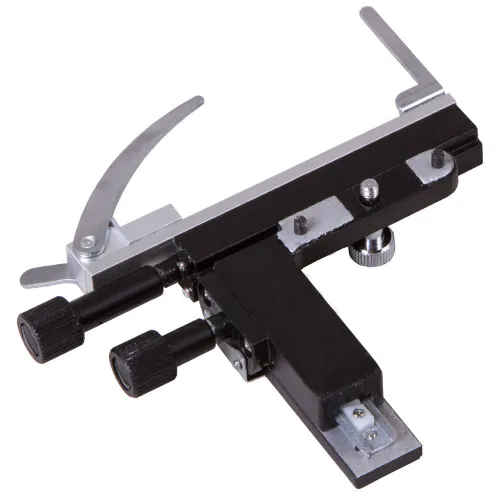

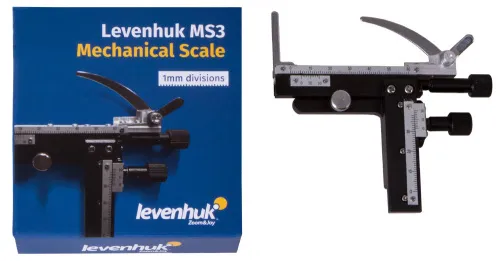

The Levenhuk MS3 Mechanical Scale is a removable accessory useful with a biological microscope for detailed examination of microscope slides. It is installed on the stage instead of the slide holders and is fixed with a stage screw.

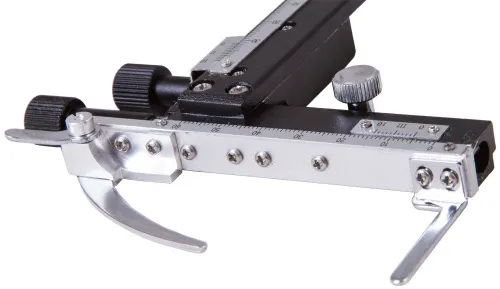

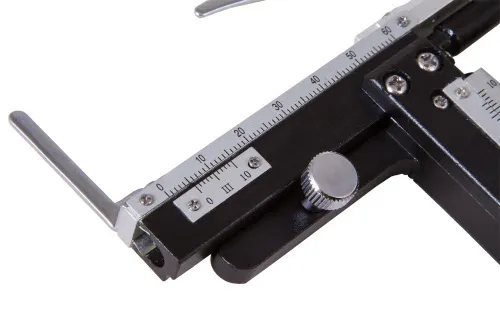

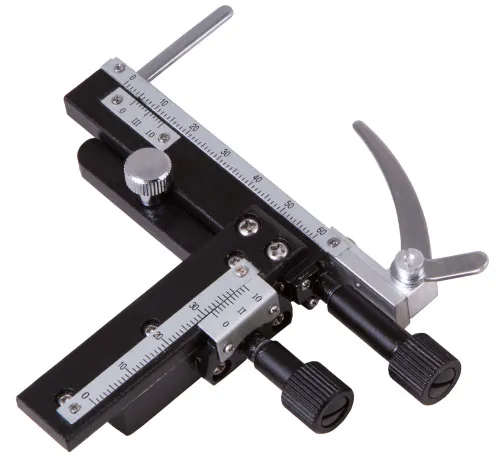

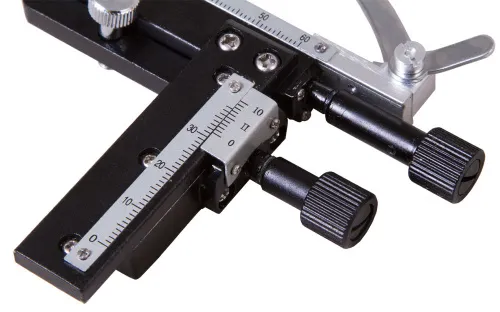

With the Levenhuk MS3 Mechanical Scale, you can move the microscope slides along X axis (left-right) and Y axis (forwards-backwards), and also determine their coordinates. The accessory is supplied with coordinate and nonius scales – the auxiliary scales to make measurements more precise.
The scale is compatible with the following microscopes:
- Levenhuk 2S NG Monocular Microscope
- Levenhuk 3S NG Monocular Microscope
- Levenhuk 5S NG Monocular Microscope
- Levenhuk 7S NG Monocular Microscope
- Levenhuk Rainbow 2L PLUS Orange Microscope
- Levenhuk Rainbow 50L PLUS Orange Microscope
The installation is not recommended for microscopes that have plastic bodies as damage to the microscope may occur.
| Specifications | |
| Movement range along X axis, mm | 0–57 |
| Movement range along Y axis, mm | 0–30 |
| Measuring scale division value, mm | 1 |
| Distance between the dowel pins, mm | 35±0.1 |
| Distance between the dowel pins and the stage screw, mm | 17.5±0.1 |
| Dowel pin diameter, mm | 3 |
| Stage screw thread size | M4 |
| Scale material | metal |
| Handle material | plastic |
